Disassembling Rear Brake Master Cylinder

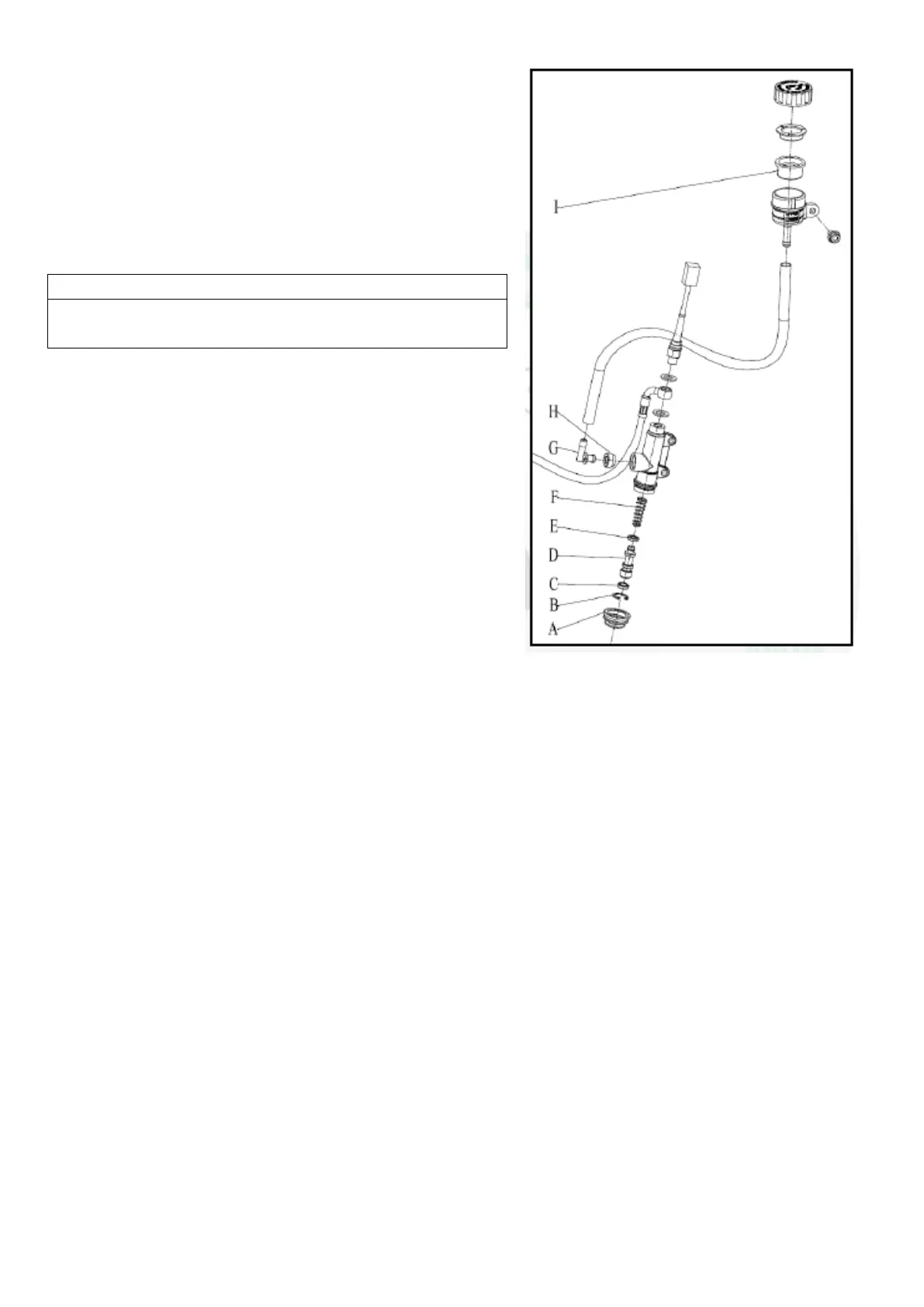

●Remove the rear brake master cylinder (see “Disassembling Rear
Brake master cylinder” in the “Brake” chapter).
●Remove the connector [H] and O-ring seal [H].
●Slide out the dust cover [A]
●Remove the snap spring [B].
Special tool—inside circlip plier:
●Take the piston assembly [D] and reset spring [F].
Note
Do not remove the cup [C] and cup [E] from the piston, because
they are damaged when removed.
●Replacing:
Dust cover [A]
Snap spring: [B],
Piston assembly [D],
Ring seal [H],
Diaphragm: [I].
