Front Shock Absorber
Disassembling Front Shock Absorber
●Removing:
Front wheel (see “Wheel/Tire”—“Disassembling Front Wheel”),
Front fender (see “Frame”—“Disassembling Front Fender”)
Front calipers (see “Brake”—“Disassembling Front Calipers”)

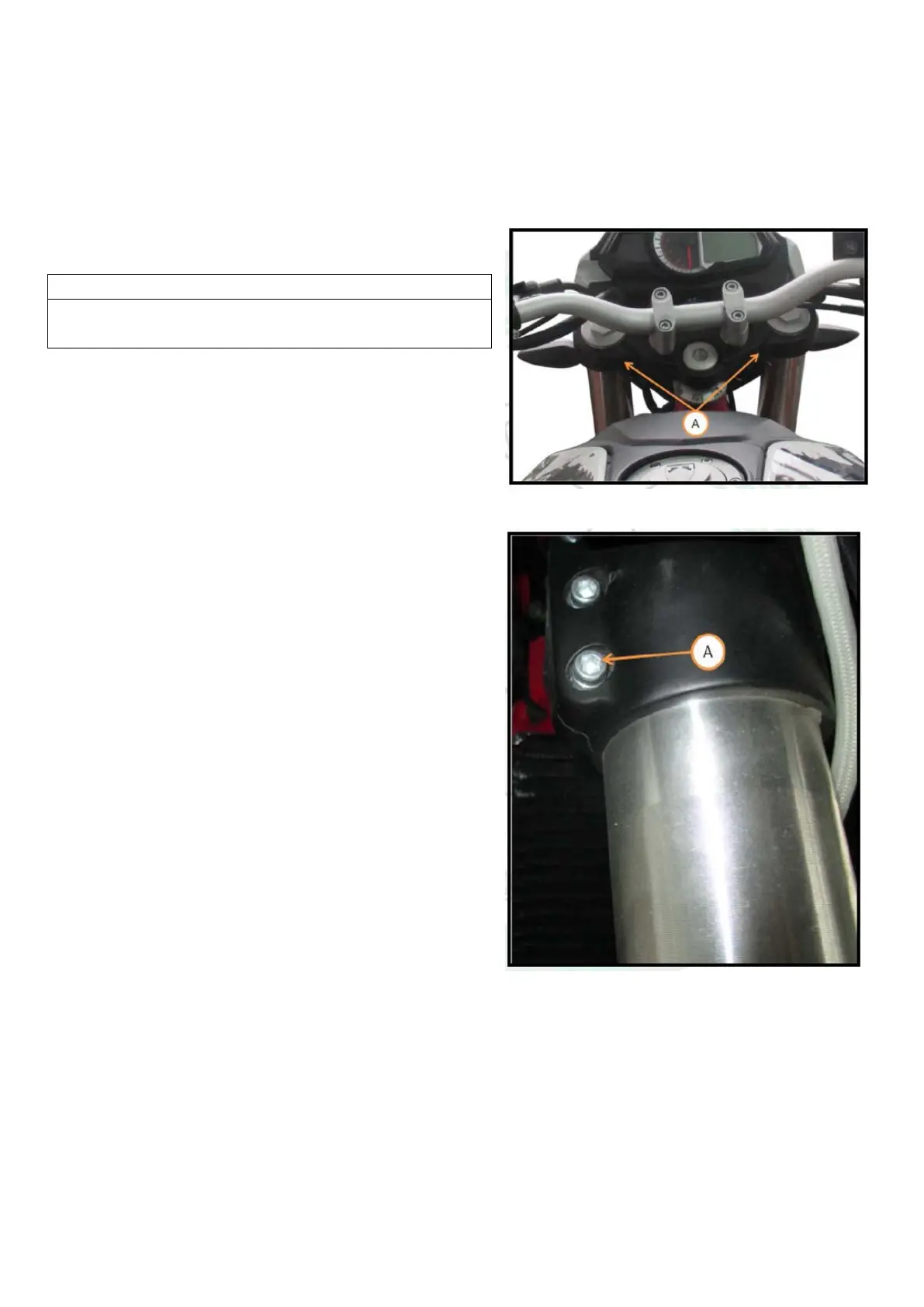

★Before removing the front shock absorber installing seat, remove
the upper front fork clamping bolt [A]
Remark
○Remove the head cover after the front fork clamping bolt is
disassembled.
●Disassemble the front shock absorber clamping bolt at the upper
side and front shock absorber clamping bolt [A] at the lower side.
●Turn the front shock absorber installing seat down to remove it.
