Wheel (Rim)

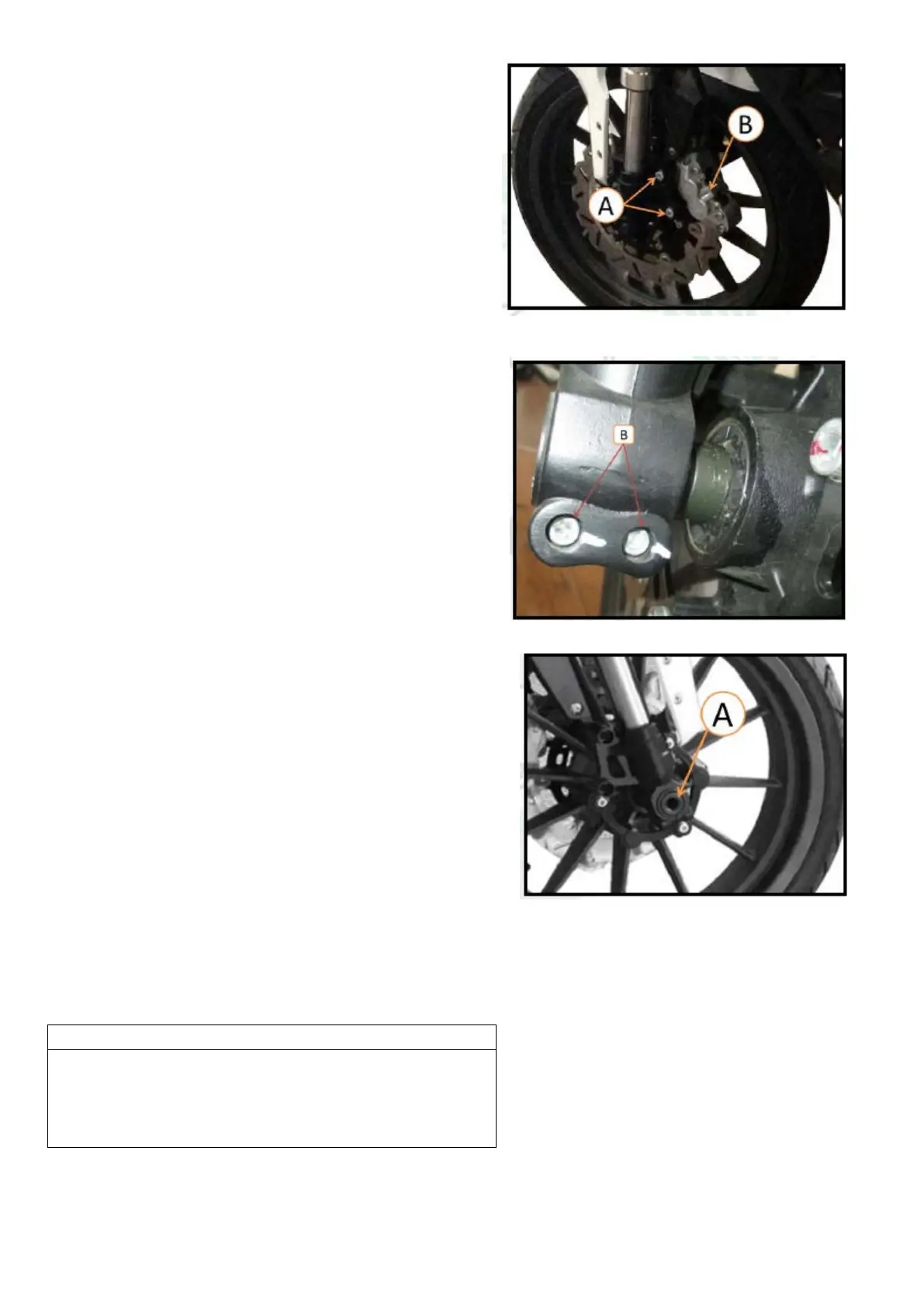

Disassembling Front Wheel
•Disassemble:
Front calipers mounting bolt [A]
Front calipers
•Loosen:
Shaft tightening bolt [B] (right side),
Front shaft [A],
• Disassemble the fairing at the lower part (see
“frame”—“disassembling fairing”).
• Lift the front wheel from the ground using a jack.
Special tools—jack and jack accessories:
• Disassemble shaft, pull out shaft to the right, and separate front
wheel from front fork.
Notes
Please do not place the motorcycle in the side direction or
press wheel against brake disc, otherwise, brake disc may be
damaged or deformed. Please place wood blocks below wheel,
to prevent brake disc from contacting the ground.
6-9
To Next Page
