Checking Accuracy of Head Lamp
●Check the accuracy of head lamp beam.
★If the headlight beam lights up one side instead of straight front,
adjust the beam.
Adjust the beam of front head lamp correctly according to the
following steps:

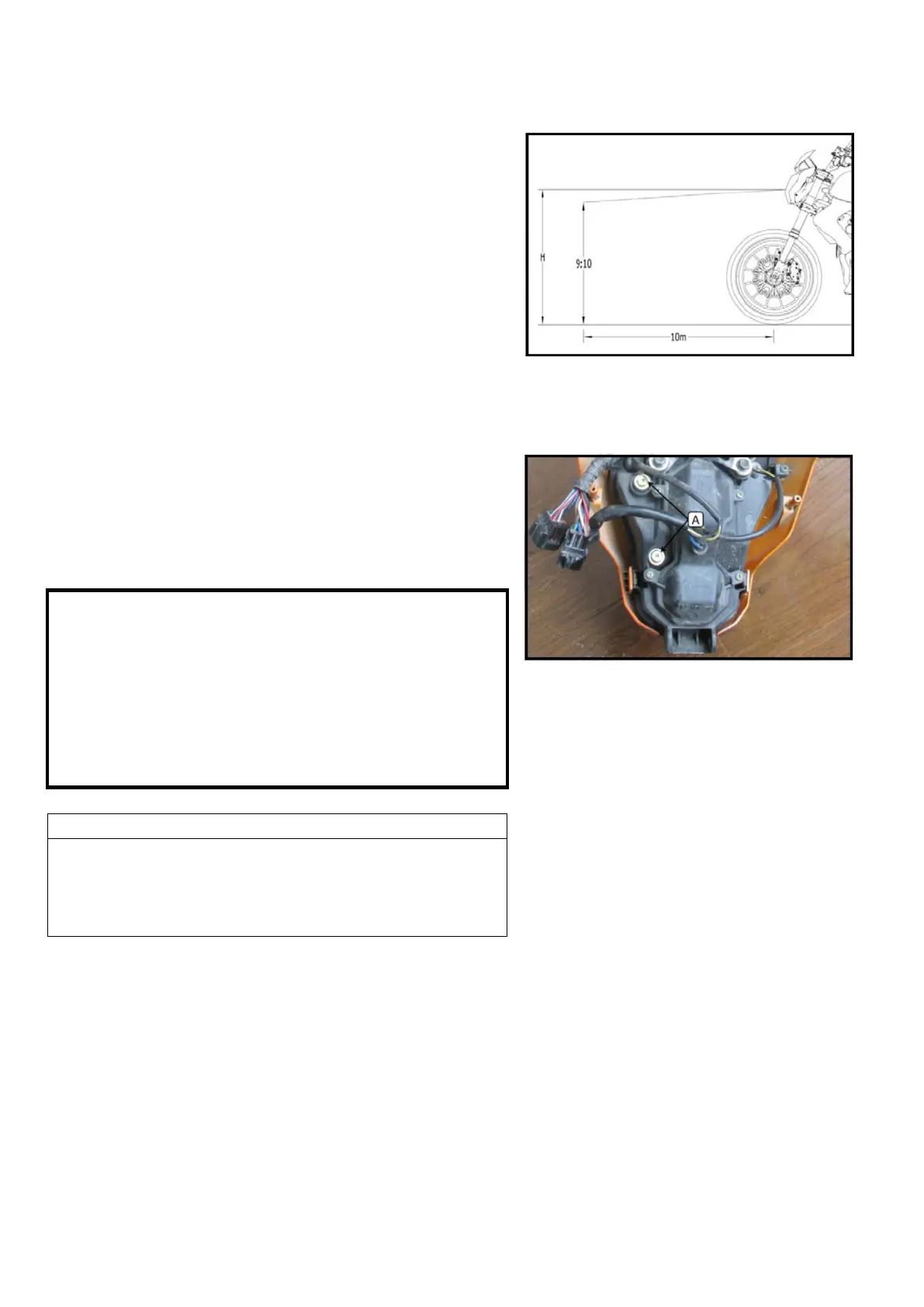

Park the motorcycle about 10 meters away from the upright wall on
the completely flat ground. Fig. A
Ride the motorcycle and sit at the rider position.
Make sure that the highest point of beam is lower than 1/10 of
horizontal axis of head lamp if the wall is lighted.
If the beam does not fall within these scopes, make some adjustment
to maintain it at the correct position.
Adjustment of Head Lamp Beam
●Remove the inner cover (see “Disassembling Inner Cover” in the
“Frame” chapter).
●Turn the adjusting screws [A] in two head lamps inward or
outward until the beam lights up the front straightly.
★If the lighting position of head lamp beam is too low or too high,
adjust the vertical beam.
Rotating screw at the top left corner
If the screw is rotated counterclockwise, the beam will be lowered
If the screw is rotated clockwise, the beam will be risen
Rotating screw at the top left corner
If the screw is rotated counterclockwise, the beam will light up the
left side
If the screw is rotated clockwise, the beam will light up the right
side
Remark
○When the motorcycle is supported by its wheels and someone
rides on the motorcycle, the brightest point shall be slightly lower
than the horizontal line after opening the high beam. Adjust the
angle of head lamp in accordance with the local regulations.
2-45
