Chapter 5 Installation
Mini-Switch LB 471
48

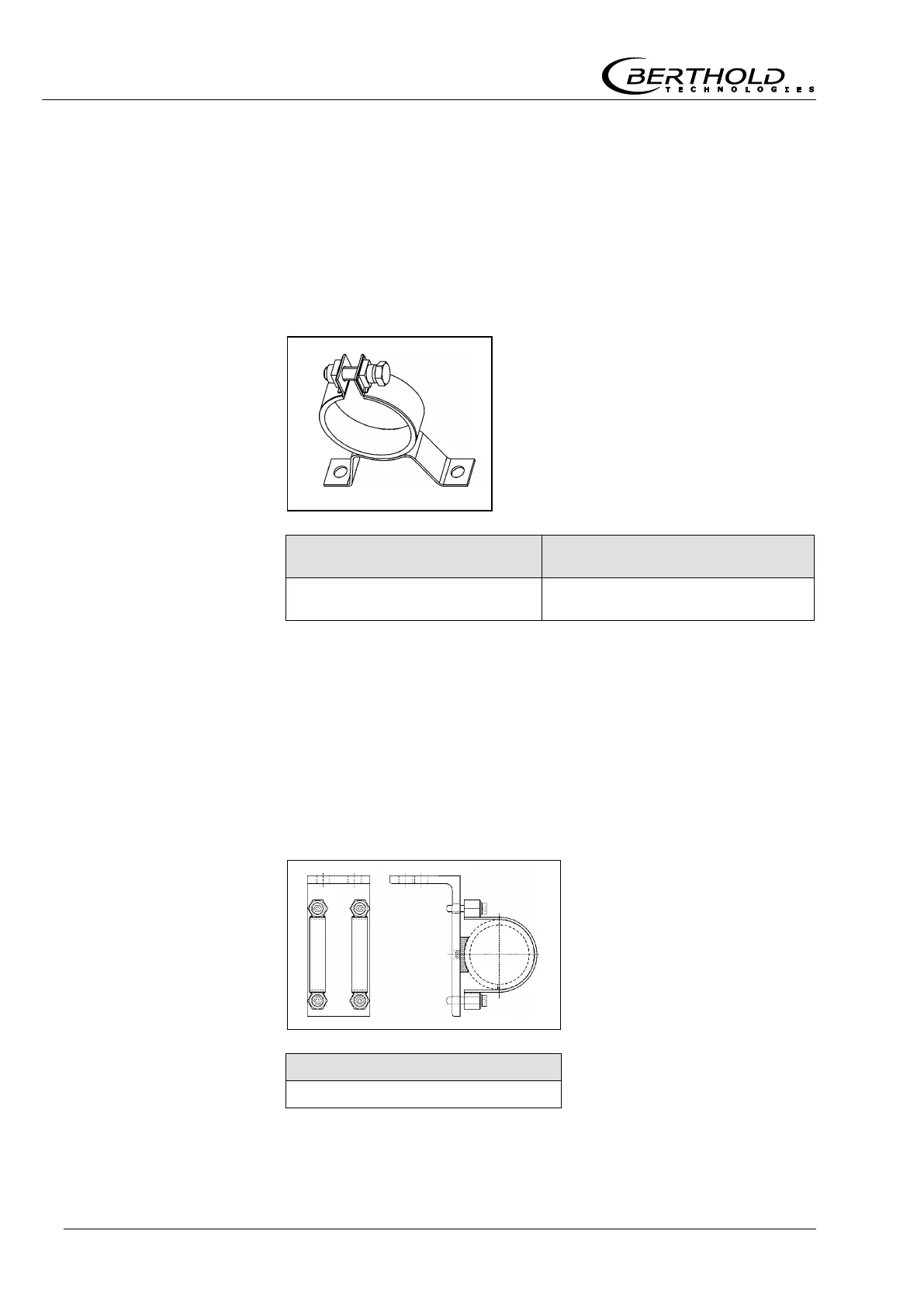

5.2.1 Fastening Clamps for GM Detectors and NaI
Counters
Stainless steel clamps are available to install the detector. The
dimensions of the clamps are shown in the technical drawings in
the Appendix. The technical drawing with dimensions is shown on
page 123.
Clamps for detector without
water cooling
Clamps for detector with water
cooling
ID-NO 31346
(1 set= 2 clamps)
ID-NO 31347
(1 set = 2 clamps)
5.2.2 Stainless Steel Detector Holder
(Alternative)
A sturdy stainless steel holder may be used instead of clamps. The
holder comprises an angle on which two clamps have already been
installed. You can fix the holder on a bracket either with screws
or through welding. Due to the plastic rings, the same holder
may be used for detectors with or without water cooling. All metal
parts of this holder are made of stainless steel. The technical
drawing with dimensions is shown on page 124.
Holder for detector complete
ID-NO 39246
Figure 7:
Clamp for GM detectors
and NaI detectors
Figure 8:
Detector holder
