Chapter 15 Technical Drawings
Mini-Switch LB 471
140

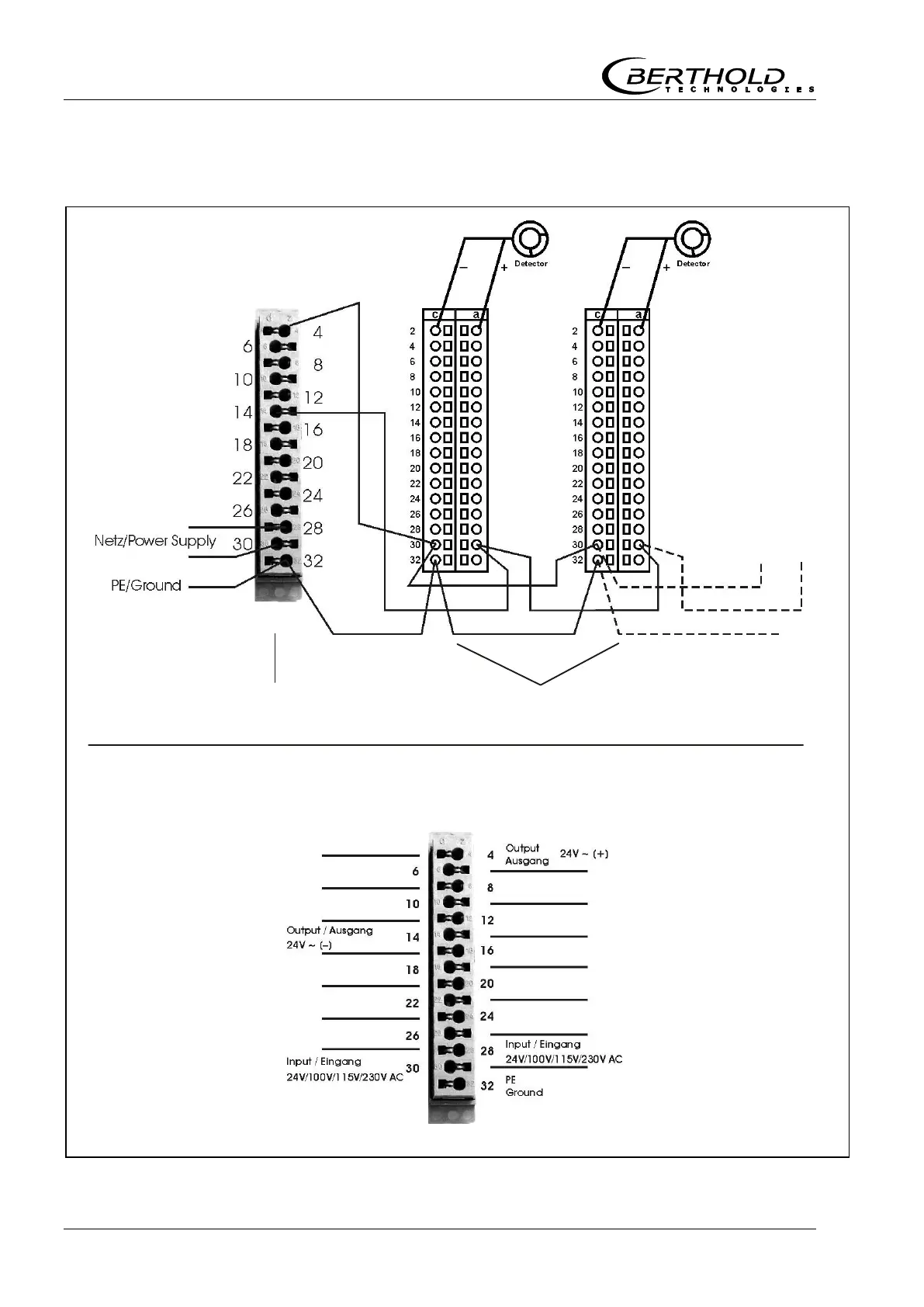

15.6.4 Connection Diagram for Power Supply Unit in 19" Rack
Power Supply
Netzteil
Level Switch LB 4710
Grenzschalter LB 4710
Terminal Block for Power Supply
Steckerleiste für Netzteil
