Chapter 5 Installation
Mini-Switch LB 471
54
5.2.5 Installation of Super-Sens
with Axial Irradiation
The axial radiation window, located in the center of the flange,
covers the sensitive area of the detector. The radiation window
must face the source.

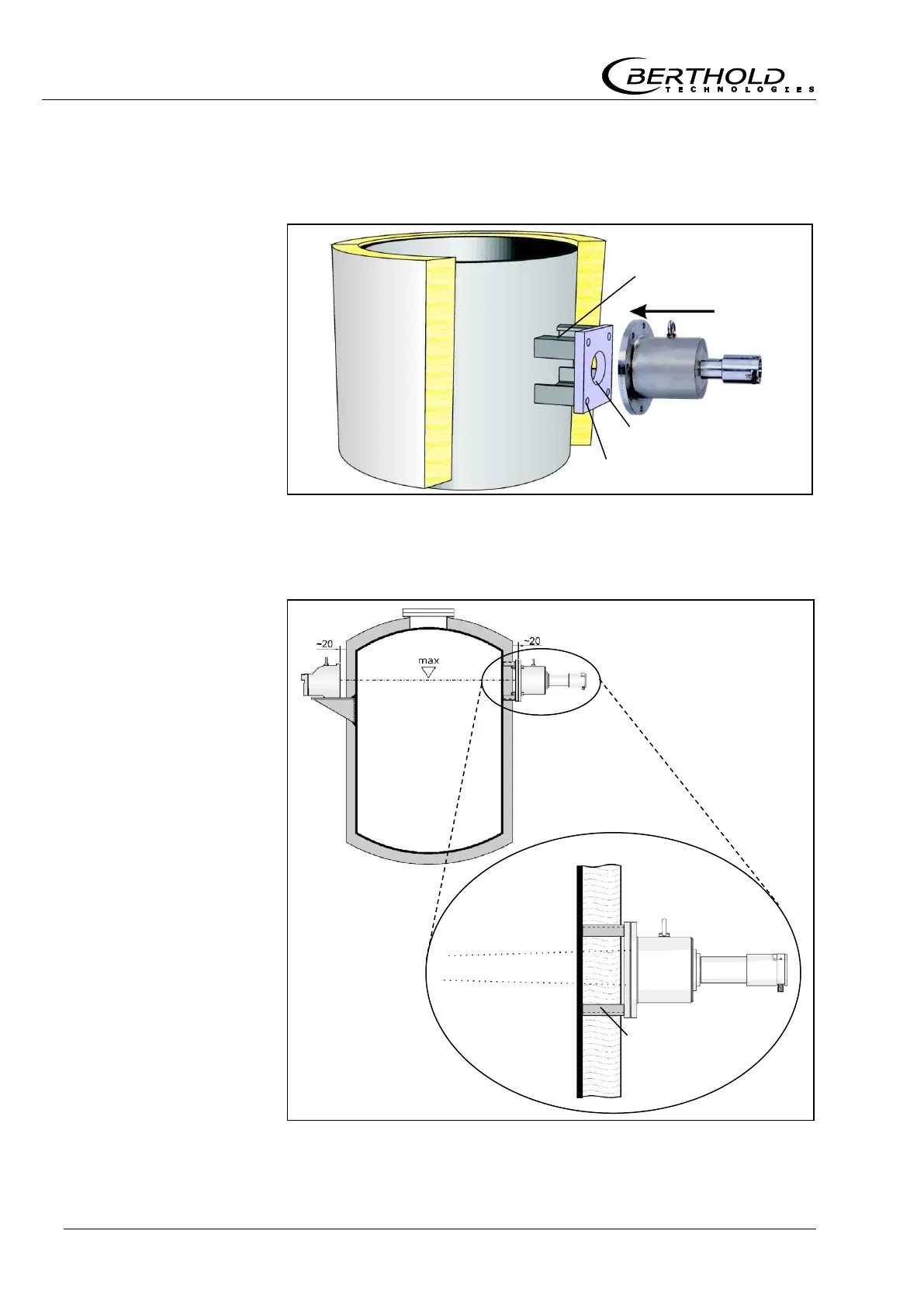

Figure 19:
Installation with
Super-Sens detector
Figure 20:
Super-Sens mounted
on a container
Square hole distance: 198 mm
Diameter: >160 mm
Length of angle iron
depending on thickness
of insulation
Bracket
provided by
customer
Radiation path
