6.1.3 Water Cooling for GM Detector

Cooling nozzle

Water cooling

Locking screw
1
Push the cooling jacket over the detector.
Make sure that you position the cooling nozzle such that you
later have unimpeded access to install the water feed pipes.

Water cooling

GM detector
2
Tighten the locking ring

for the water cooling.

Locking ring

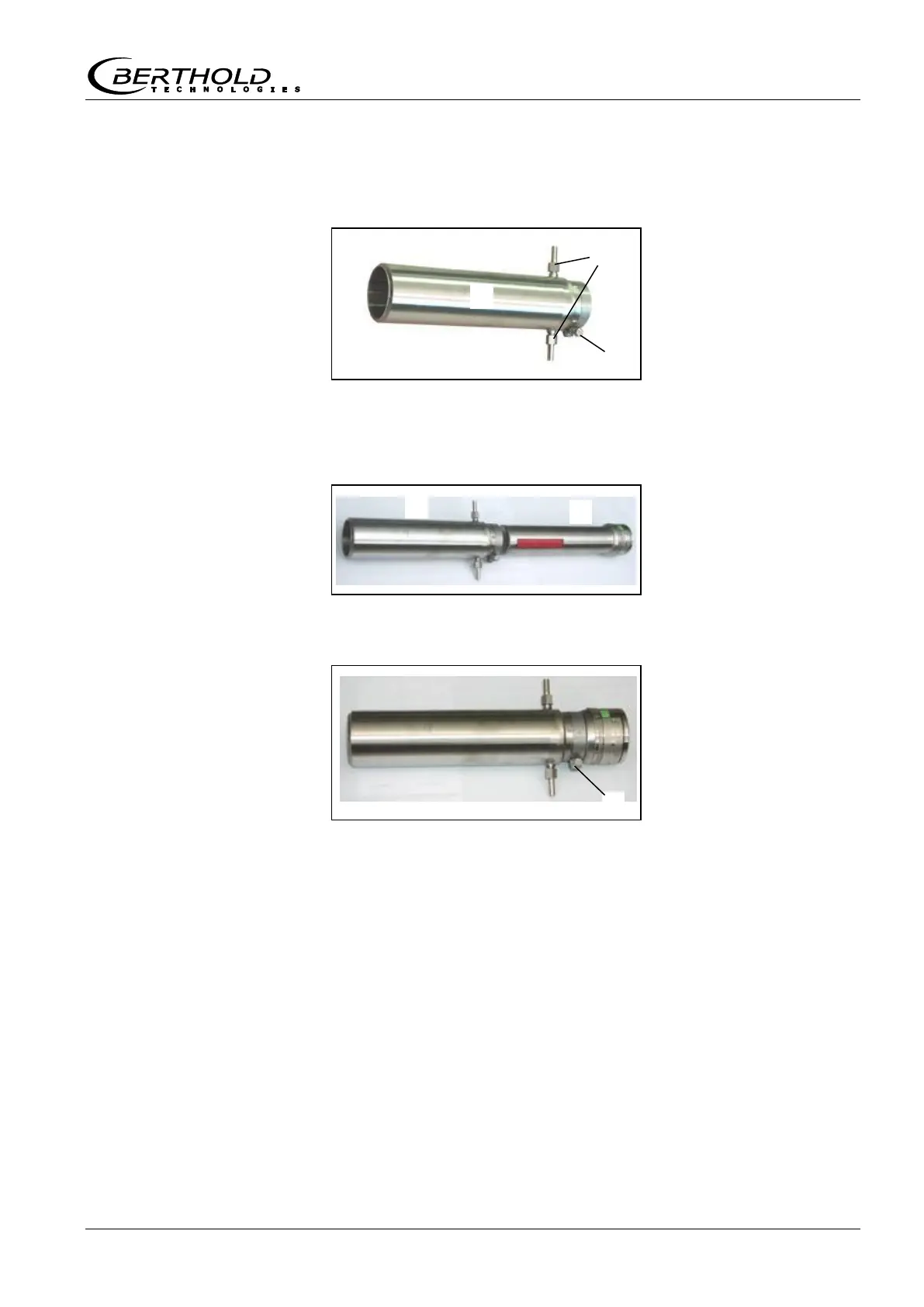

Figure 29:
Water cooling for
GM detector
Installing the
water cooling
Figure 30:
Water cooling with
GM detector
Figure 31:
Water cooling
installed on
GM detector






