Chapter 5 Installation
Mini-Switch LB 471
Installation with detector holder (chapter 5.2.2)
1
Make a suitable bracket for the container.
2
If the holder is not welded onto the bracket, drill 2 holes
(d=17 mm) for the holder in the bracket, using the drawing be-
low.
3
Install the bracket either directly on the container or on a stur-
dy girder.
4
Install the holder with the detector on the bracket.

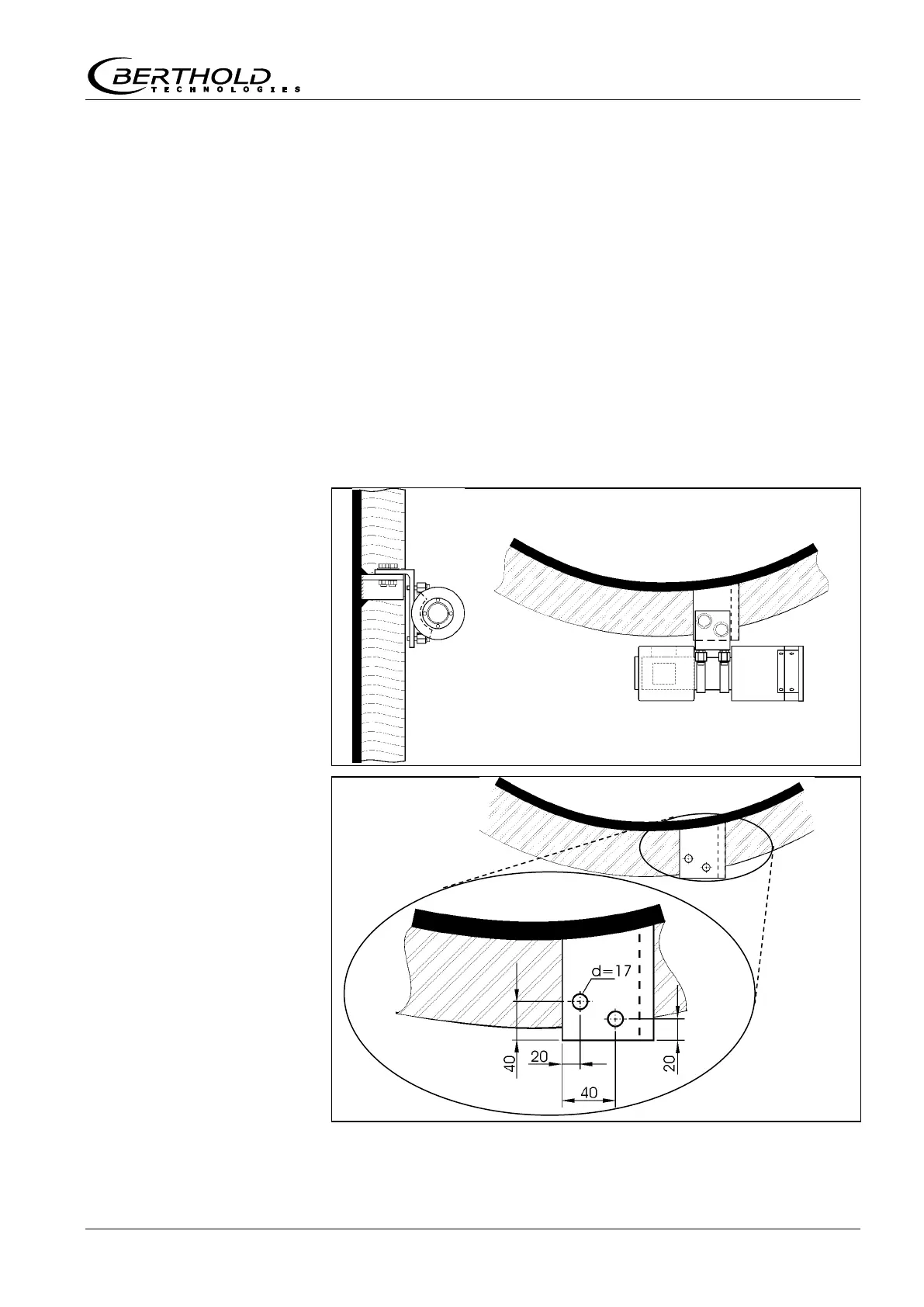

Figure 17:
Installation proposal
with detector holder
Figure 18:
Bracket with drilled holes
for detector holder
