Chapter 5 Installation
Mini-Switch LB 471
52
Installation with clamps
1
Make a suitable bracket for the container.
2
Using the drawing below, drill 4 holes (d=11 mm) into the
bracket for the clamps.
3
Install the bracket either directly on the container or on a stur-
dy girder.
4
Install the detector on the bracket using clamps.

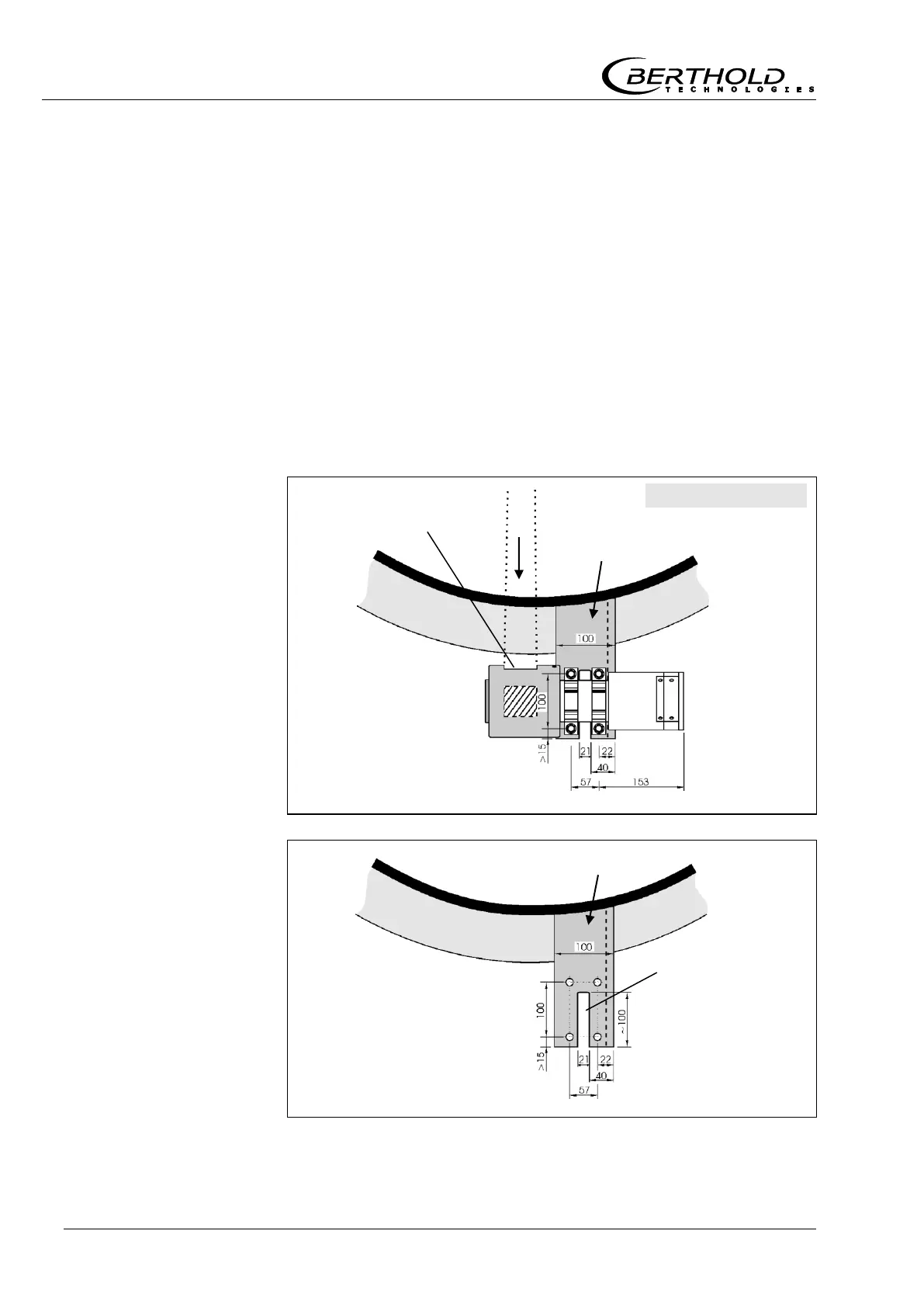

Figure 16:
NaI detector
mounted on bracket
View from above
Radiation path
Radiation path
Bracket
Slot is required only
when a water cool-
ing is used.
Bracket
