Chapter 5 Installation
Mini-Switch LB 471
Installation
1
Make a suitable bracket for the container.
2
Using the drawing below, drill 4 holes (d=18 mm) into the
bracket for the flange.
3
Install the bracket either directly on the container or on a stur-
dy girder.
4
Install the detector on the bracket using the flange.
Heat conduction above the bracket or heat radiation from the con-
tainer may destroy the detector.
Heat conduction has to be reduced using a heat-resistant sealing
between bracket and flange of the Super-Sens detector.

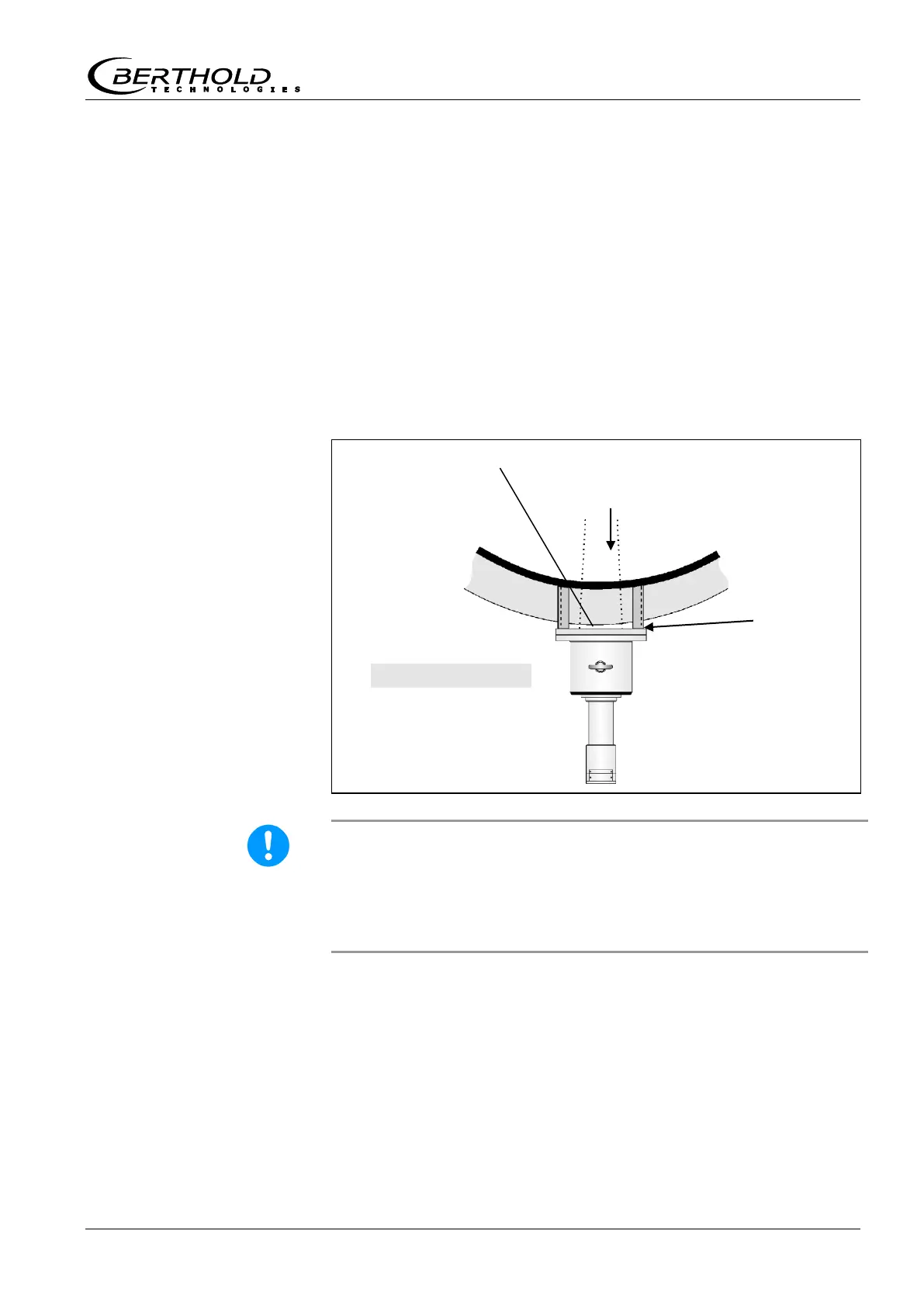

Figure 21:
Super-Sens mounted
on a container
