Chapter 5 Installation
Mini-Switch LB 471
50
Installation with clamps
1
Make a suitable bracket for the container.
2
Using the drawing below, drill 4 holes (d=11 mm) into the
bracket for the clamps.
3
Install the bracket either directly on the container or on a
sturdy girder.
4
Install the detector on the bracket using clamps.

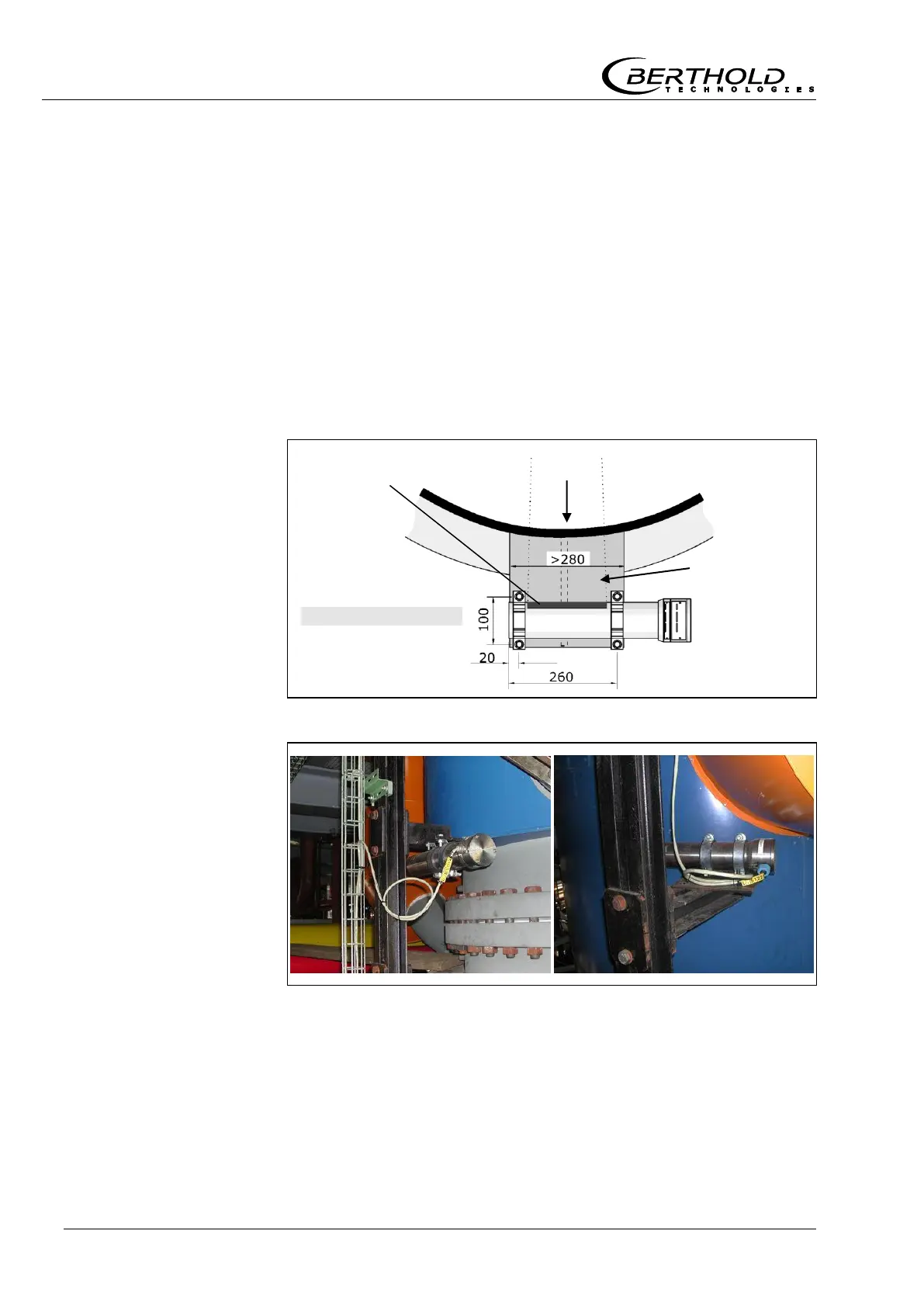

Figure 11:
GM detector
mounted on bracket
Figure 12:
Examples of
installed detectors
View from above
Red marking strips for
counter tube position
Bracket
Radiation path
