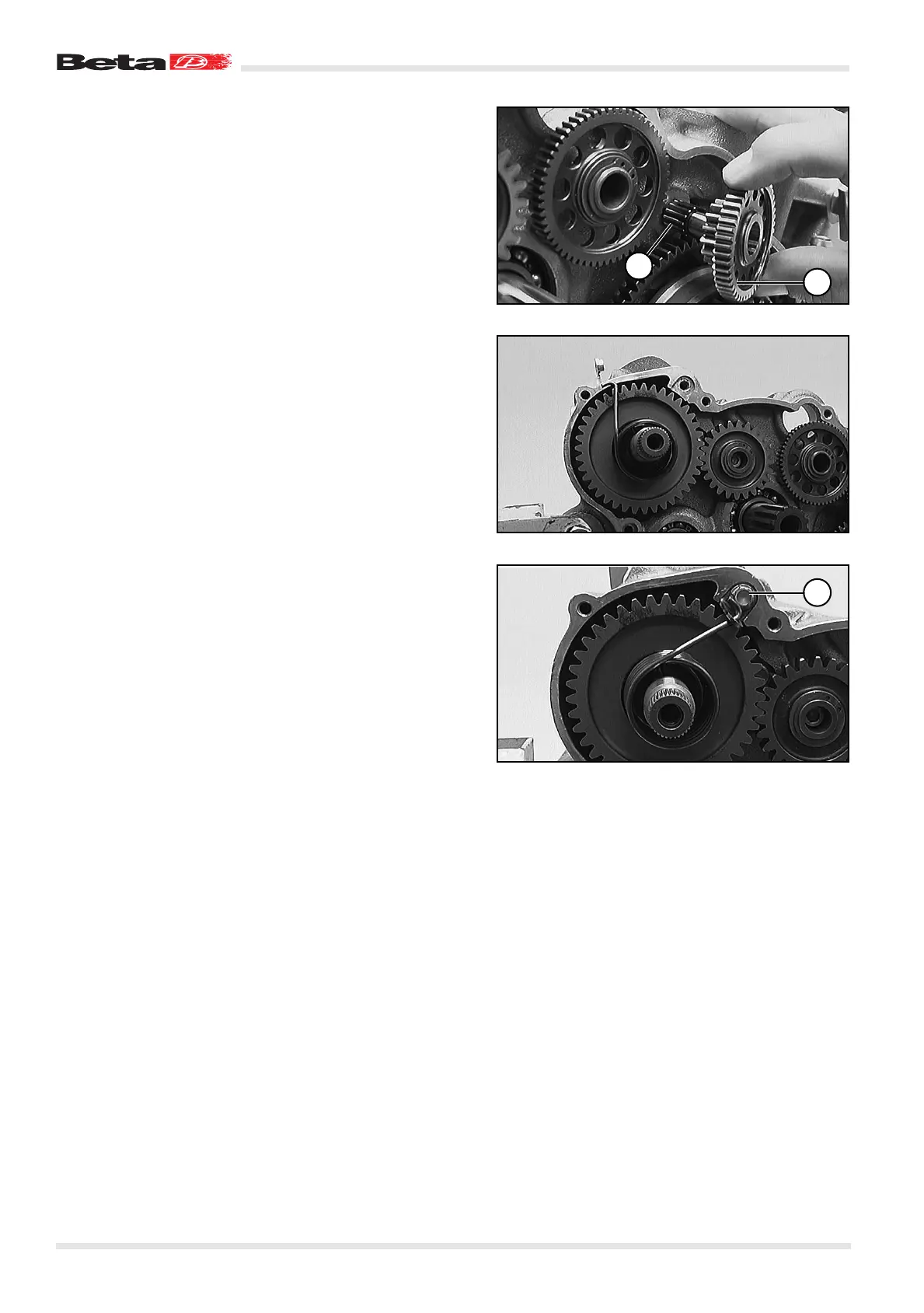

– Insert the support pins into the crankcase holes. Fit needle
roller cage 1 and double gear 2.
– Insert the preassembled kickstart shaft into the bearing hole
so that the starter coupling is located behind the release plate.
– Attach the spring link to the starter spring, apply Loctite 243 to
the thread of screw 3 (M6x12), preload the starter spring by
turning it about 45 degrees clockwise, fasten the spring link
with the screw and tighten to 10 N·m.
– Position the starter spring so that the distance from the kick-
start shaft does not change.
Exercise extreme caution when fitting the spring as it could
come off and cause personal injury.
