If necessary, follow these steps to overhaul the steering seats:

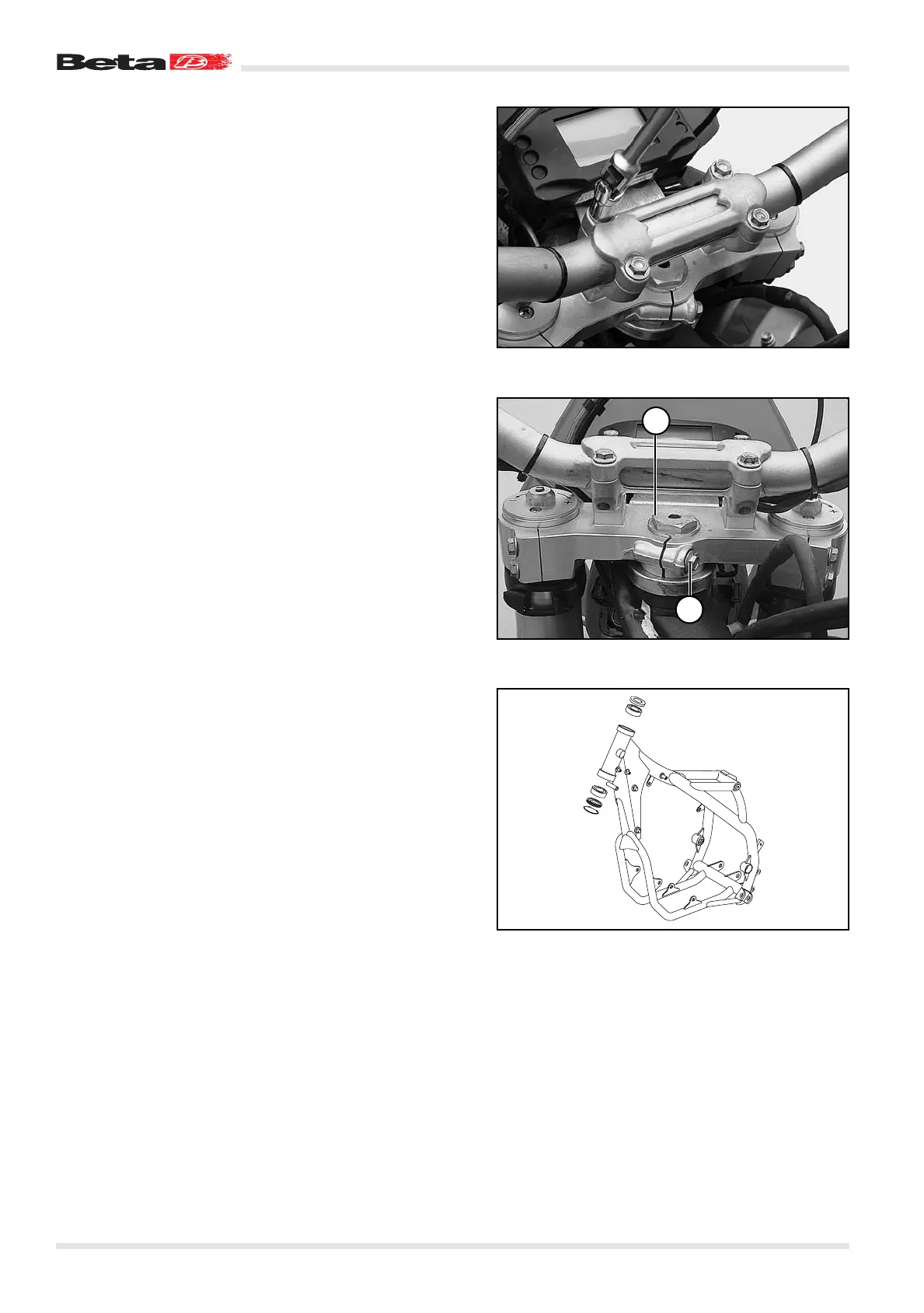

– Unscrew the four screws as shown in the figure and remove
the handlebars.
– Unscrew screws 1 and 2 and remove the two brackets from
the head tube.
Checking the head tube seats
Check the seats for wear. If necessary, remove them using a
suitable drift.
– For each seat, use a drift and a hammer to alternately hit the
grooves in the head tube to the left and right of the seat.
– Use the drift from above to remove the lower seat.
– Use the drift from below to remove the upper seat.
6
Workshop manual RR 4T - 400 - 450 - 525
1
2
