DIGITAL SPEEDOMETER
(RR4T USA RS4T USA version)
CYCLING THROUGH THE FUNCTIONS
It is always possible to cycle through the different functions while
the vehicle is stationary or in motion. Pressing button A displays
the following functions in succession:
TIME - LAP - TOD - TD - COUNTDOWN
BUTTON FUNCTIONS
The functions of the buttons change with the function currently
displayed:
1 - TIME T≥ 3” and Vel=0 activates time setting mode -
T<3” or Vel>0 cycles through functions
2 - LAP T≥ 3” resets LAP and TD - T<3” cycles through
functions
3 - TOD T≥ 3” and Vel=0 enables setting of circumfer-
ence, unit and number of pulses for each wheel turn - T<3” or
Vel>0 cycles through functions
4 - TD T≥ 3” resets LAP and TD - T<3” cycles through
functions
5 - COUNTDOWN T≥ 3” and Vel=0 enables setting of
countdown - T<3” or Vel>0 cycles through functions.
T = Time during which button is pressed down
Vel = Speed of vehicle
CURRENT SPEED FUNCTION
This information is constantly displayed together with an indica-
tion provided by a graphic bar. The default unit is Mph. To
change the unit, press the button to access the Setup menu and
select km/h. When Mph is selected, no indication is provided as
to which unit is currently displayed.
TIME FUNCTION (TIME)
T≥ 3” and Vel=0 activates time setting mode
T<3” or Vel>0 cycles through functions
The time can only be set while the vehicle is stationary.
Press and hold button C or D for more than 3 seconds to enter
the time setting mode.
Once the time has been set, press the button for about 3 sec-
onds to go back to the standard operating mode. The Time pa-
rameter is displayed in the 0-12 format if Mph has been select-
ed, and in the 0-24 format if Km/h has been chosen. When in the
setting menu, if no buttons are pressed for 20 seconds the sys-
tem will automatically return to the standard operating mode.
Moving off (Vel > 0) while the setting mode is activated causes
the system to automatically return to the standard operating
mode.
A
AUTOMATIC LAP FUNCTION (LAP)
T≥ 3” resets LAP and TD
T<3” cycles through functions
This information represents the actual riding time as-
sociated with the TD parameter. It is an automatic
counter which is activated by the first pulse generated
by the speed sensor and stops 3 seconds after recei-
ving the last pulse from the sensor. The counter for
this parameter can be reset while in LAP mode by
pressing the A button for about 3 seconds until 00’00”
is displayed. The LAP function can be reset while the
vehicle is stationary or in motion and also causes the
reset of the TD parameter.
MILEOMETER FUNCTION (TOD)
T≥ 3” and Vel=0 enables setting of circumference, unit
and number of pulses for each wheel turn
T<3” or Vel>0 cycles through functions

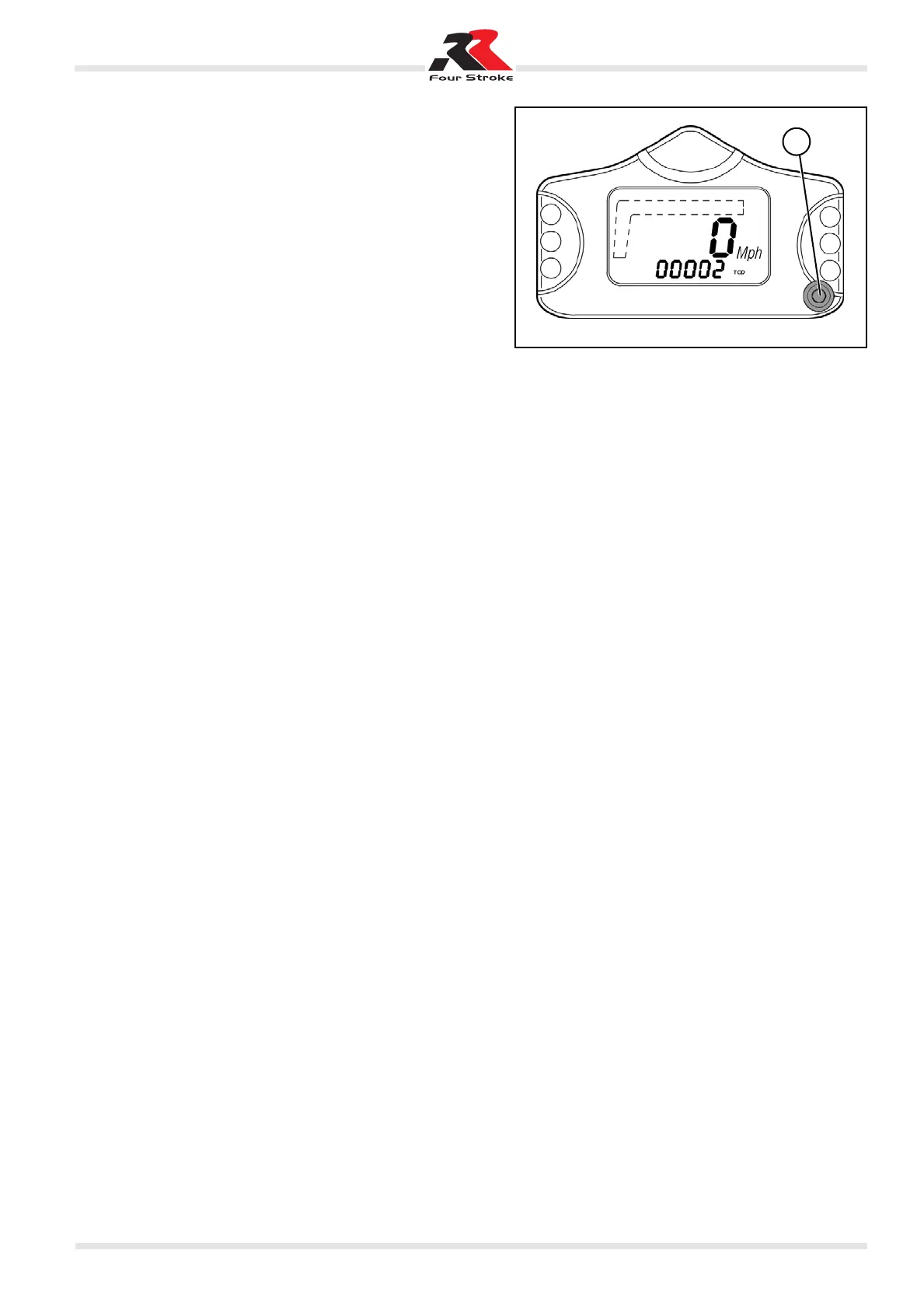

The information is displayed together with the TOD
caption. Depending on the selected unit, the informat
is displayed in Mph (default) or Km/h and is perma-
nently stored in non-volatile memory. It is not possible
to reset this information during normal operation of
the instruments.
