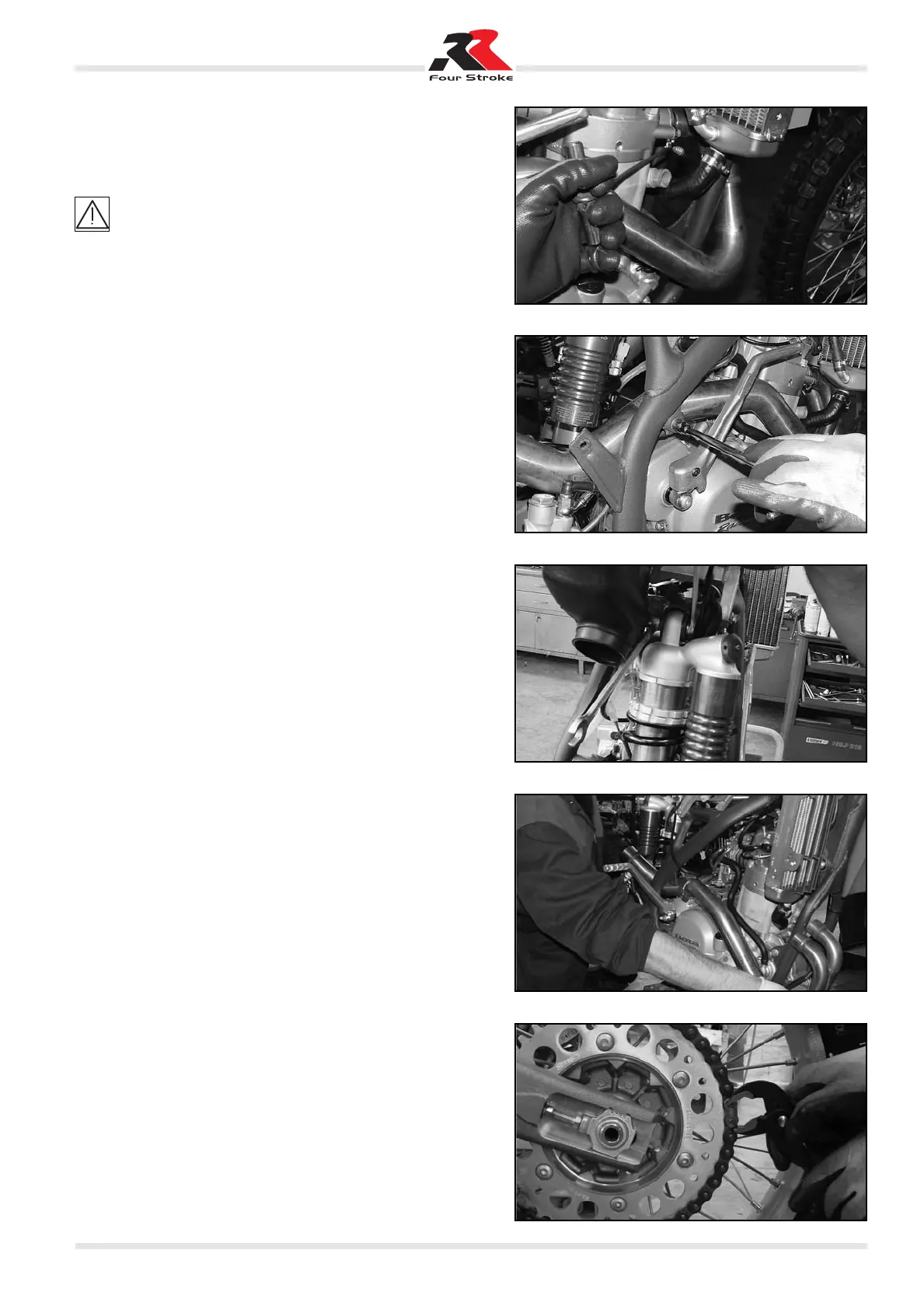

Disengaging the exhaust pipe
Release the two springs that support the exhaust pipe with the
cylinder
Take care to avoid hand injury.
Remove the screw that fixes the exhaust pipe to the frame.
Releasing the rear shock absorber
Disengage the shock absorber from the frame as shown in the
figure.
Removing the exhaust pipe
It is now possible to remove the exhaust pipe by pulling it to-
wards the front of the vehicle.
Removing the drive chain
Find the split link, move it onto the sprocket and remove the re-
tainer as shown in the figure. Undo the chain and remove it.
9
6 - Engine Release 01 Date 09/2007
