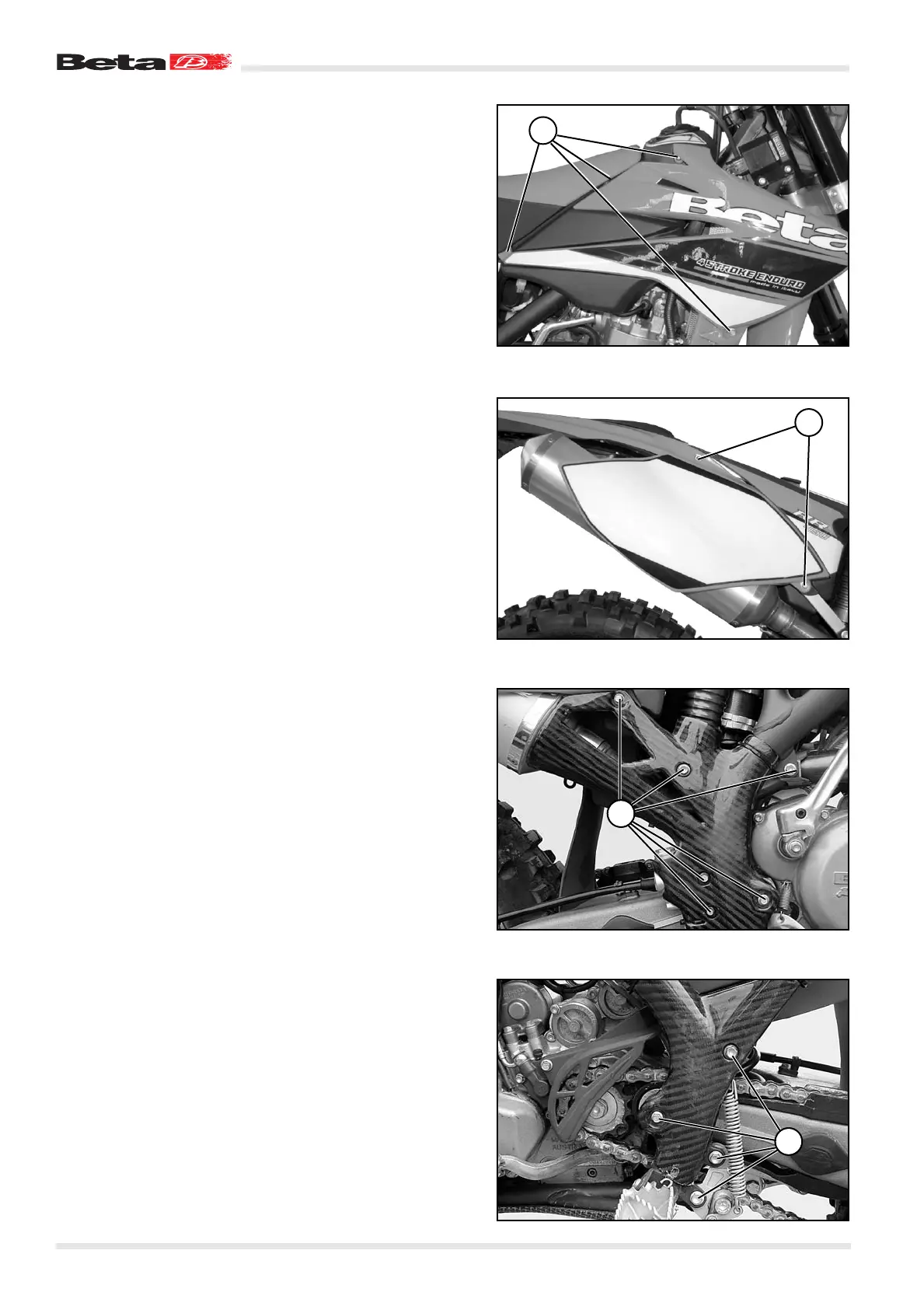

Removing the front side panels
Unscrew the eight fixing screws E (four on each side) and take
off the front side panels.
Removing the rear side panels
Unscrew the four fixing screws F (two on each side) and take off
the rear side panels. In addition to fastening the rear side pan-
el, the upper screw also fixes the saddle.
Removing the right-hand side bumper
Unscrew the six fixing screws G, remove the plastic clamp and
take off the right-hand side bumper (if present).
Removing the left-hand side bumper
Unscrew the four fixing screws H, remove the two plastic clamps
and take off the left-hand side bumper (if present).
Workshop manual RR 4T - 400 - 450 - 525
G
H
F
E
