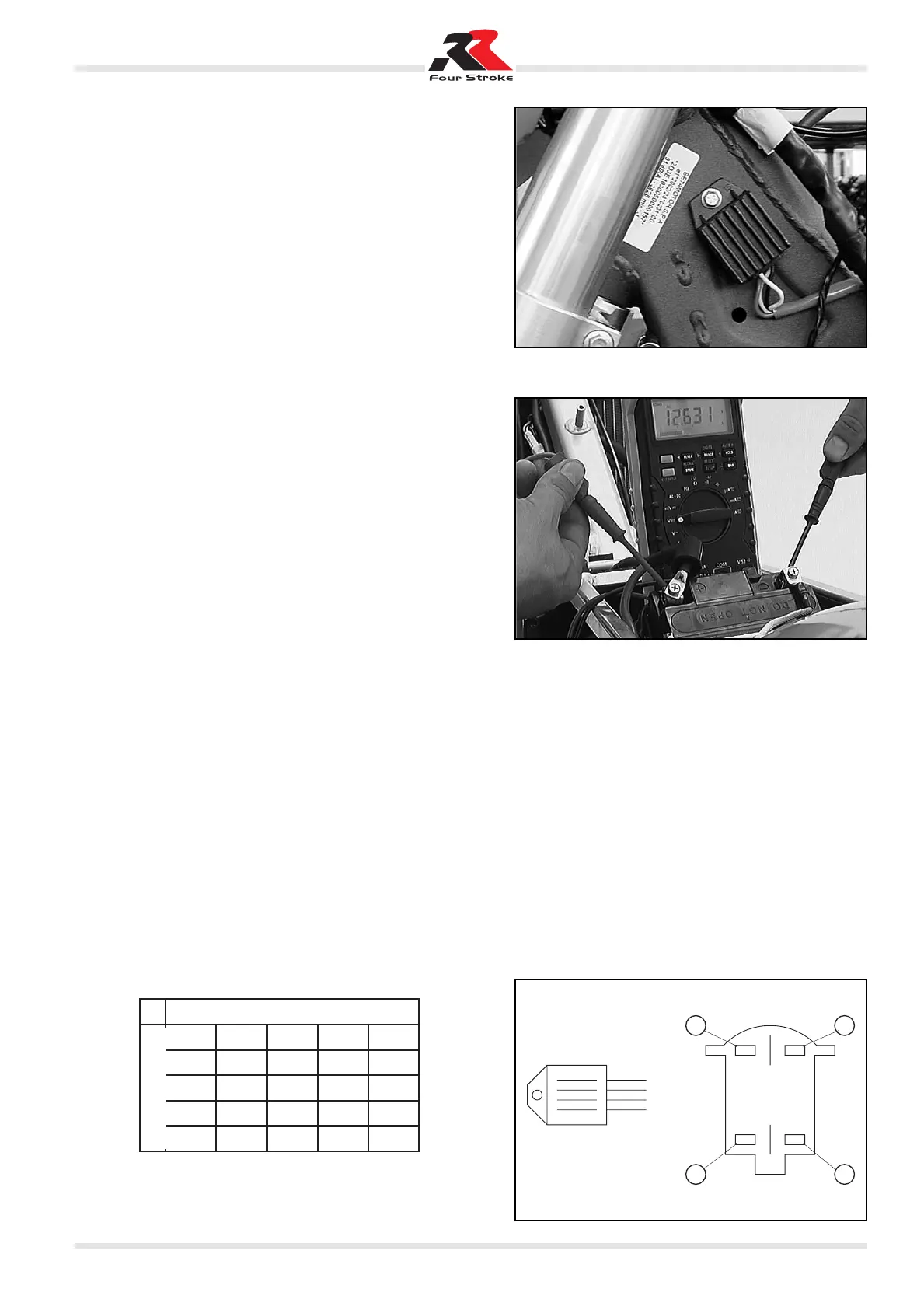

Checking the voltage regulators
If a regulator is suspected of being defective, it should be repla-
ced, if possible, with one that is known to be in working order.
Alternatively, take a few measurements to determine whether it
is operating properly:
While the engine is off, disconnect the regulator connector lo-
cated on the frame under the tank.
– Use a digital multimeter designed for measurements of up to
20,000 Ω.
Checking the charging voltage
NOTE: The following values should be regarded as valid only
when the battery is charged (minimum charge 90 per cent).
Start the engine and turn on the low beam.
Connect a voltmeter to the two battery connections.
Rev the engine to 5000 rpm and read the voltage.
Nominal value: 14.0 - 15.0 V
If the measured value differs considerably from the nominal va-
lue, follow these step:
– Check the plug between the stator and the regulator-rectifier
and the plug between the regulator-rectifier and the wiring
harness.
Check the stator.
Replace the regulator-rectifier.
1 2 3 4
1
2
3
4
/
/
/
/
Puntale ROSSO
Puntale NERO
= Corrisponte all’indicazione che fornisce
il tester quando i terminali
ROSSO e NERO non
sono in contatto tra di loro.
1 Red
2 Yellow
3 Black
4 White
1 2
34
11
11 - Electrical system Release 01 Date 09/2007
RED probe
BLACK probe
= Corresponds to the multimeter reading when
the RED and BLACK terminals are not in contact
with one another.
11_Inghilterra_059311 27-12-2007 18:59 Pagina 11
