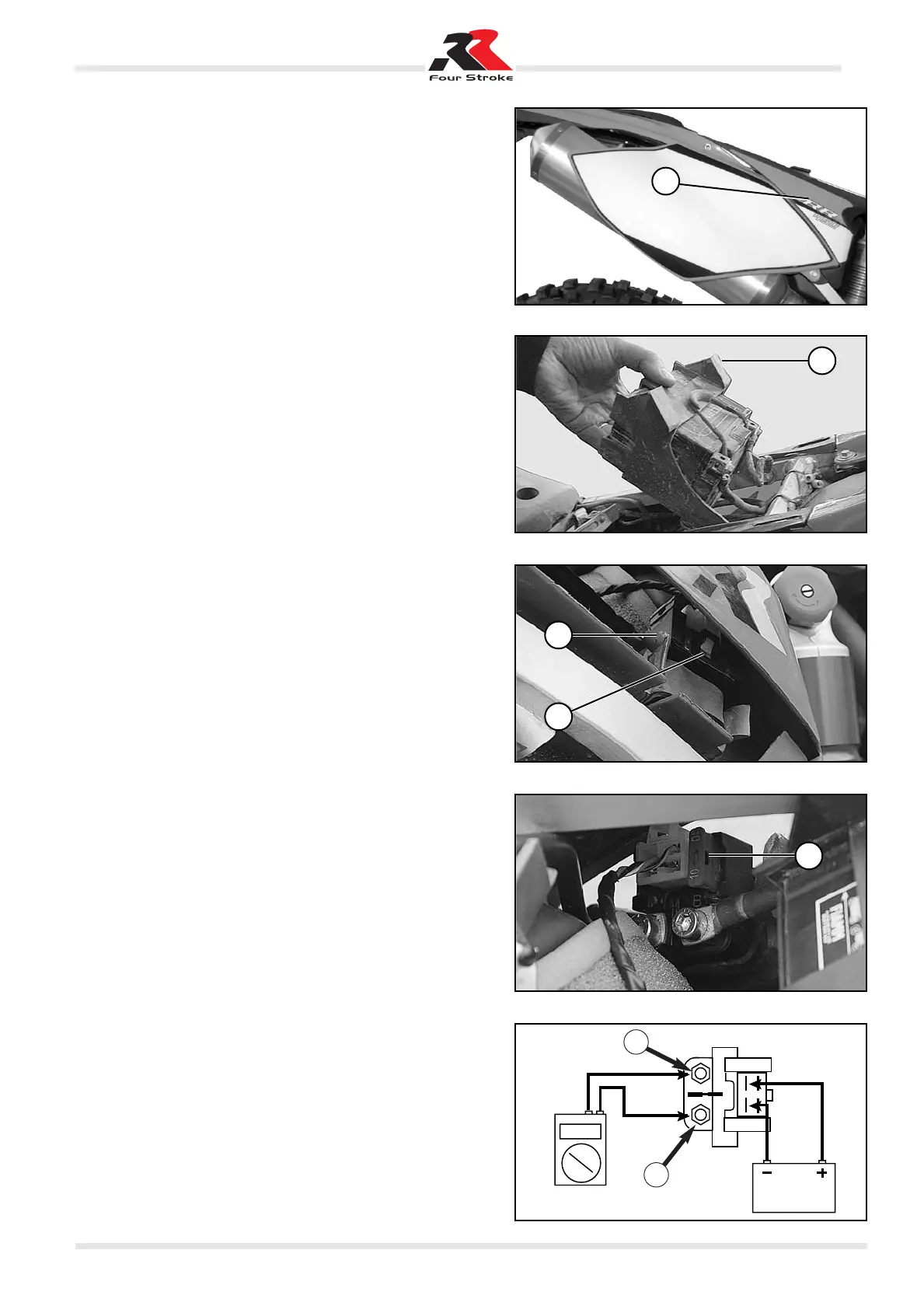

Main fuse
Fuse 3 is installed in starting relay 4 under right-hand side pa-
nel 5.
To gain access to the fuse, remove the saddle and lift swinging
support 6 to expose the battery.
The fuse protects the following users:
– Electric start system.
– Horn.
– Indicators.
– Instrument panel.
The starting relay also contains spare fuse 7 (10 A).
A blown fuse should only be replaced with another of the same
type.
Should the new fuse also burn out when fitted, proceed to check
the electrical system.
The fuse has a capacity of 10 amperes.
WARNING:
Do not on any account fit a fuse of greater power or attempt to
“fix” the damaged fuse. Unsuitable servicing could cause dama-
ge to the entire electrical system.
Checking the starting relay
– Disconnect the starting relay multiple plug.
– Disconnect the negative terminal from the battery and the two
wires from the starting relay.
– Connect the starting relay to a 12 V battery.
– Using an ohmmeter, check continuity between terminals C
and D.
Note: 0 Ω in working order
Note: ∞Ωdefective
NOTE: A slight click can be heard when the starting relay trips.
13
11 - Electrical system Release 01 Date 09/2007
3
6
4
7
5
