7 - Carburettor Release 01 Date 09/2007
Disassembling the carburettor
NOTE: The disassembly should be carried out in a clean work-
place with sufficient space to properly arrange all carburettor
components.

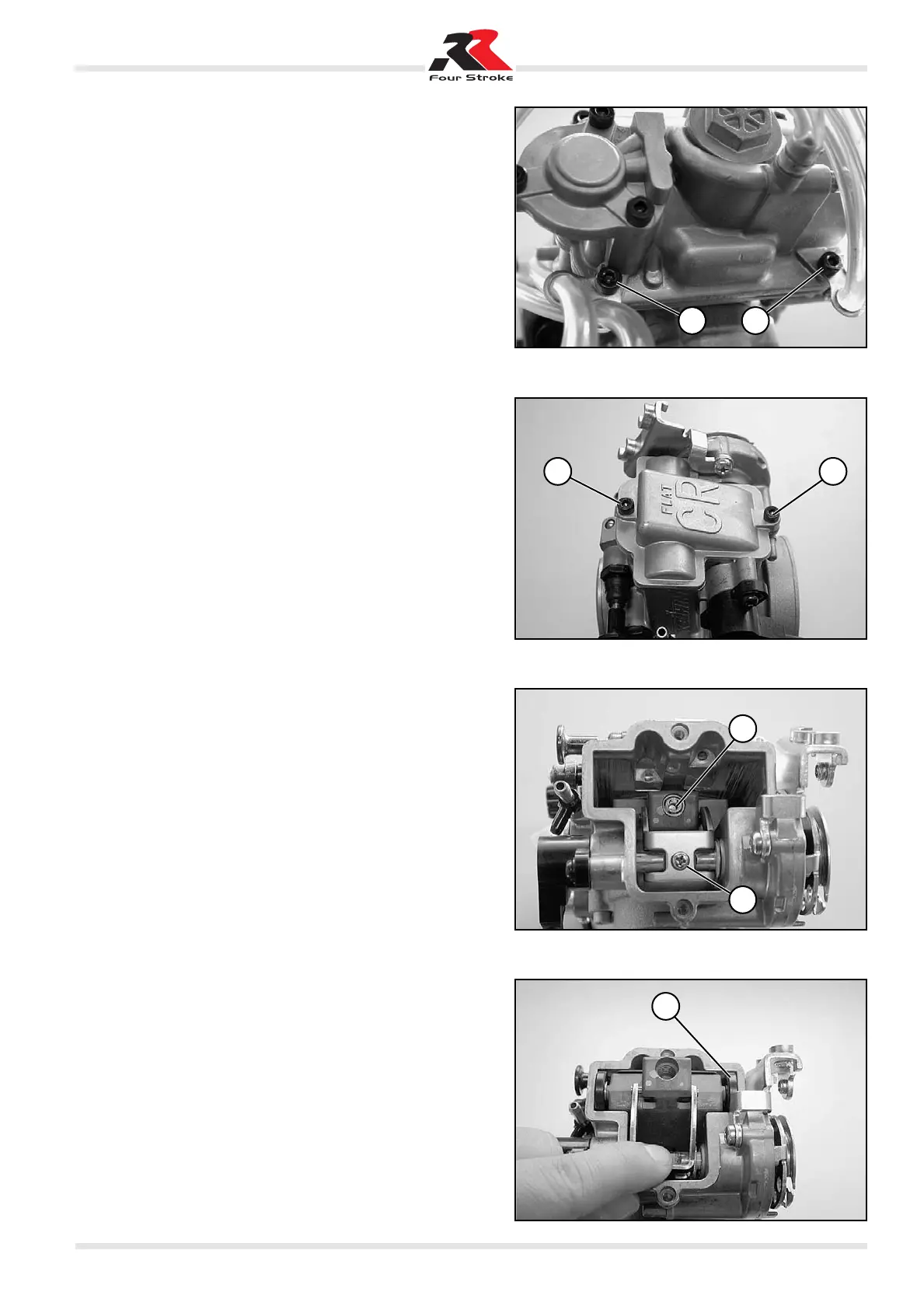

– Remove the carburettor and clean it of coarse dirt.
– Loosen the two screws 1 and remove all breather pipes from
the carburettor.
– Remove the two screws 2 and remove the throttle valve cov-
er from the carburettor with the related gasket.
– Remove screw 3 and pull the jet needle out of the throttle
valve.
– Remove screw 4.
– Pull up the throttle valve lever and remove the throttle valve
complete with roller 5 and the throttle valve plate from the car-
burettor.
1 1
2 2
3
4
5
