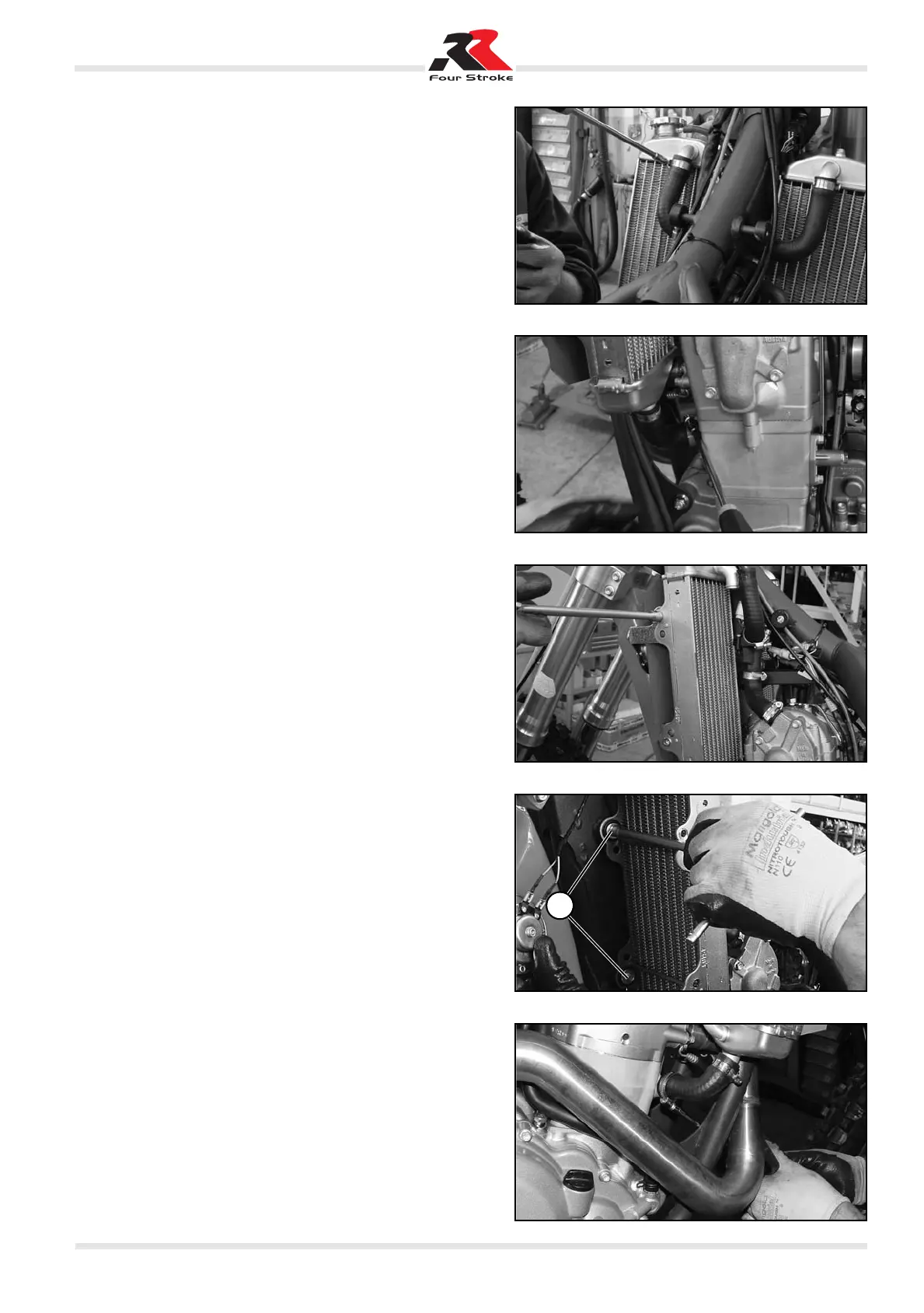

Removing the left-hand radiator
To remove the left-hand radiator, it is first necessary to discon-
nect the upper pipe after removing the clamp as shown in the
figure.
Subsequently remove the clamp as shown in the figure and re-
move the lower pipe.
Removing the horn
Remove the horn and the related bracket so as to facilitate the
removal of the plastic bumper.
Loosen the two screws 1 and remove the left-hand radiator.
Right-hand radiator - cylinder connecting pipe
Remove the clamp shown in the figure and disconnect the right-
hand radiator lower pipe from the cylinder.
7
6 - Engine Release 01 Date 09/2007
1
