14
Fork oil
Left/right fork leg

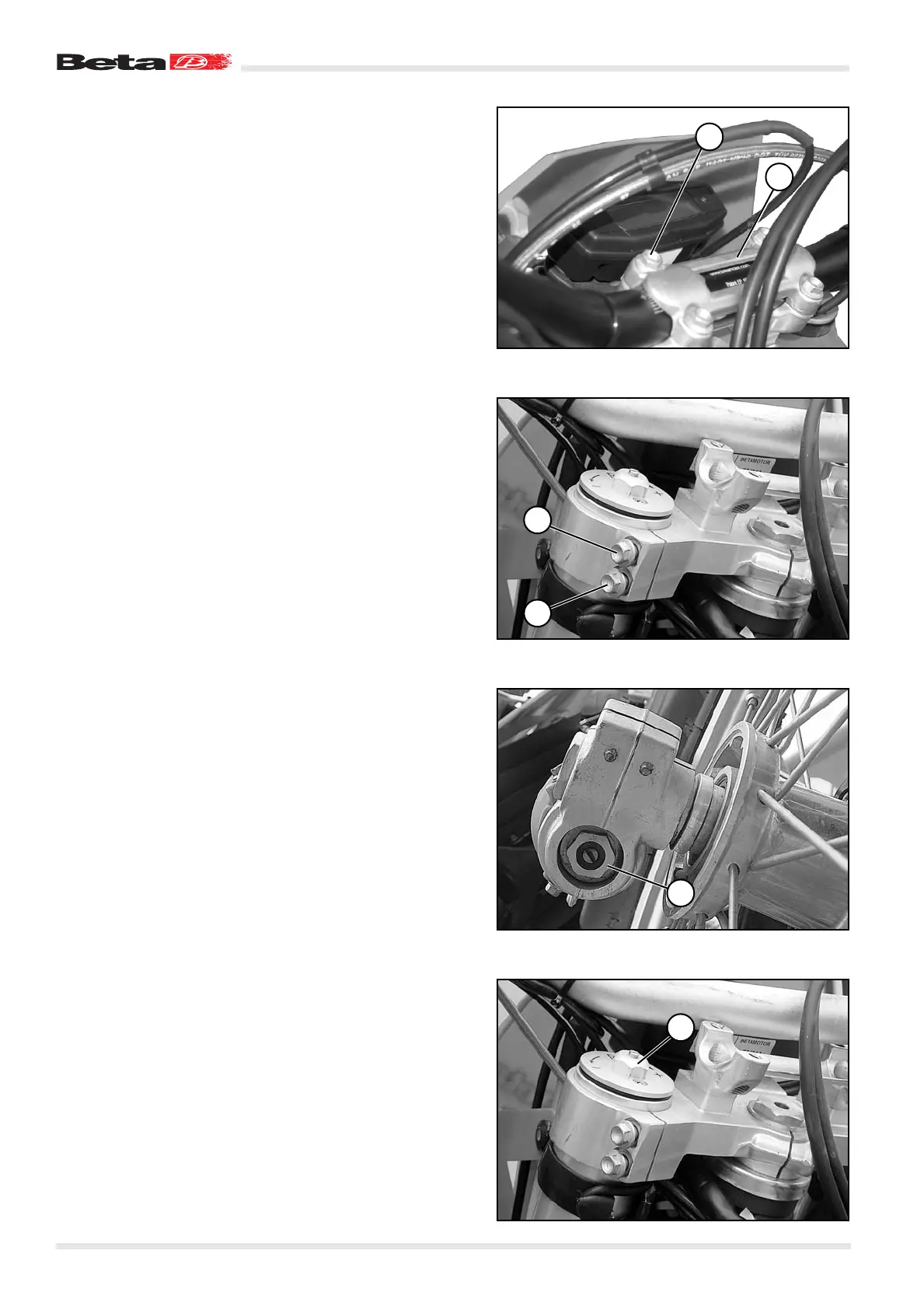

To renew the oil, follow these steps:
– Unscrew the four screws B fastening handlebar clamp C and
remove the handlebars.
– Loosen leg clamping screws D and E.
– Remove lower plug F and upper plug A (pay attention to the
spring).
– Allow the oil to drain completely from the fork leg.
– Screw on lower plug F again.
– Pour in fresh oil of the type specified in the table in Chapter 3.
– Screw on upper plug A again.
– Tighten screw D, then screw E and then screw D again.
Workshop manual RR 4T - 400 - 450 - 525
D
E
F
A
B
C
