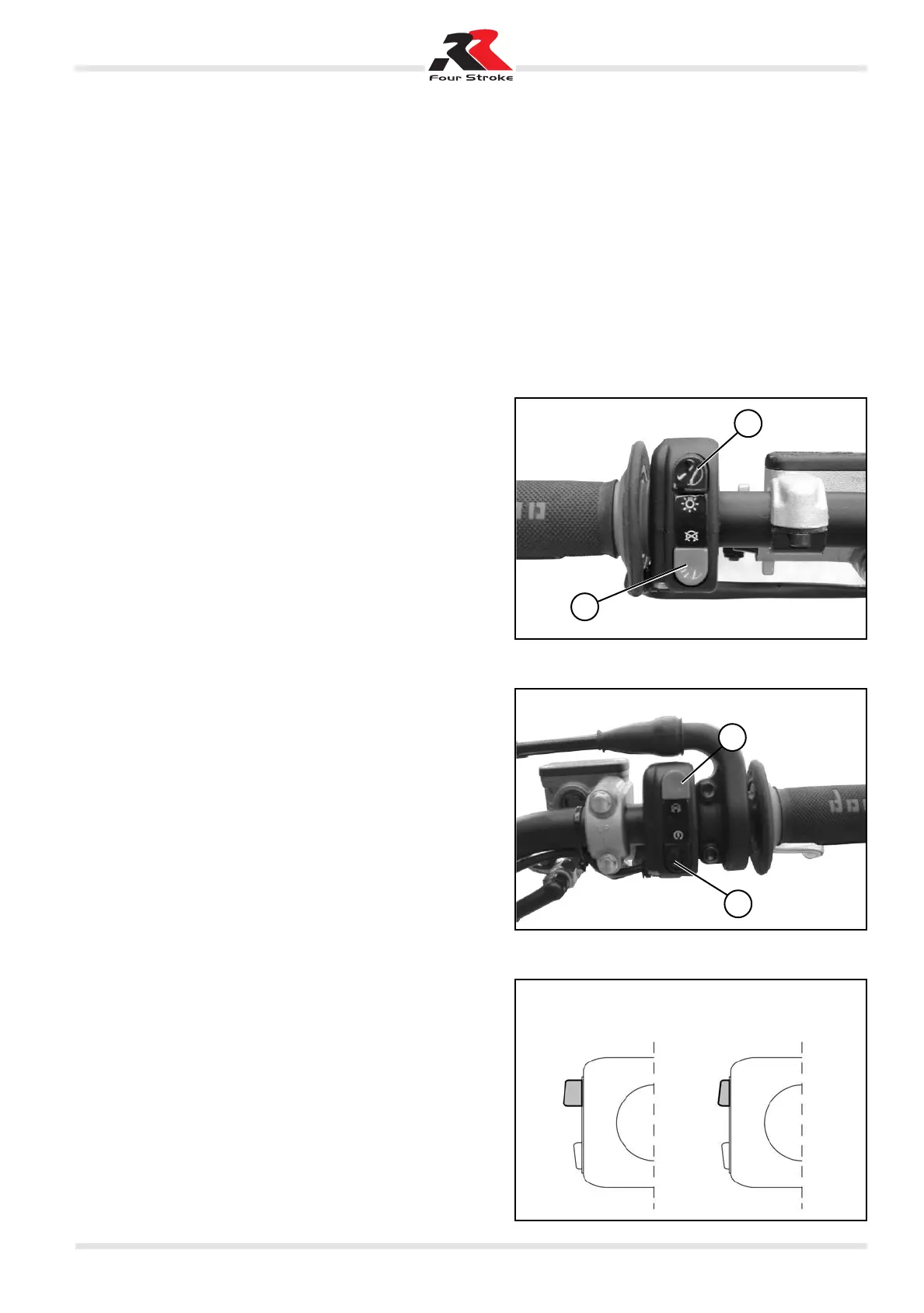

CONTROLS (RR4t USA)
Starter button
Starte button 3 is located on the right-hand side of the handle-
bars and operate the electri engine starter. Push the button un-
til the engine sterts.
Do not press the button 3 while the engine is running.
LH switch
Switch 11 is used to stop the engine. Press the button until the
engine stops.
While button 12 turns on the lights.
CONTROLS RS4T USA
RH switch
Starte button 13 is located on the right-hand side of the handle-
bars and operate the electri engine starter. Push the button un-
til the engine sterts.
Do not press the button 13 while the engine is running.
While button 14 turns off the engine.
Caution:
Before turning it on, make sure the switch 14 is on ON.
LH switch
Dip switch 4 has three positions:
lights off
low beam on
high beam on
Button 5 operates the horn.
Switch 6 is used to stop the engine.
Press the button until the engine stops.
ON
OFF
11
12
14
13
