Workshop manual RR 4T - 400 - 450 - 525

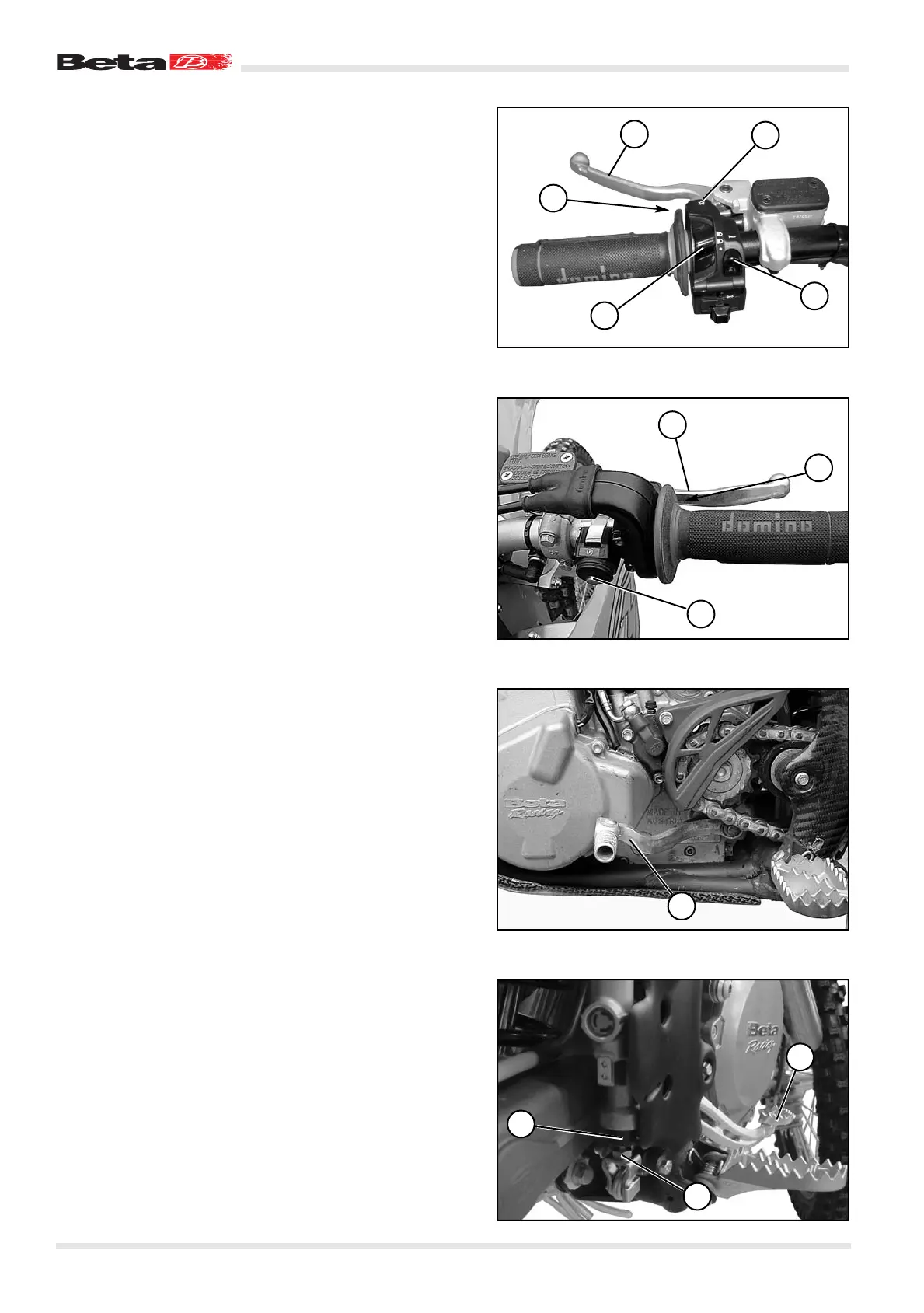

CONTROLS
Clutch lever
Clutch lever 1 is fitted to the left-hand side of the handlebars.
Screw A can be used to alter the home position of the lever (see
Adjustments).
Front brake lever
Front brake lever 2 is fitted to the righthand side of the handle-
bars. Screw B can be used to adjust the home position of the le-
ver (see Adjustments).
Starter button
Starte button 3 is located on the right-hand side of the handle-
bars and operate the electri engine starter. Push the button un-
til the engine sterts.
Do not press the button 3 while the engine is running.
LH switch
Dip switch 4 has three positions:
lights off
low beam on
high beam on
Button 5 operates the horn.
Switch 6 is used to stop the engine.
Press the button until the engine stops.
Gearchange lever
Gearchange lever 7 is fitted to the left side of the engine.
The positions corresponding to the different gears are shown in
the figure.
The neutral position is between the 1st and 2nd gears.
Brake pedal
The home position of brake pedal 4 can be altered by turning
adjusting screw 9 after loosening the counternut located under
dust cap 10. Loosen the counternut and turn the adjusting screw
until the desired height is obtained. Retighten the counternut
after completing the operation.
1
A
2
B
3
4
5
6
1ª•
2ª•
Folle•
3ª•
4ª•
5ª•
6ª•
7
8
9
10
