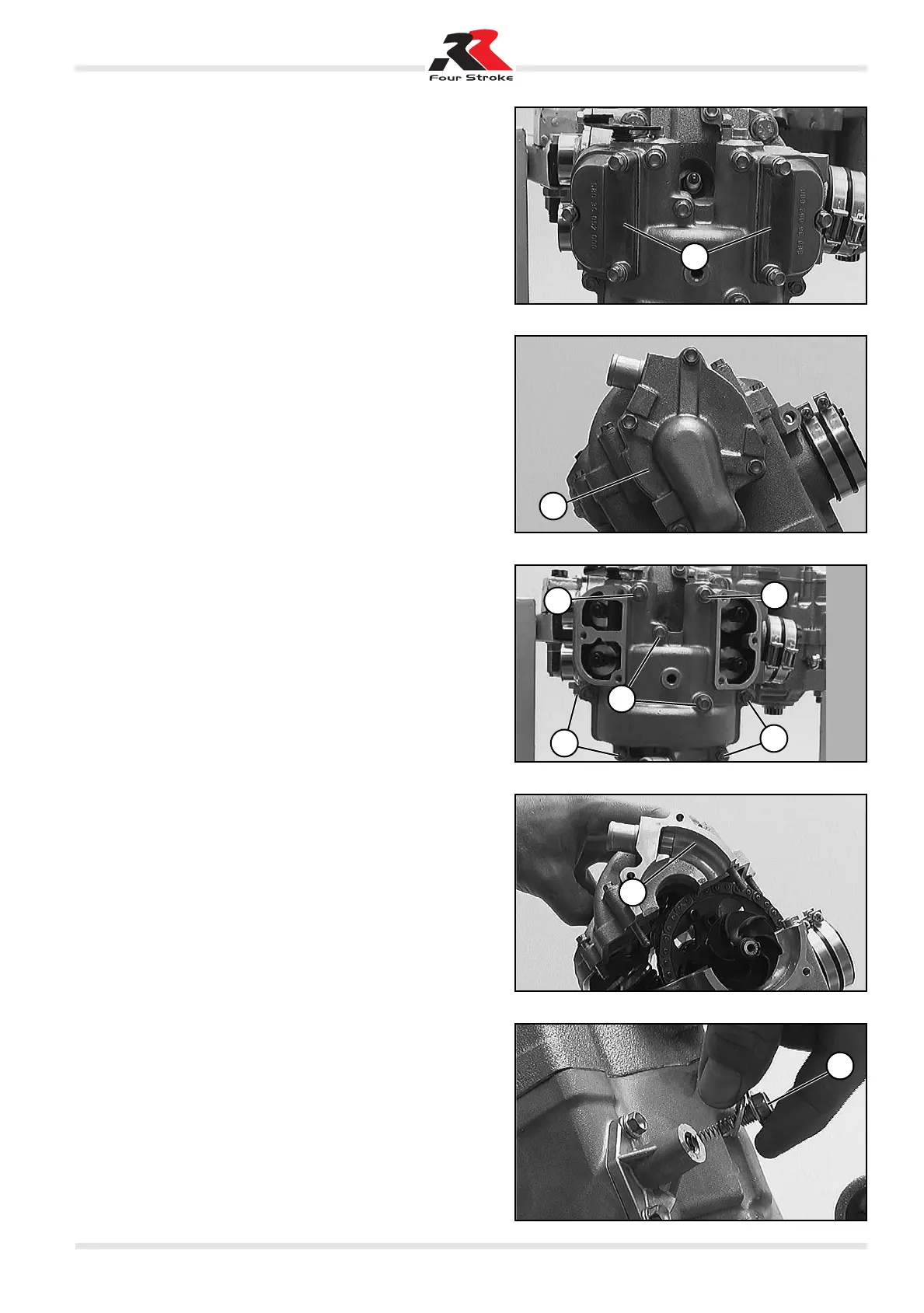

Removing the cylinder head top
– Unscrew all six screws with the related seal rings and remove
the two valve covers 1 with their gaskets.
– Unscrew the spark plug.
– Unscrew the four screws and remove water pump cover 2 with
the related gasket.
– Unscrew all screws 3 on the cylinder head top.
– Using a plastic mallet, carefully hit area A in an upward direc-
tion and remove the cylinder head top.
Removing the cylinder head, the cylinder and the piston
– Remove screw 4 with the seal ring and the compression
spring.
– Unscrew the two screws and pull the chain stretcher out of the
cylinder.
1
2
3
3
3
3
3
A
4
