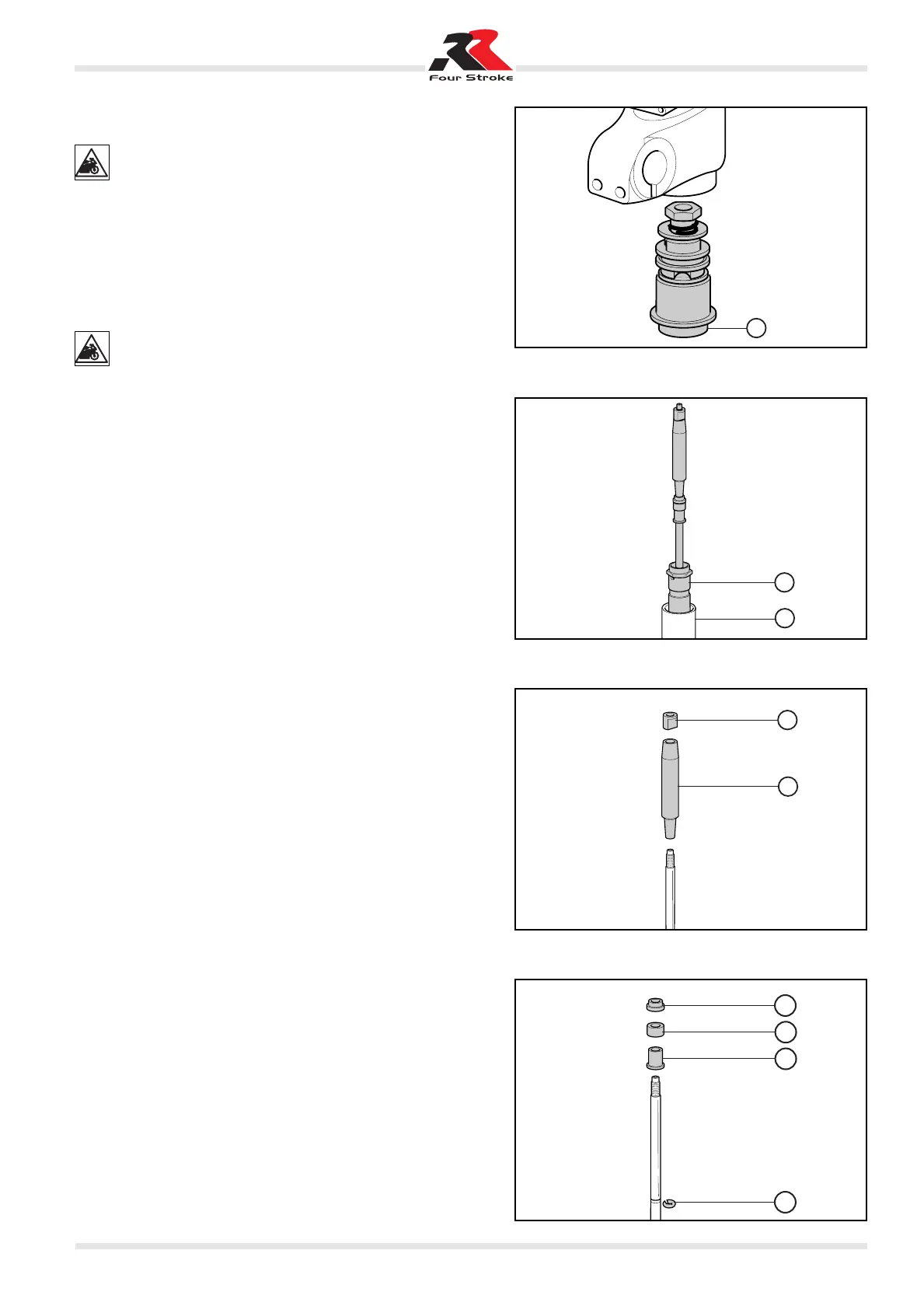

Removing the pump assembly and the foot valve
Perform this operation only after completely draining the
oil from the fork leg.
– Clamp the wheel holding foot of the fork leg in a vice.
– Stop the rotation of the case by accurately inserting the hexa-
gon on the case into the slotted hole at the lower end of the
tool.
In the upper part of the tool there are two diametrically
opposite holes where a pin can be inserted to facilitate its
locking. However, the tool must on no account be turned
but should only be used to hold the fork leg inside components
in place.
– Using the 21-mm socket wrench, unscrew foot valve 41.
– Remove foot valve assembly 41.
– Remove shock absorber assembly 21 from fork leg 5.
– Unscrew and remove counternut 23 and remove spring guide
24.
– To be able to work on the pump, it is first necessary to remove
the components of the stop pad. Hold foot pad nut 26 with an
18-mm spanner and unscrew tip 29 with a 17-mm hexagonal
spanner.
– Remove upper nut 26 and foot pad 28.
– Using a small screwdriver, pry retaining ring 27 off the rod.
– Remove retaining ring 27 and tip 29 from the rod.
