67
6 - Motor Release 01 Date 09/2007

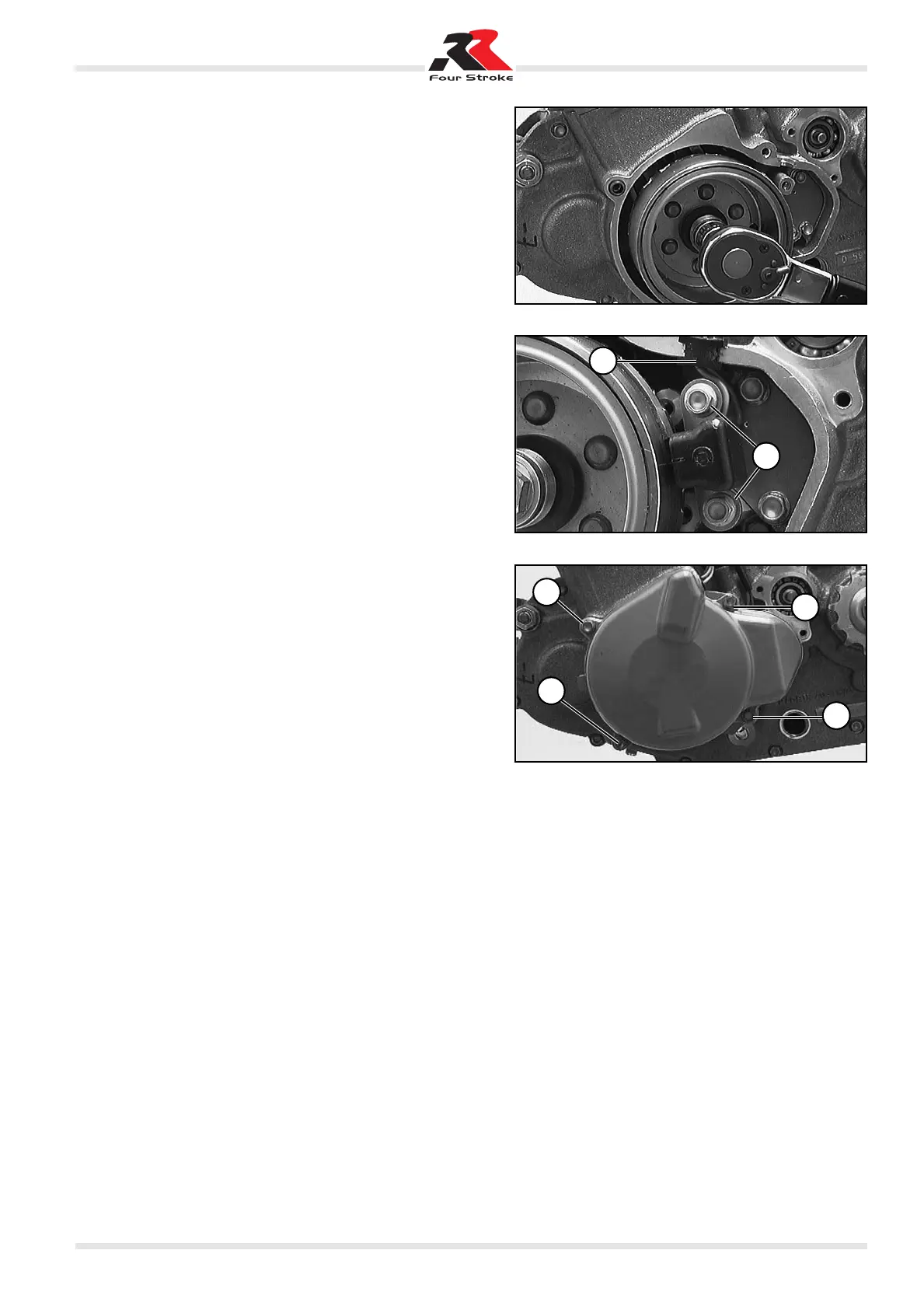

Fitting the flywheel
– Unscrew the crankshaft fixing screw, fit seal ring 1 and tighten
the crankshaft fixing screw to 25 N·m (see above).
– Ensure that the key is properly seated in the crankshaft and
then fit the flywheel on the crankshaft.
– Fit the wave washer and the flange nut. Pushing with the
clutch retainer, tighten the flange nut to 60 N·m.
Fitting the pick-up and the ignition cover
– Position the pick-up in the crankcase and insert cable guide 2
in the specially designed opening in the crankcase.
– Degrease the thread of the two screws 3 (M5x16), apply Loc-
tite 243 and tighten the screws to 6 N·m.
– Fit a new gasket and fasten the ignition cover with the four
screws (4 and 5). Tightening torque: 10 N·m.
NOTE: Fit the two longer screws 4 (M6x35) in the holes with the
centring bushes.
2
3
4
5
5
5
