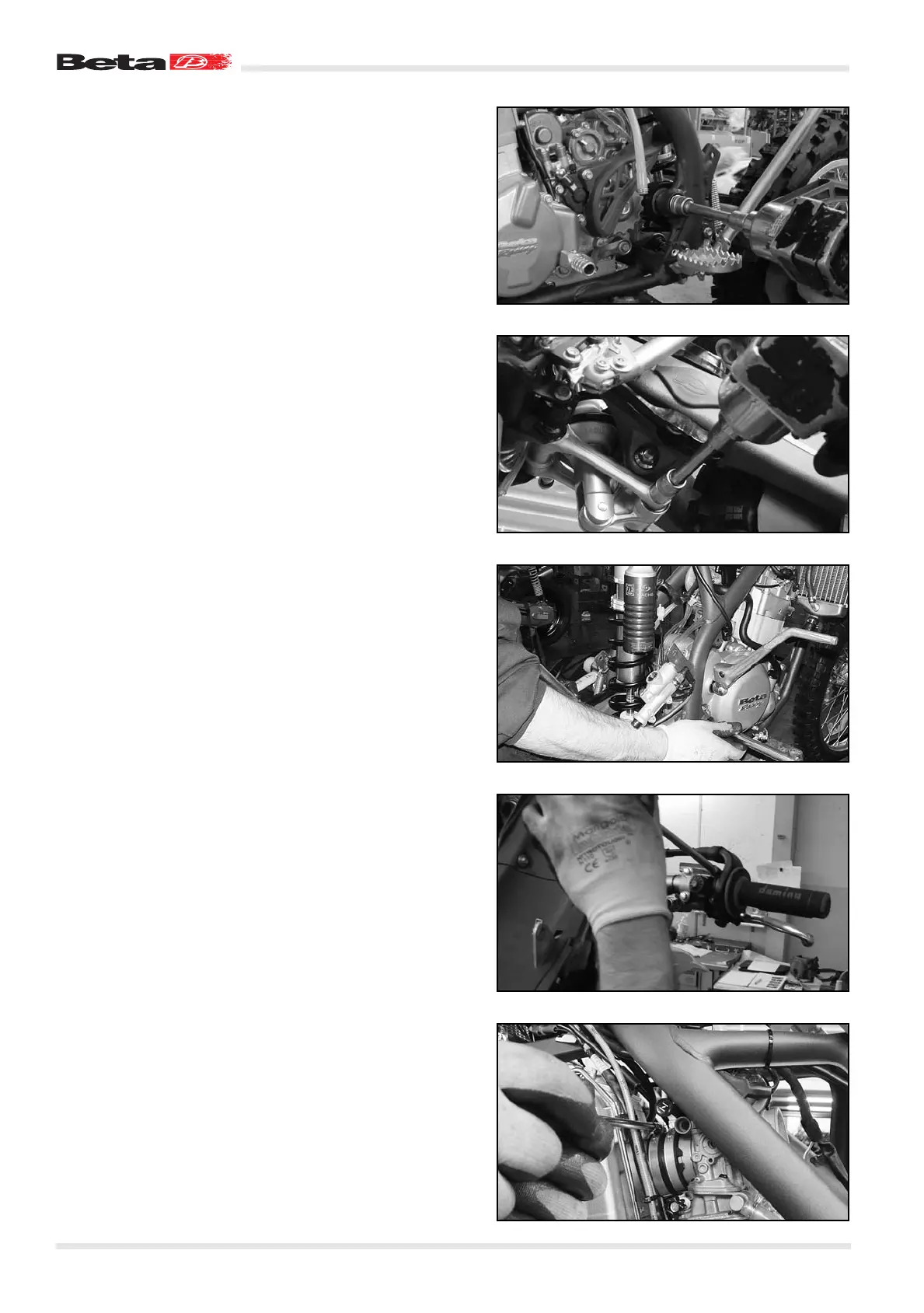

Removing the engine/swingarm pin
Remove the engine/swingarm pin. For safety reasons, it is ad-
visable to unscrew the left side while holding the pin in position
on the right side.
Removing the rear suspension linkage
Remove the linkage pin as previously described.
Removing the rear end
The swingarm assembly can now be removed from the vehicle.
Removing the throttle twist grip assembly
When the carburettor needs to be removed, it is advisable to re-
move the throttle twist assembly from the handlebars.
Removing the carburettor
Detach the sleeve that connects the cylinder to the carburettor
and remove the carburettor together with the cables and the
previously removed twist grip.
10
Workshop manual RR 4T - 400 - 450 - 525
