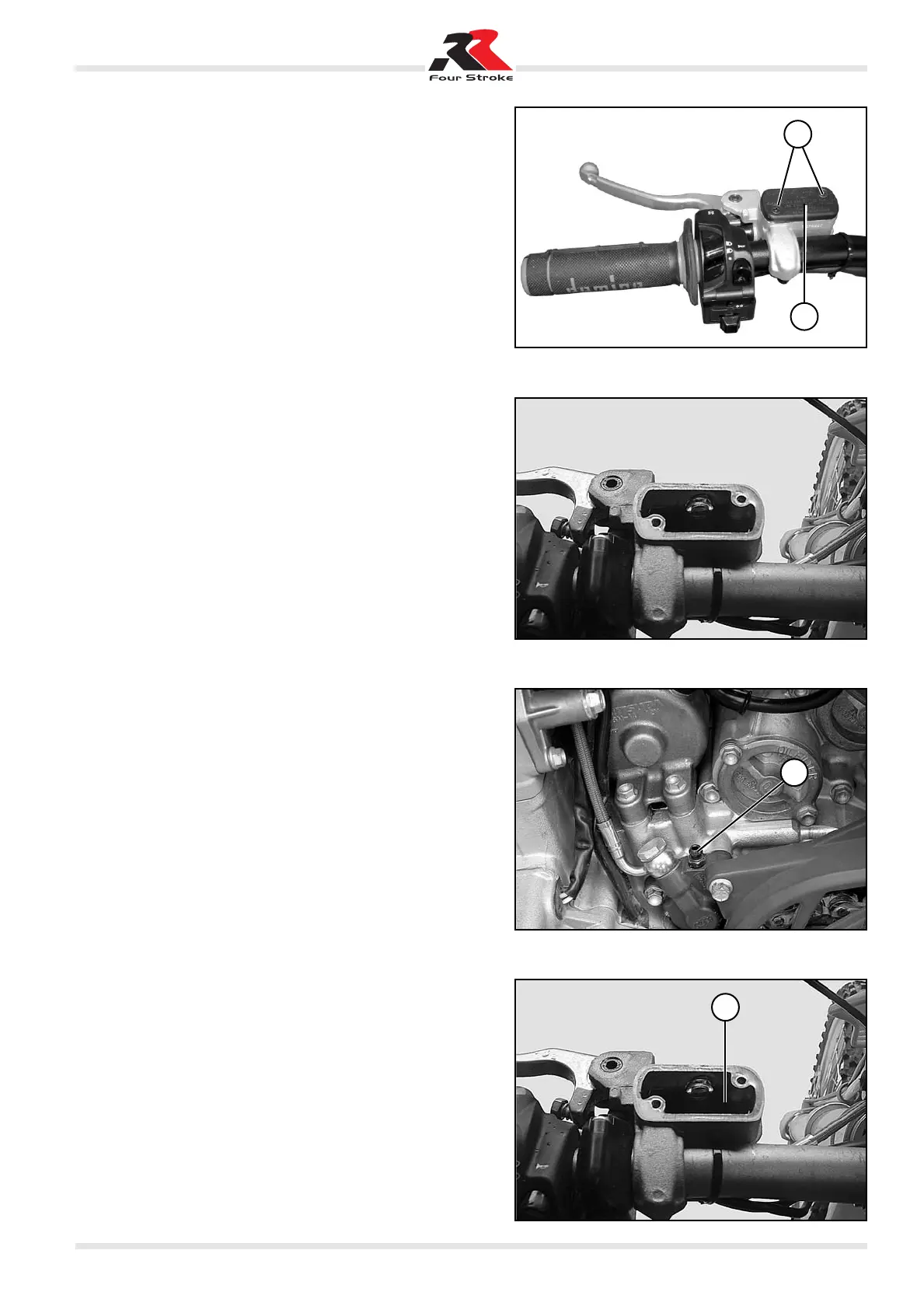

Checking the level of the hydraulic clutch fluid
To check the level of the fluid in the clutch pump, it is first nec-
essary to remove cover 2.
Remove the two screws 1 and take off cover 2 together with the
rubber bellows.
When the clutch pump is in a horizontal position, the fluid should
be 4 mm below the upper rim.
If necessary, top up with hydraulic fluid of the recommended
type (see Chapter 3).
Bleeding the hydraulic clutch
Before bleeding the clutch, it is first necessary to remove the
clutch pump cover. Remove the two screws 1 and take off cov-
er 2 together with the rubber bellows. Remove the breather
valve from clutch pump cylinder 3 and replace it with the bleed-
ing syringe filled with SAE 10 hydraulic fluid. Inject fluid until it
comes out with no air bubbles from clutch pump hole 4. Ensure
that no fluid flows over. After completing the bleeding, check the
level of the fluid in the clutch cylinder and if necessary top up
with hydraulic fluid of the recommended type (see Chapter 3).
It is essential that only mineral oil should be used.
4 - Maintenance Release 01 Date 09/2007
