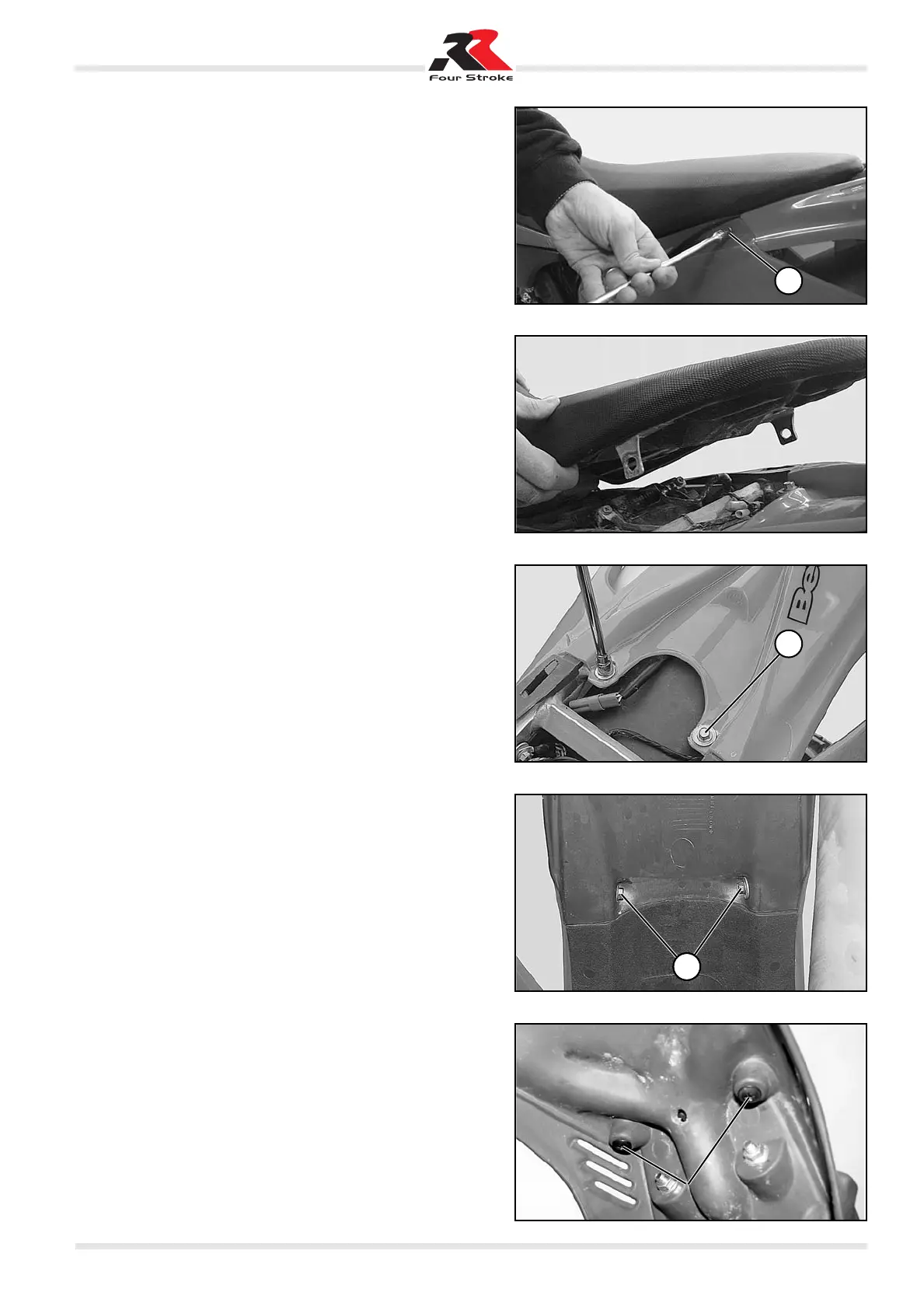

Removing the plastics
To make some areas of the vehicle easier to check and service,
it is first necessary to remove parts of the bodywork as de-
scribed below.
Removing the saddle
Remove the two fixing screws A (one on each side), lift the sad-
dle as shown in the figure and pull it back and off the vehicle.
Removing the rear mudguard
Remove the two fixing screws B and then the two screws C and
D from under the rear mudguard.
5 - Bodywork and fittings Release 01 Date 09/2007
