BIO RAD CFX96 User Manual

Resources
136
Troubleshooting
Typically, software and instrument communication problems can be resolved by restarting your
computer and the system. Be sure to save any work in progress before restarting.
NOTE: Check that your computer has sufficient RAM and free hard drive space.
The minimum RAM is 2 GB, and the minimum hard drive space is 20 GB.
Installing the Software Manually
If needed, install the software manually by following these instructions:
1. Insert the software CD.
2. Right-click the software CD icon, and select Explore to open the CD window.
3. Double-click the CFX_Manager folder to open the folder, and then double-click
setup.exe to start the software installation wizard.
4. Follow the instructions on the wizard to install the software, and then click Finish.
Installing the Drivers Manually
If needed, install the drivers manually by following these instructions:
1. Insert the software CD. If the CD is not available, then locate the drivers folder in the file
path C:\Program Files\Bio-Rad\Drivers on your hard drive.
2. Click the Drivers button software installation screen (Figure 124).
3. Click the BaseUnit folder to open it.

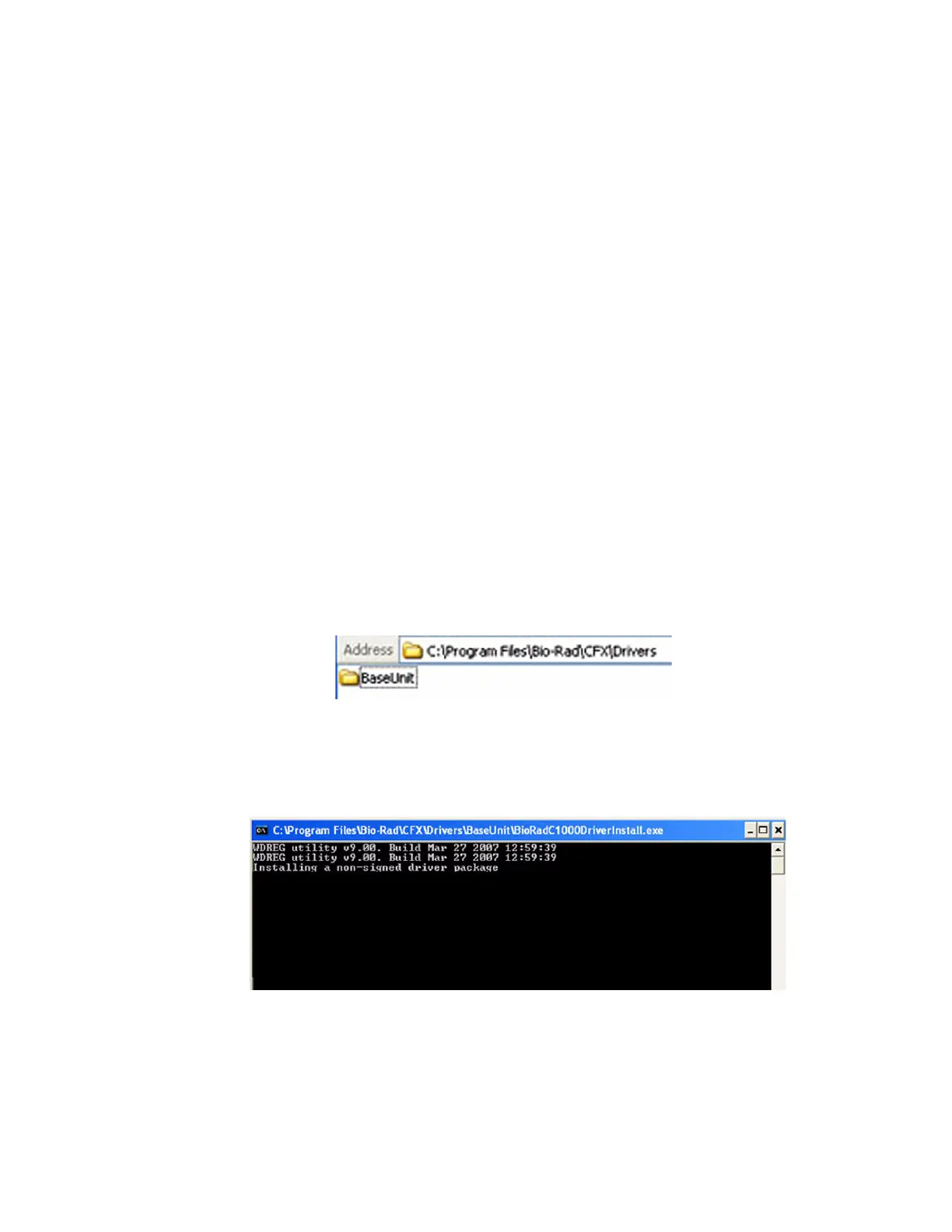

Figure 123. BaseUnit folder.
4. For computers with Windows XP, double-click BioRadC1000DriverInstall.exe to launch
the installation window. For computers with Windows Vista, right-click
BioRadC1000DriverInstall.exe and select Run as Admin to launch the installation
window.
Figure 124. Driver installation window.
When installation is complete, the installation window closes.
NOTE: If the drivers do not install with manual installation, please contact the
technical support team in your local Bio-Rad office (page 1).

BIO RAD CFX96 Specifications

General

Temperature Uniformity	±0.4 °C
Software	CFX Maestro Software
Detection Method	Real-time PCR (qPCR)
Sample Capacity	96-well plate
Excitation Source	LED
Ramp Rate	Up to 5°C/sec
Heating Rate	5°C/sec
Sensitivity	Single copy detection
Power Requirements	100-240 V, 50/60 Hz
Temperature Range	0–100 °C
