calibration menu.

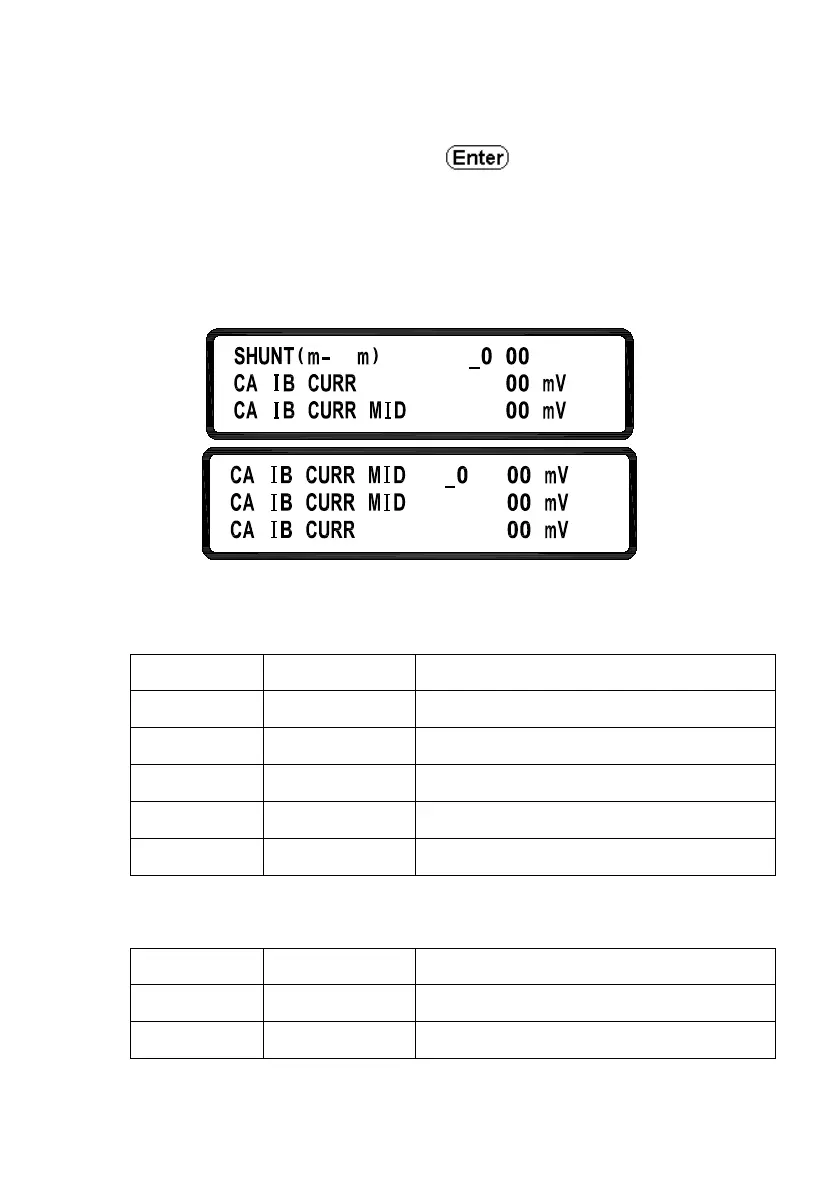

3. First, input the resistance of the current shunt in mΩ for current
measurement fixture and press .
4. Then, observe the voltage value shown on the DVM, and input it
accordingly for CALIB CURR Lo, then CALIB CURR MID1,
MID2, MID3, and Hi accordingly.
5. Be sure to check that all values are within the range specified by
the below tables, depending on the model.
XLN60026
Function Setting Range of transformation value
Lo
0.1352 0.01 ~ 0.1487
MID1
0.3424
0.3082 ~ 0.3766
MID2
1.04 0.936 ~ 1.144
MID3
1.7342
1.5608 ~ 1.9076
Hi
2.47
2.223 ~ 2.717
XLN30052
Function Setting Range of transformation value
Lo
0.2704 0.02 ~ 0.2974
MID1
0.6812
0.6131 ~ 0.7493
L
L
.
1
=
o
L
=
=
.
.
1 29
oh
3 77
6
L
L
2
.
=
3=
.
2
3
L
i
L =
39
394
49
.
32
