42
error message “SYNC OFF” is shown when the slave is not receiving the
synchronous output OFF signal.
4.9 External Tuning Setting
Models XLN3640/XLN6024/XLN8018/XLN10014 provides the capability to
control the output voltages by an external voltage/resistance. The range of the
external voltage is in 0 - 10 VDC or 0 - 5 VDC and the range of the external
variable resistance is between 0 - 5 kΩ to control the output voltage (0 - 36 V
for XLN3640, 0 - 60 V for XLN6024, 0 - 80 V for XLN8018, and 0 - 100 V for
XLN10014) and the output current (0 - 40 A for XLN3640, 0 - 24 A for
XLN6024, 0 - 18 A for XLN8018, and 0 - 14.4 A for XLN10014). The wirings

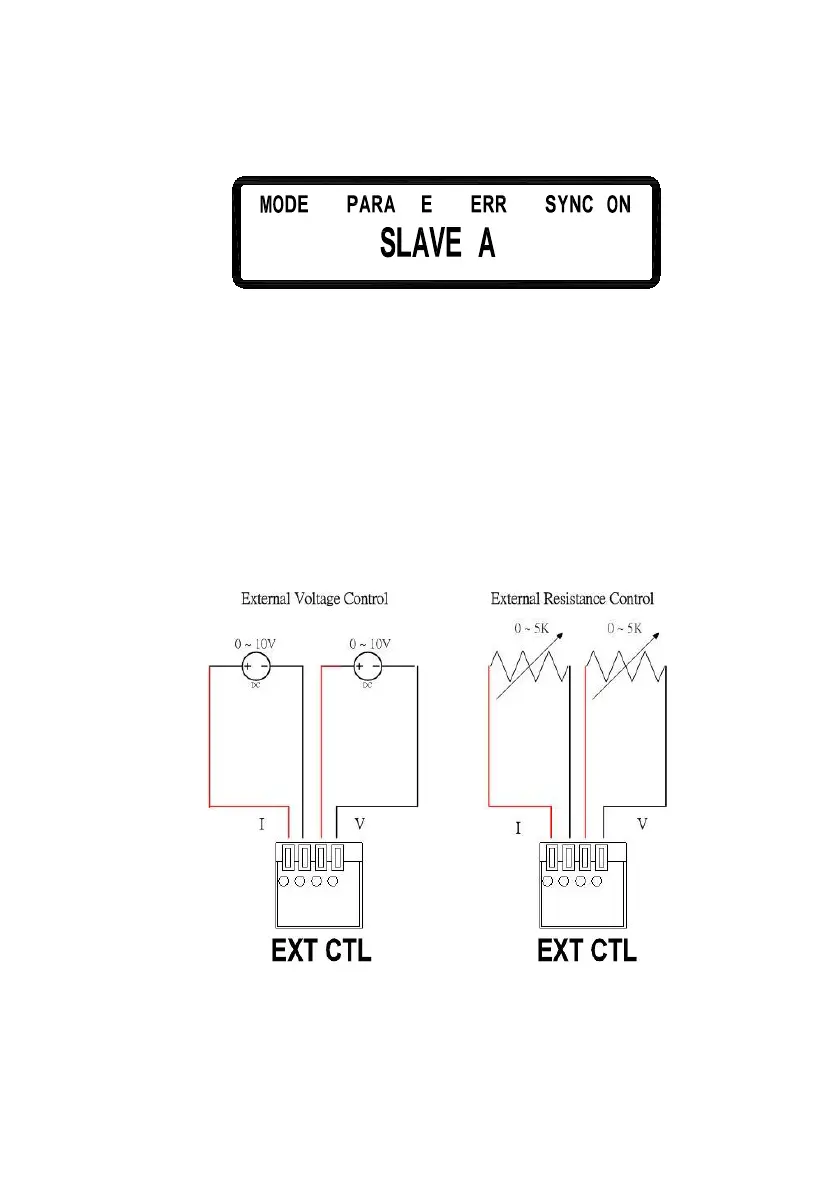

of the external control are shown in the following figure.
The external voltage control or external resistance control can be set in the
“system setting” screen. Since the external control circuit uses a 12bit D/A
converter for 0 - 36 V for XLN3640 (or 0 - 60 V for XLN6024 or 0 - 80 V for
XLN8018 or 0 - 100 V for XLN10014) output voltage and 0 - 40A for
To Next Page
