7.3 Assembly of Remote Sense Protective Cover
(XLN6024/XLN8018/XLN10014)
Safety regulation requests protective cover when the voltage is higher than 45
VDC. Therefore, there are protective covers for the remote sense connectors for

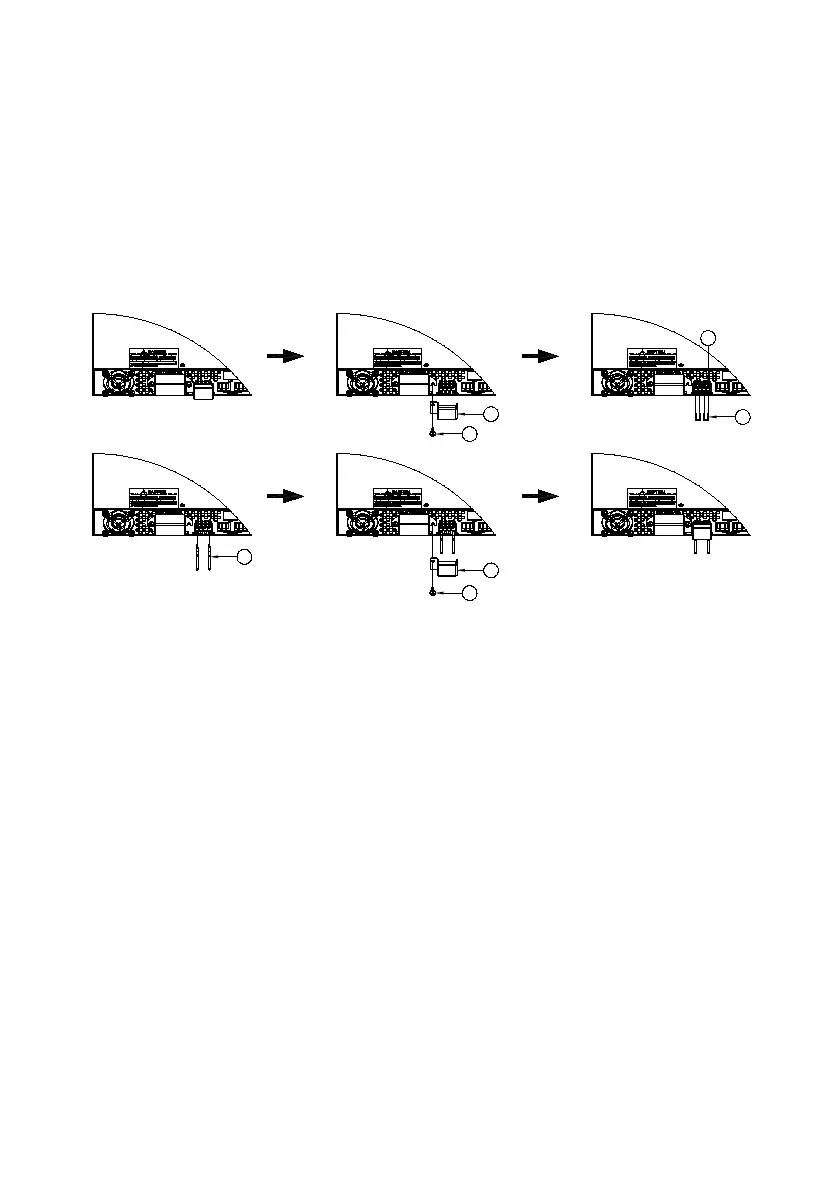

the XLN6024/XLN8018/XLN10014. Refer to the following figure for the
assembly/disassembly of the remote sense protective cover.
3
4
Step 4
5
Step 1
1
2
Step 5
Step 2
7
6
Step 3
