38

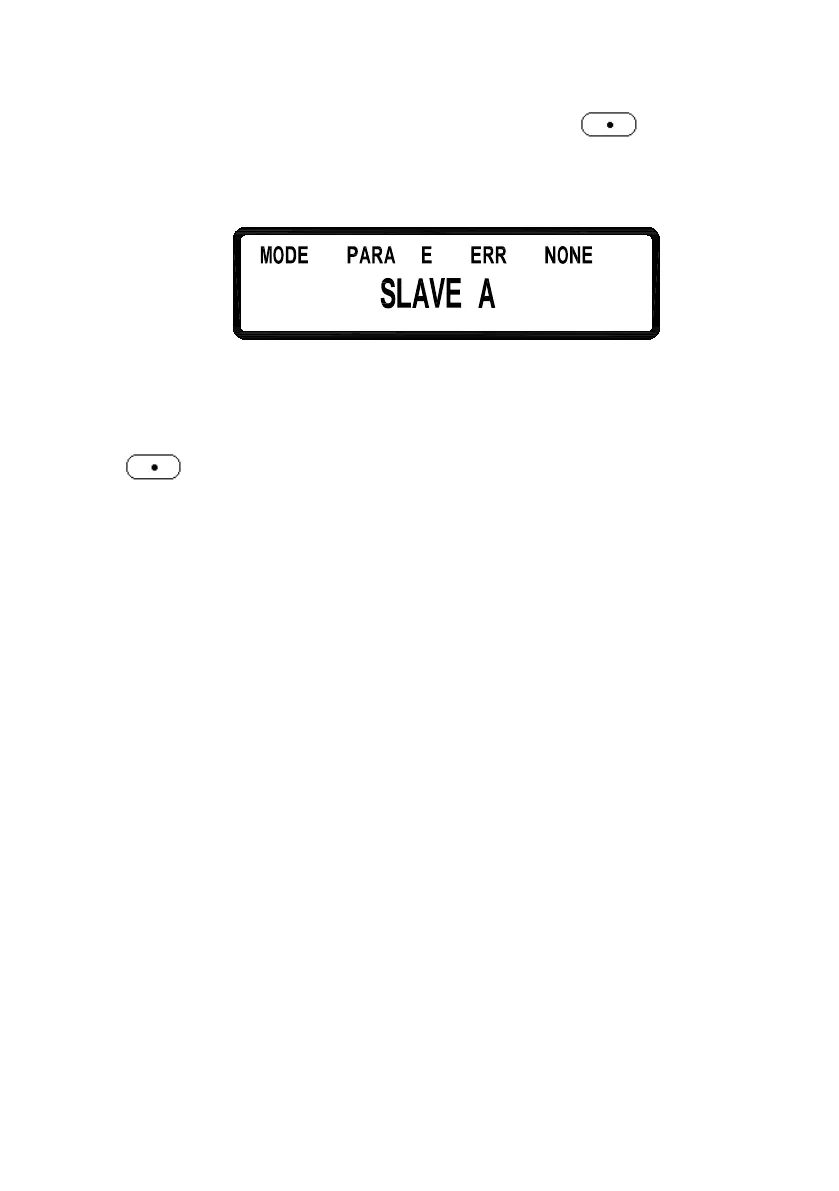

After receiving the control command from the Master, all Slaves will be locked
on to the SLAVE screen. At this point all keys except
are locked so
that slaves cannot be operated by front keys except controlled by the Master as
shown below:
Once the Master and Slave settings are done, users can then operate the Master
only to set up the combined output voltage and current of the complete system.
To release from this operation mode (parallel operation mode in this example),
press
(LCL) to access to the series/parallel setting screen and turn the
knob to select OFF for series/parallel selection to disable the series or parallel
operation mode and return to the local operation mode so that the
XLN3640/XLN6024/XLN8018/XLN10014 can be controlled by press the front
keys again. Do not change the operation mode while
XLN3640/XLN6024/XLN8018/XLN10014 is in their output states or there will
be a Master’s communication failure and an error message will be displayed.
After power-off, if you want to keep the previous series/parallel setting, please
turn on the Slave first. Then turn on the Master.
4.8.2 Series Mode Setting
While connecting four sets of XLN3640/XLN6024/XLN8018/XLN10014 in
series, the wiring setup should be configured as shown:
