Bosch Access Easy Controller User Manual

Access Easy Controller Convertor Card | en 149
Bosch Security Systems Hardware Manual Ver 2.0.0 | 2006.07
To help you further correctly set the jumper setting of the Convertor, the following examples
shows you how it is done.
For example, you may have a Main Controller unit with 2 x Reader Board and a Access Easy
Extension unit with 1 x Reader Board and 2 x I/O Cards. The Jumper setting required will be
as follows :

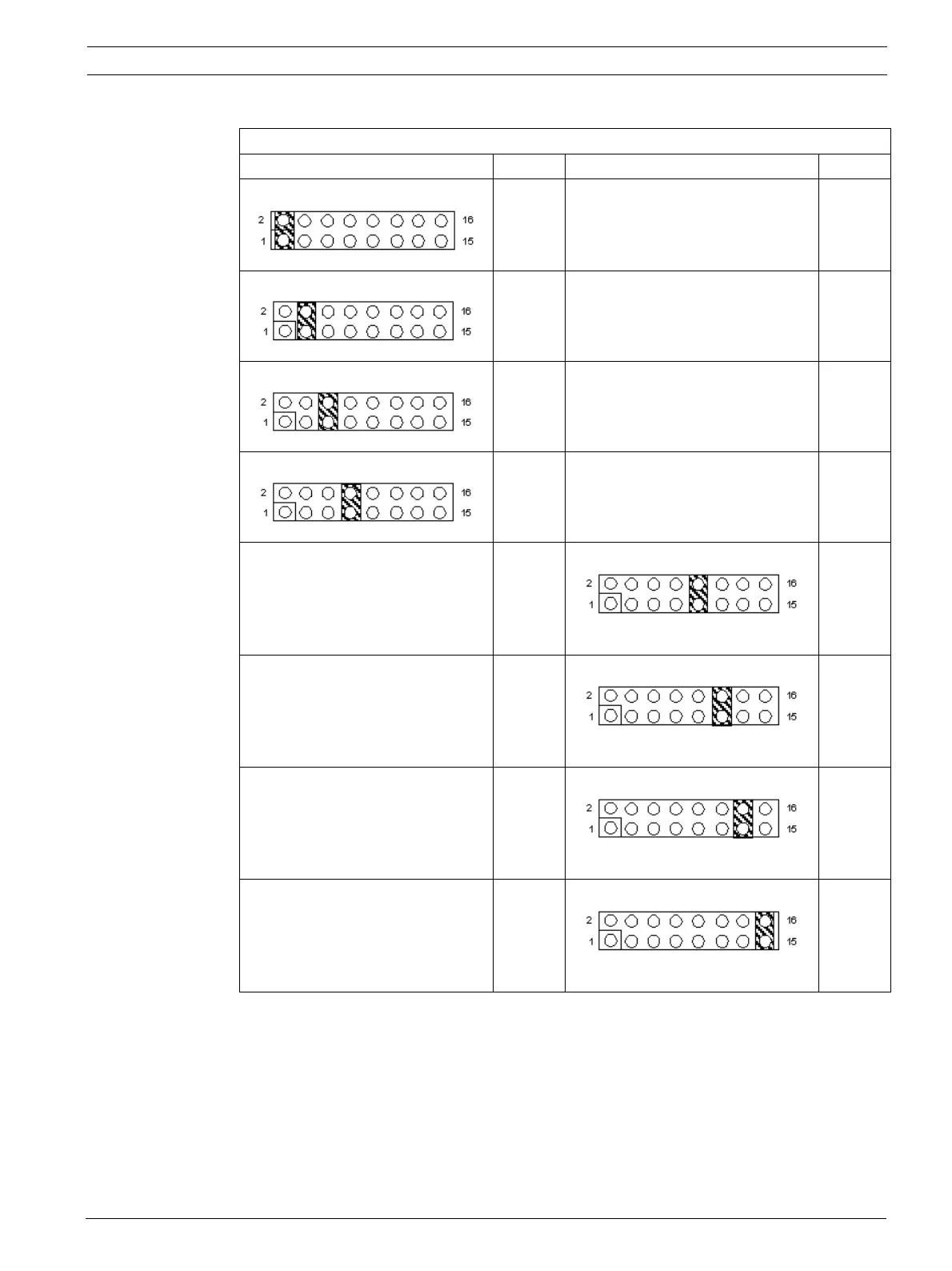

JP2 Settings
Reader I/O
Reader
1 - 4
Reader
5 - 8
Reader
9 - 12
Reader
13 - 16
Input
1 - 8
&
Output
1 - 8
Input
9 - 16
&
Output
9 - 16
nput
17 - 24
&
Output
17 - 24
Input
25 - 32
&
Output
25 - 32
