150 en | Convertor Card Access Easy Controller
Ver 2.0.0 | 2006.07 Hardware Manual Bosch Security Systems

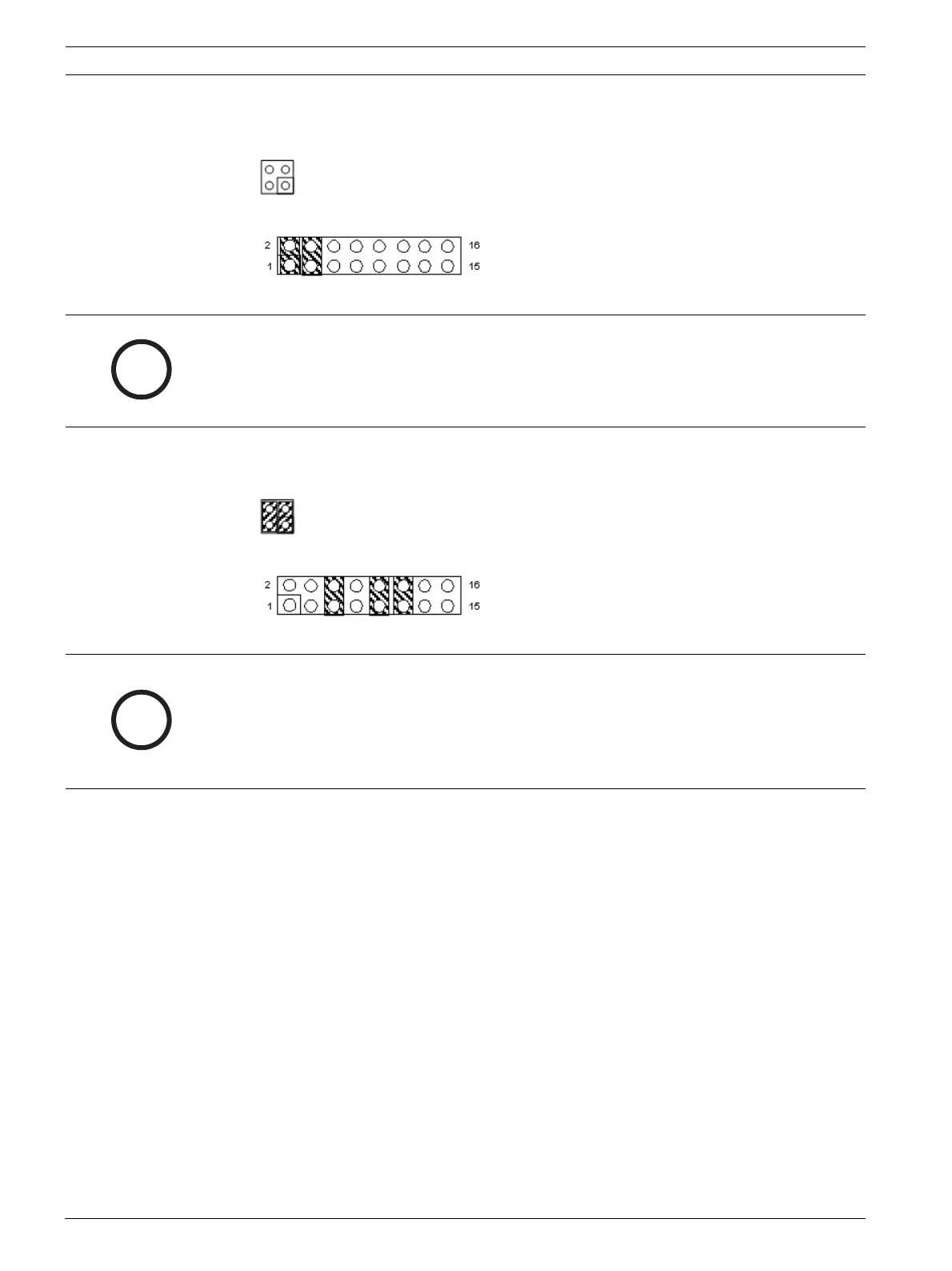

Main Controller Unit's Convertor Card :
JP1 :
JP2 :
Access Easy Extension Unit's Convertor Card :
JP1 :
JP2 :
i
NOTICE!
JP2 has 2 jumper set at pin 1&2 and pin 3&4 because the 2 Reader Board on the Main Control-
ler Unit controls the readers 1 to 4 for the first Reader Board and readers 5 to 8 for the sec-
ond Reader Board.
JP1 does not have any jumper set cause it is the first unit in the RS485 daisy chain loop.
i
NOTICE!
JP2 has 3 jumpers set at pin 5&6, pin 9&10 and pin 11&12, cause the Reader Board in the
Access Easy Extension unit controls the readers 9 to reader 12 and the I/O Cards control the
I/O range from 33 to 48 respectively.
JP1 has all the jumpers connected, cause the Access Easy Extension unit is the last unit in the
RS485 daisy chain loop.
