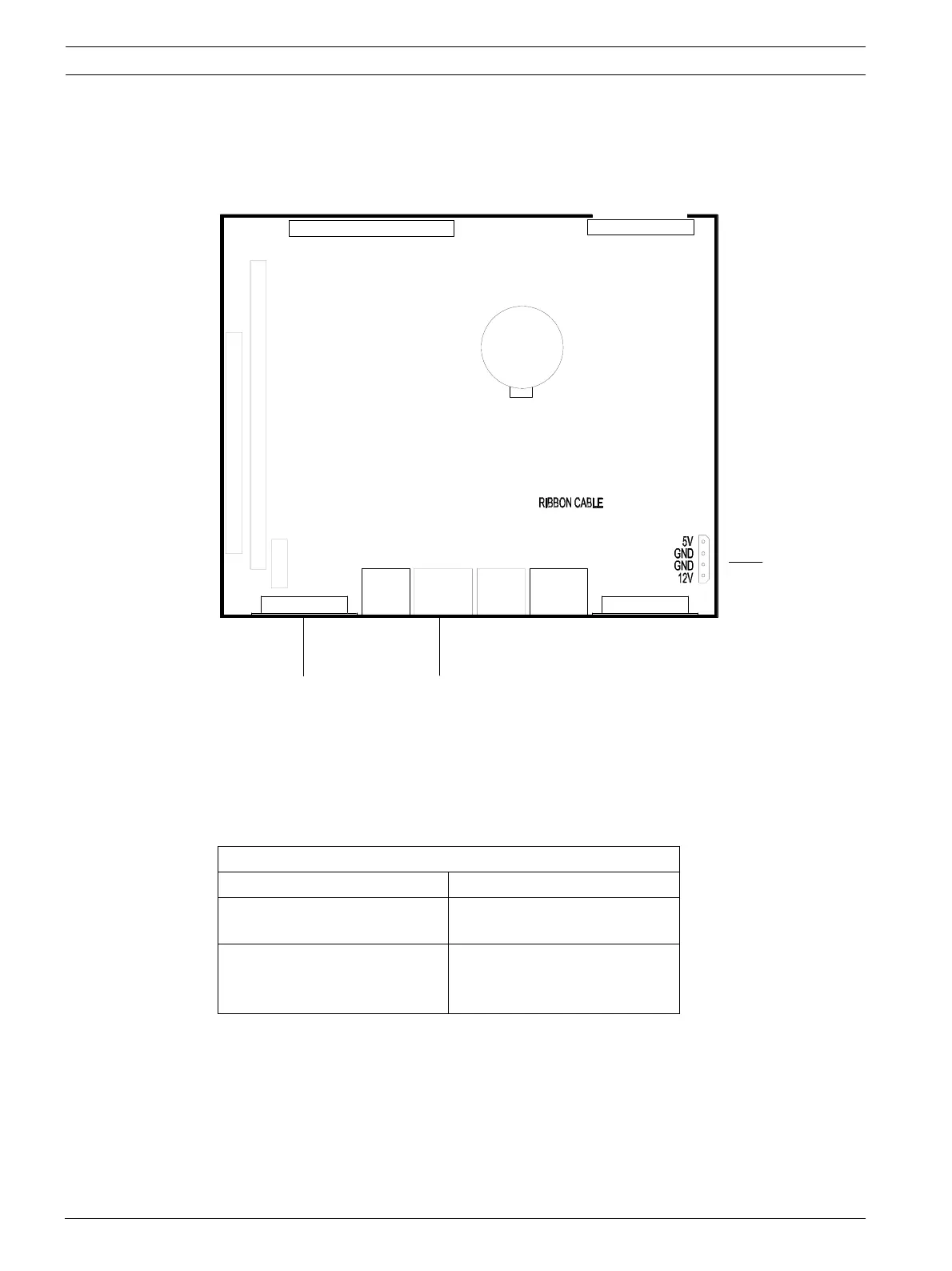

90 en | The CPU Card Access Easy Controller

Ver 2.0.0 | 2006.07 Hardware Manual Bosch Security Systems

CPU board with USB Port

Specification for CPU

Input Voltage +5VDC (4.75V to 5.25V)

Current Consumption 1.35A @ 5VDC (Peak)

1.25 A @ 5VDC (Idle)

Interface 1 x Serial Port

Parallel Port

10/100BaseT Fast Ethernet

12VDC & 5VDC

Connector

Enternet Lan Port

Serial Com Port for Modem

LANLAN

PIN 1

COM 1

USB

VGA

PORT 1 PS2 PORT 2

CPU BOARD

(P/N: AEC MOD CPU)

PIN 1
