6.7.2 Disconnecting the chiller
458863-11_Ri
2
1

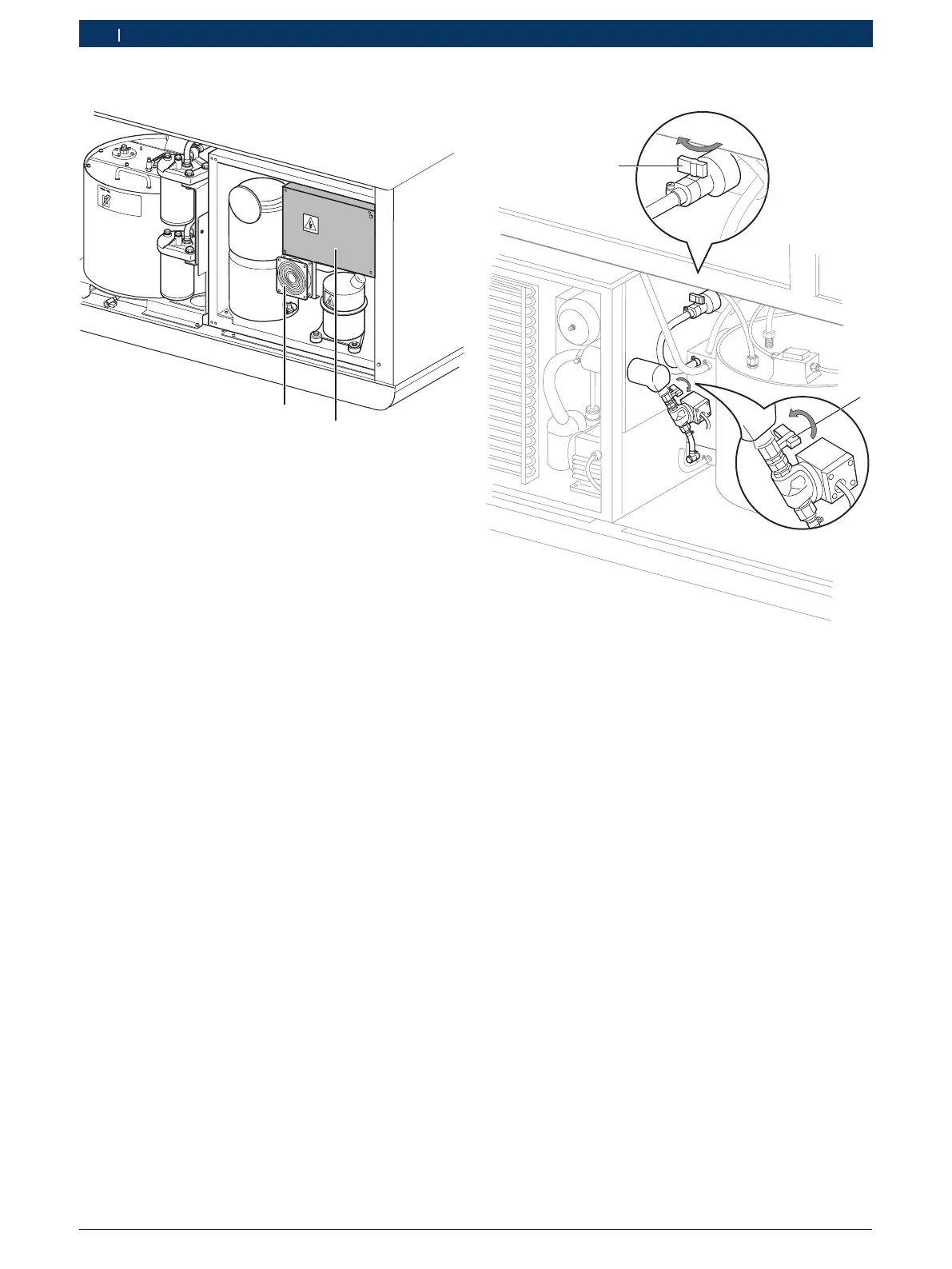

Fig. 38: Disconnecting the chiller
i Sever any cable ties to expose connecting cables.
1. Disconnect the two connecting cables with green
plugs (1 684 463 762 and 1 684 463 727) from the
back of the chiller switch box (see Fig. 38, item 1).
2. Disconnect the plug of the fan (item 2).
3. Slacken the screws on the fan and remove the fan.
6.7.3 Removing the chiller
458863-26_Pal
1
2
Fig. 39: Valves on chiller
1. Close both valves (items 1 and 2).
