S1, S3 Characteristics apply to a PWM frequency of 4 kHz
â‘ M
max
, controlled supply 3 AC 400 V
â‘¡ M
max
, uncontrolled supply 3 AC 480 V
â‘¢ M
max
, uncontrolled supply 3 AC 440 V
â‘£ M
max
, uncontrolled supply 3 AC 400 V
B Corner speed reduced to 80%
C Corner speed reduced to 90%

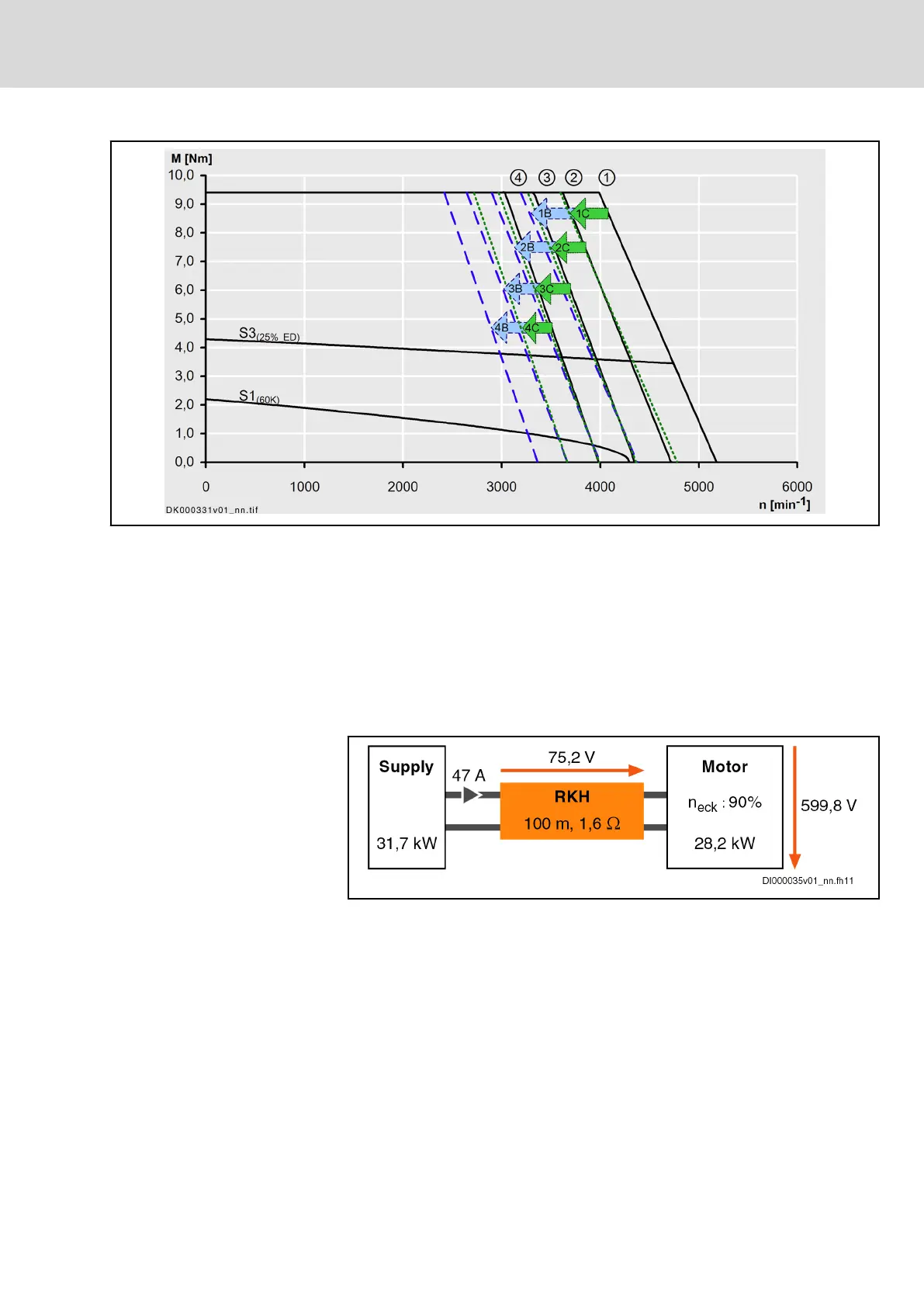

Fig. 7-9: Example of how long lines reduce the corner speeds
Power distribution
Supply Power supply (controlled supply voltage 3 AC 400 V)
RKH Hybrid cable
Motor KSM or KMS and Motor
Fig. 7-10: Example of power distribution with cable length of 100 m and corner
speed reduced to 90%
Peak Power when Decelerating
The peak power when decelerating is independent of the supply unit used
and the mains voltage. But the peak power is reduced as of a cable length of
approx. 80 m, due to the voltage limitation taking effect in KSM/KMS.
The critical case is when all motors decelerate at the same time with peak
torque out of maximum speed (e.g., in the case of E‑Stop).
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
225/407
Notes on project planning
R911335703_Edition 04 Bosch Rexroth AG
