10 Technical specifications
122 Operating Manual ARC 400 BOWA-IFU-11779-ARC400-V2.1.0-S0-EN
Monopolar Cutting – Micro
Measurement at ohmic resistances

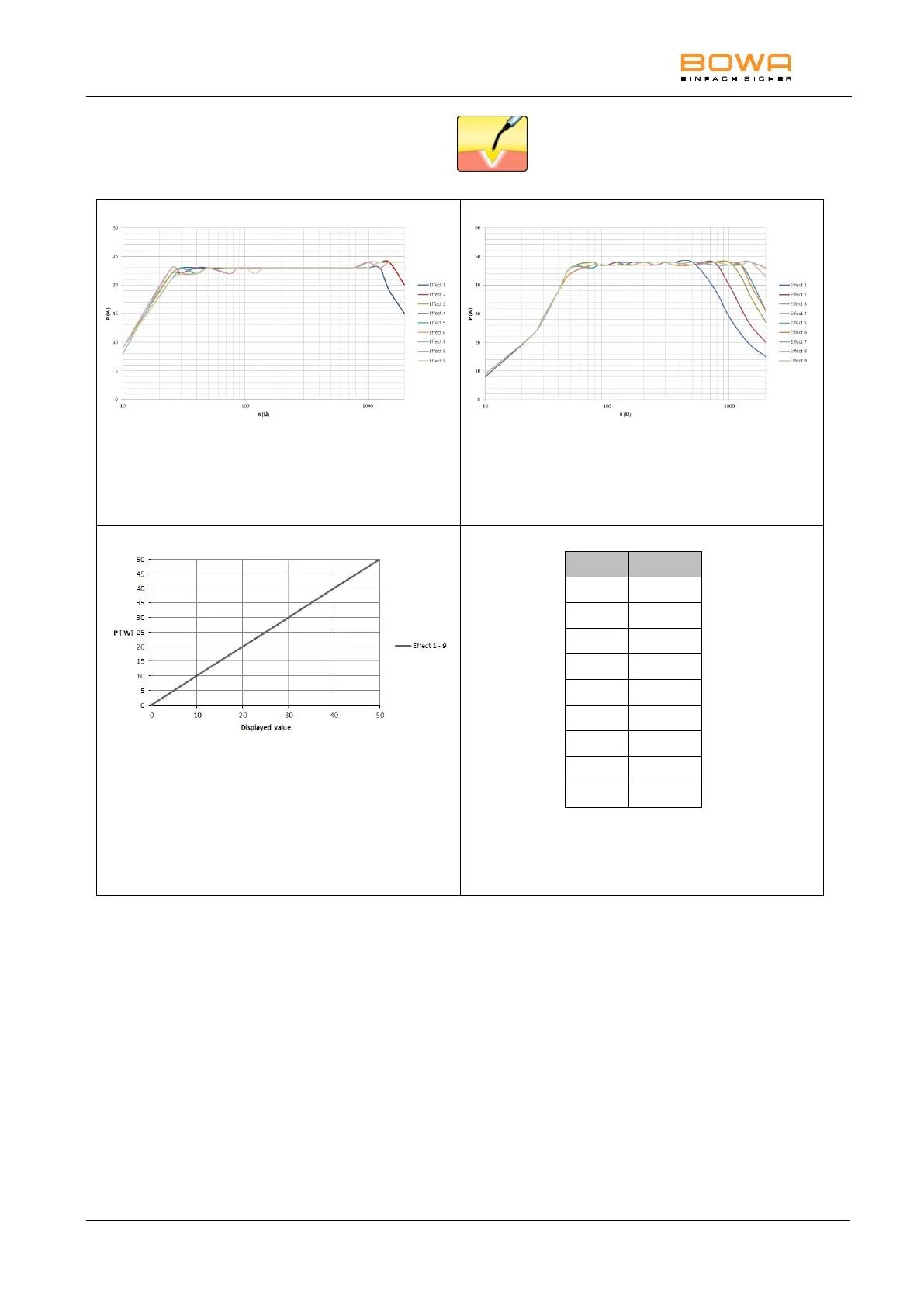

 Diagram of power output P [W] as a
function of the load resistance R [] for
the setting "Monopolar Cutting Micro"
= 25 W
Measurement at ohmic resistances
 Diagram of power output P [W] as a
function of the load resistance R [] for
the setting "Monopolar Cutting Micro"
= 50 W
 Diagram of power output P [W] as a
function of the setting "Monopolar
Cutting Micro"
Rated load resistance = 500 
Effect
U (Vp)
1
280
2
340
3
380
4
400
5
400
6
400
7
450
8
450
9
450
 Table of HF output voltage U [Vp] as a
function of the setting "Monopolar
Cutting Micro" (idle mode)
