10 Technical specifications
BOWA-IFU-11779-ARC400-V2.1.0-S0-EN Operating Manual ARC 400 123
Monopolar Cutting – Dry
Measurement at ohmic resistances

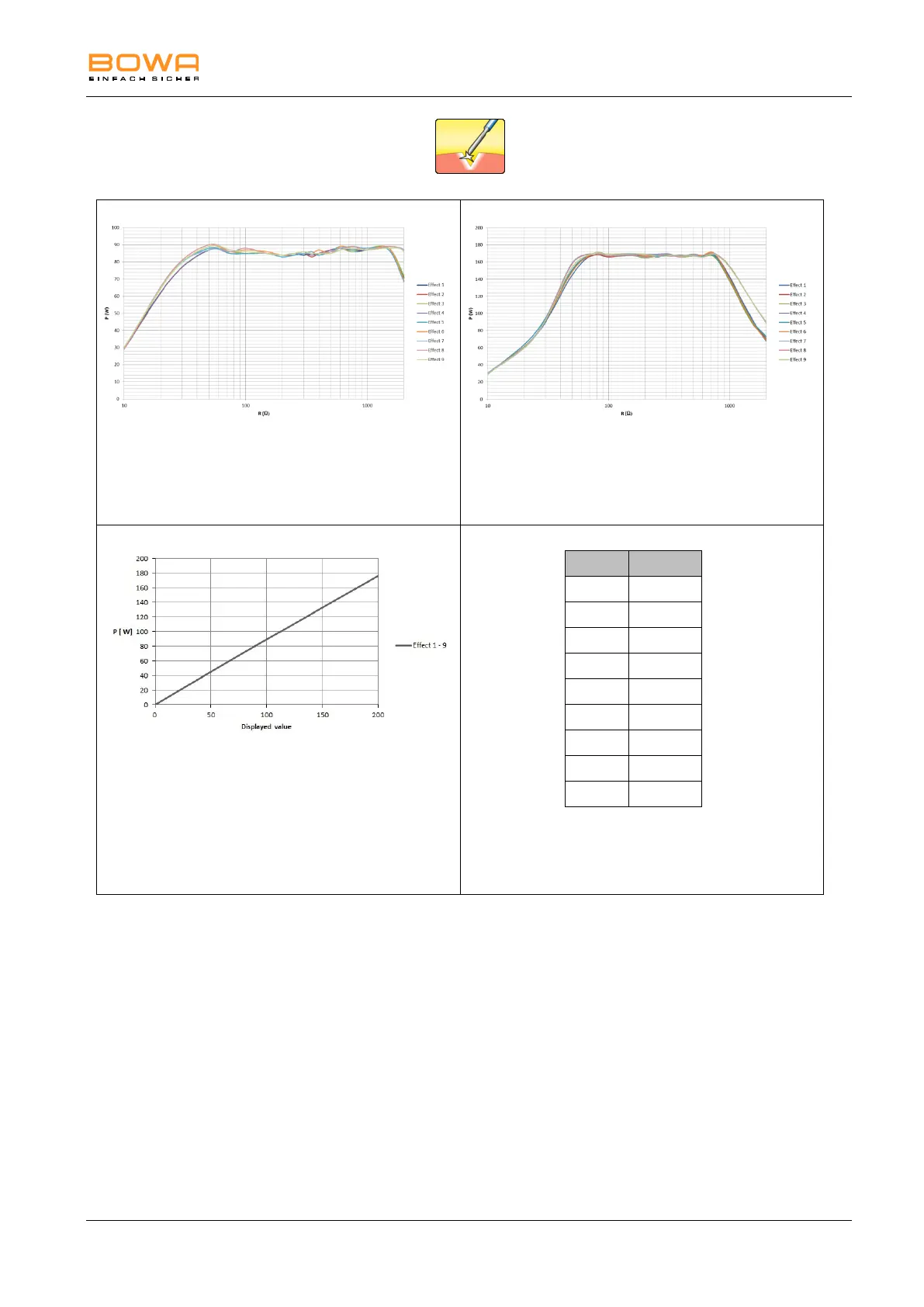

 Diagram of power output P [W] as a
function of the load resistance R [] for
the setting "Monopolar Cutting Dry"
= 100 W
Measurement at ohmic resistances
 Diagram of power output P [W] as a
function of the load resistance R [] for
the setting "Monopolar Cutting Dry"
= 200 W
 Diagram of power output P [W] as a
function of the setting "Monopolar
Cutting Dry"
Rated load resistance = 500 
Effect
U (Vp)
1
1400
2
1400
3
1400
4
1400
5
1500
6
1600
7
1600
8
1600
9
1600
 Table of HF output voltage U [Vp] as a
function of the setting "Monopolar
Cutting Dry" (idle mode)
