10 Technical specifications
124 Operating Manual ARC 400 BOWA-IFU-11779-ARC400-V2.1.0-S0-EN

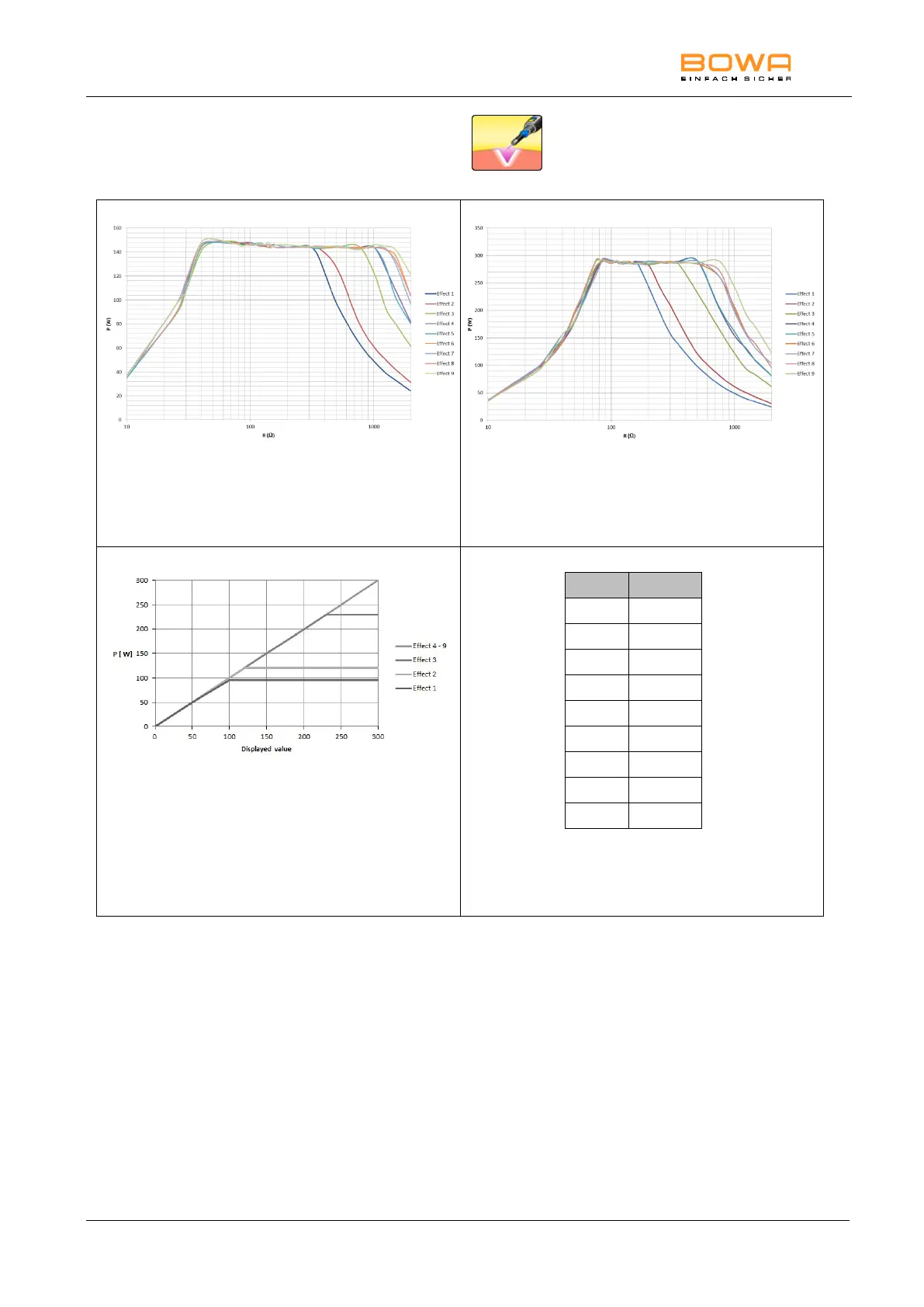

Monopolar Cutting – Argon
Measurement at ohmic resistances
 Diagram of power output P [W] as a
function of the load resistance R [] for
the setting "Monopolar Cutting Argon"
= 150 W
Measurement at ohmic resistances
 Diagram of power output P [W] as a
function of the load resistance R [] for
the setting "Monopolar Cutting Argon"
= 300 W
 Diagram of power output P [W] as a
function of the setting "Monopolar
Cutting Argon"
Rated load resistance= 500 
Effect
U (Vp)
1
400
2
450
3
560
4
650
5
650
6
700
7
700
8
700
9
750
 Table of HF output voltage U [Vp] as a
function of the setting "Monopolar
Cutting Argon" (idle mode)
