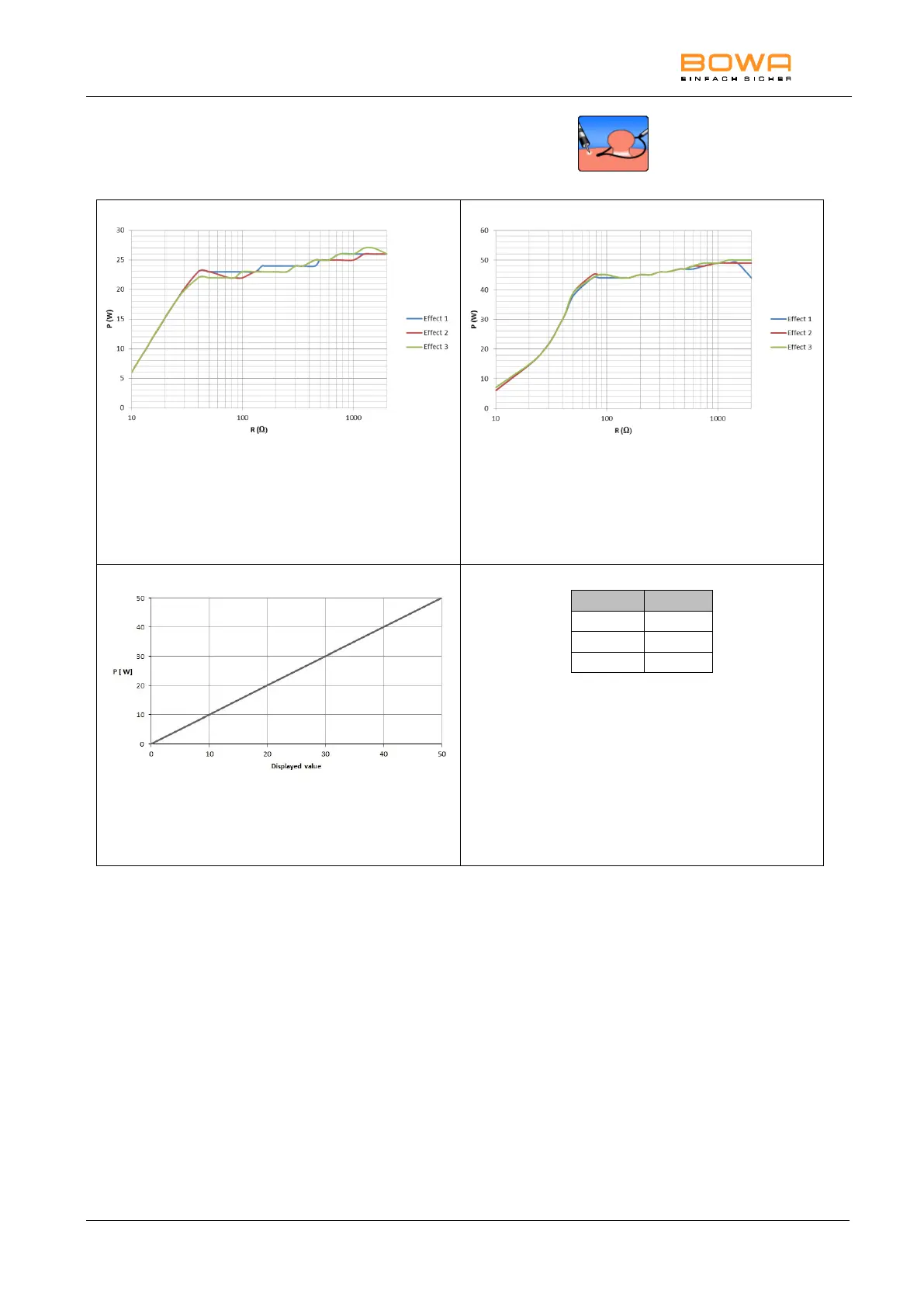

Monopolar Coagulation – Gastro Coag
Measurement at ohmic resistances
 Diagram of power output P [W] as a
function of the load resistance R [] for
the setting "Monopolar Coagulation
GastroCut Coag"
= 25 W
Measurement at ohmic resistances
 Diagram of power output P [W] as a
function of the load resistance R [] for
the setting "Monopolar Coagulation
GastroCut Coag"
= 50 W
 Diagram of power output P [W] as a
function of the setting "Monopolar
Coagulation GastroCut Coag"
Rated load resistance = 500 
Effect
U (Vp)
1
1800
2
2200
3
2800
 Table of HF output voltage U [Vp] as a
function of the setting "Monopolar
Coagulation GastroCut Coag"
(idle mode)
