Brother DCP-L5652DN Service Manual

3-84
Confidential
(4) Remove the screw pan M4x8 screw, washer spring 2-4, and washer 5 to remove the
ground harness.
(5) Remove the taptite flat B M3x10 screw, and remove the inlet.

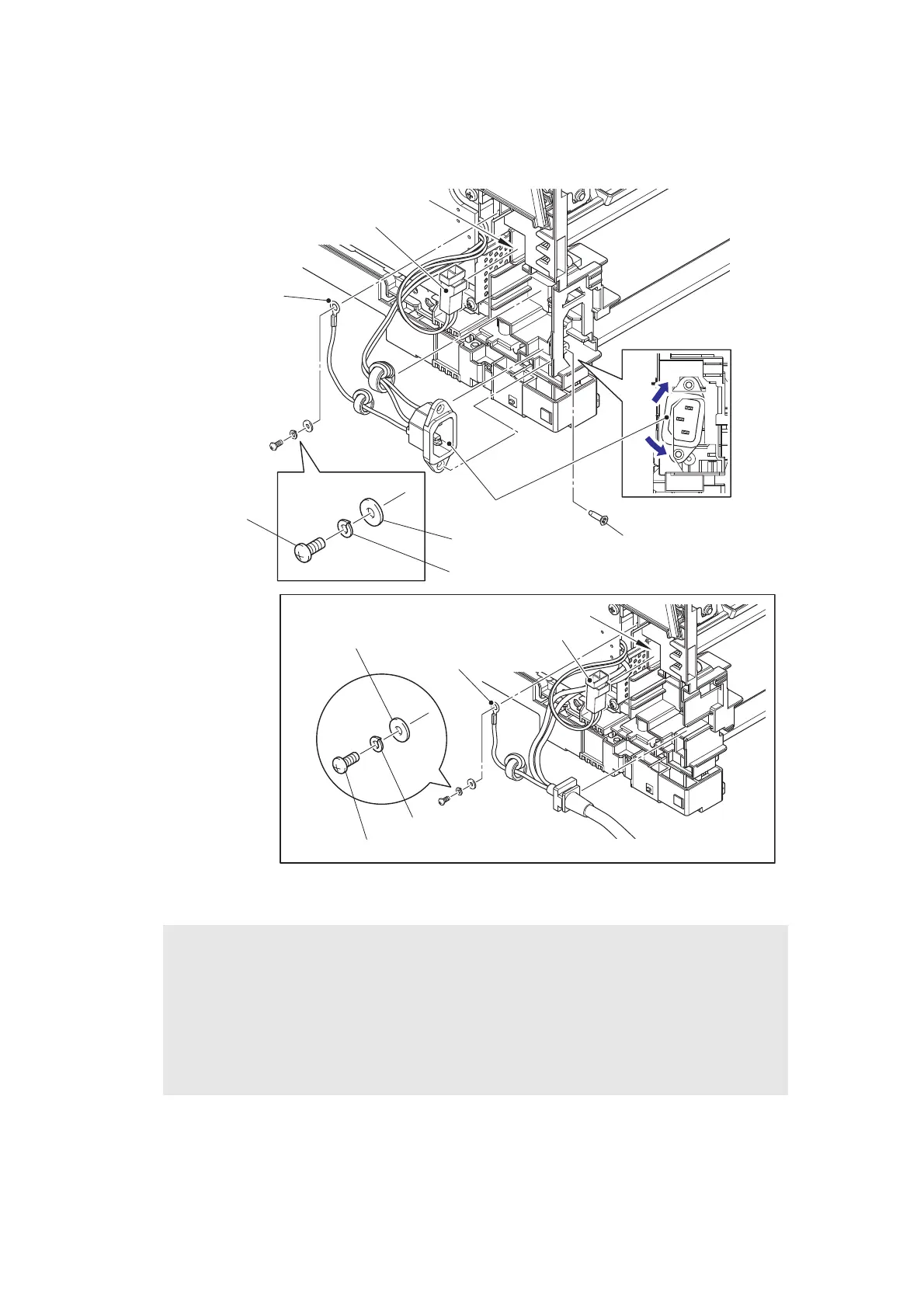

Fig. 3-83
Assembling Note:
• Attach the inlet as shown in the figure above.
• Insert the heater harness into the housing.
• For safety purposes, attach the washer spring 2-4 and washer 5 securely at positions
described in the figure above.
• For safety purposes, perform the harness routing properly as described in "11. Rear
side of the machine".
Screw pan M4x8
Washer 5
Washer spring 2-4
Housing
Ground harness
Taptite flat B M3x10
Inlet
1
2
Heater harness
Housing
Heater harness
<For models with China>
Ground harness
Washer 5
Washer spring 2-4
Screw pan M4x8

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
