4-12
Confidential
(24) Remove the two Flat cable from the Main PCB.
(25) Remove the six cup S M3x6 Taptite screws.
(26) Remove the Protective film from the Flat cable.
(27) Pull out the two Flat cables from the Core.
(28) Remove the Laser unit.

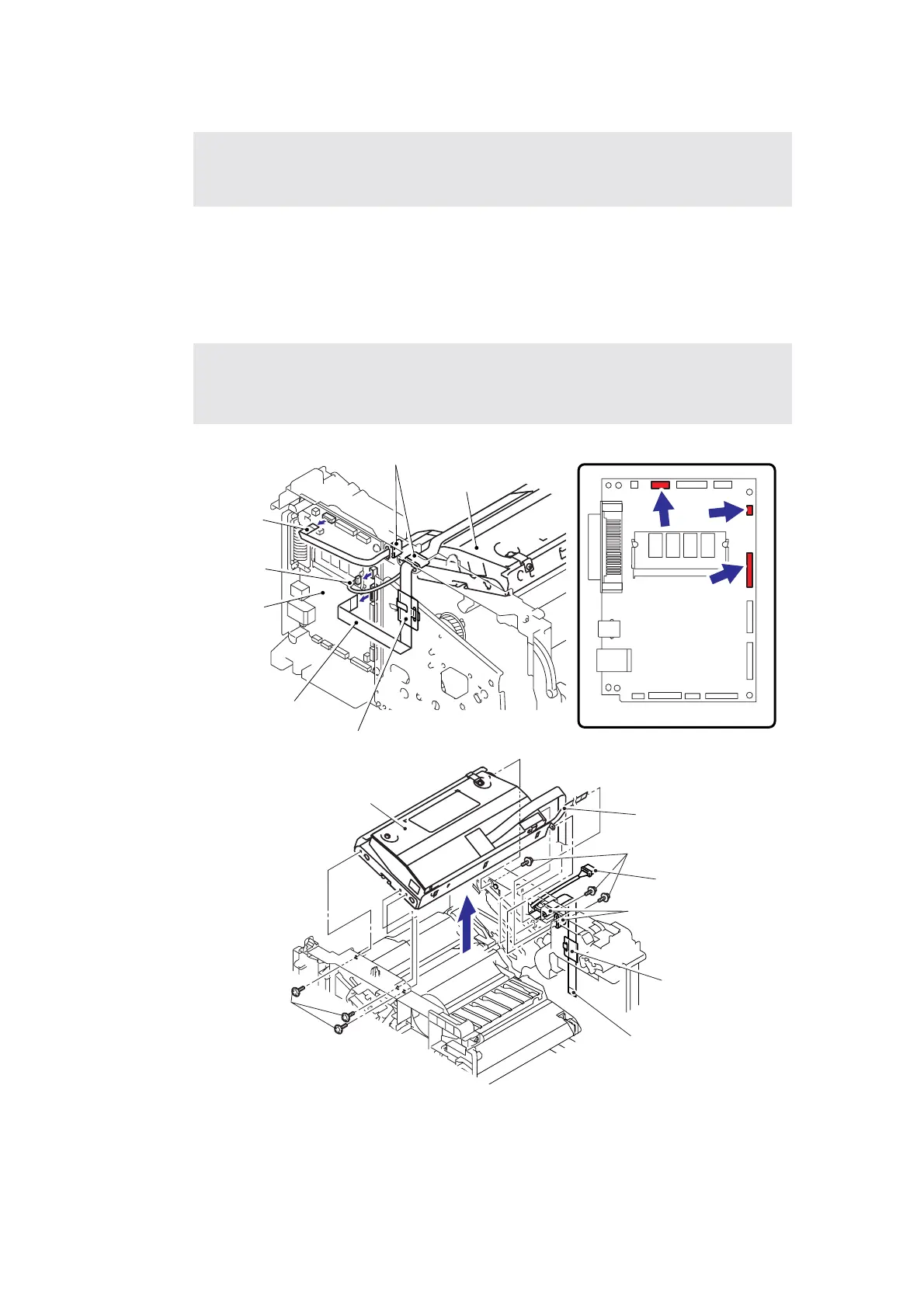

Fig. 4-17
Note :
• After disconnecting flat cable(s), check that each cable is not damaged at its end or
short-circuited.
Note :
• Be careful not to lose the Protective film attached on the flat cable.
• Do not touch the Laser scanner window directly.
Taptite, cup S M3x6
Polygon motor connector
(Flat cable)
LD harness connector
(Flat cable)
Wireless PCB harness
core
Protective film
Laser unit
Taptite, cup S M3x6
Core
LD harness connector
(Flat cable)
Protective film
<Main PCB>
Main PCB
Polygon motor connecter
(Flat cable)
Laser unit
Wireless PCB harness
