Brother HL-5350DN Service Manual

5-90
Confidential
8.37 Roller Holder ASSY

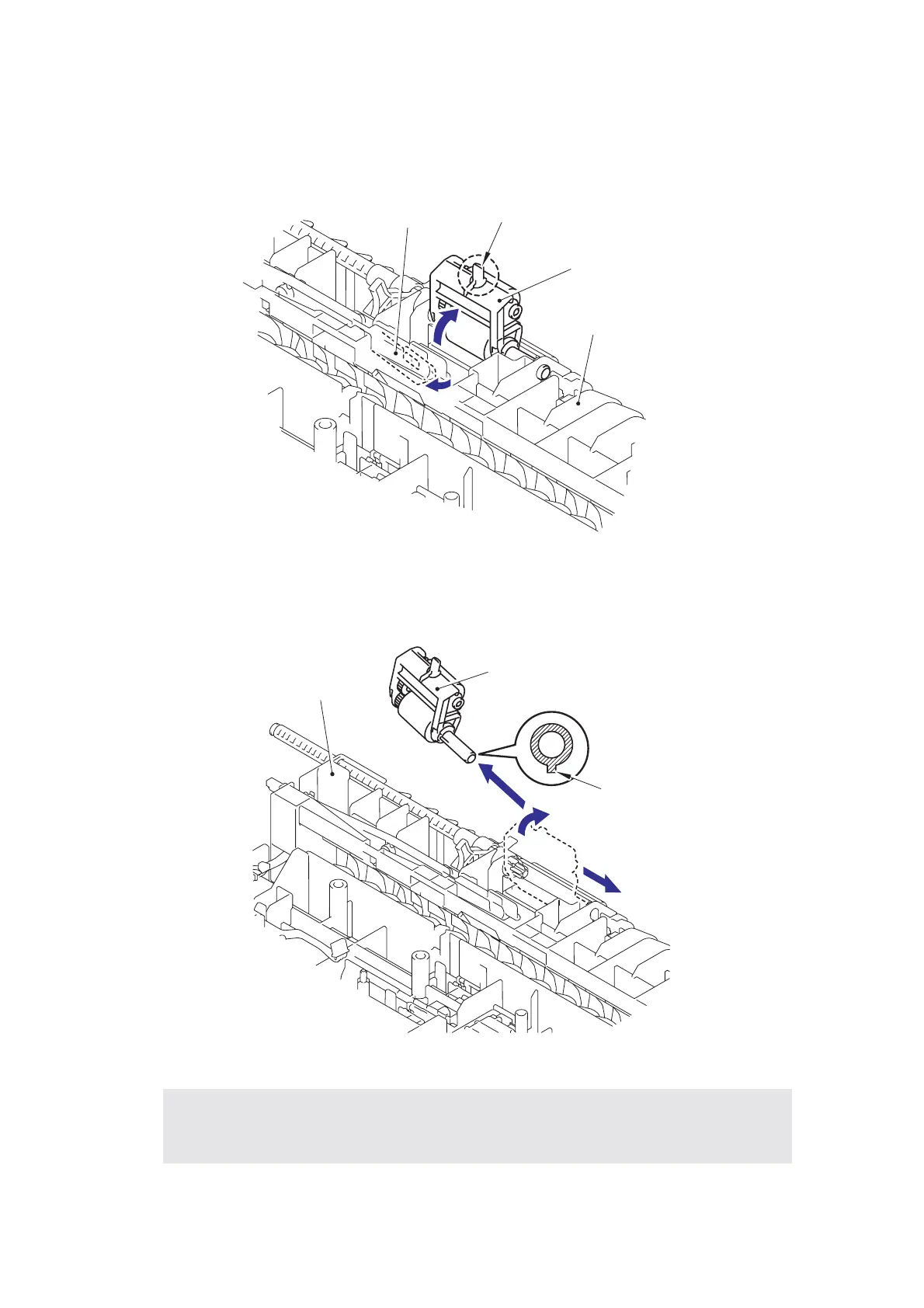

(1) Push the Lift arm to the direction of 1a and pull out the pin of the Roller holder ASSY.
Then, turn the Roller holder ASSY to the direction of 1b.
Fig. 5-128
(2) Slide the Roller holder ASSY to the direction of 2a. Then, lift up the gear side of the
Roller holder ASSY to the direction of 2b and pull it out to the direction of 2c to remove.
Fig. 5-129
Assembling Note:
• When assembling the roller holder ASSY, align the section "A" on the shaft of the roller
holder ASSY with the hole on the paper feed frame.
Roller holder ASSY
1a
1b
Lift arm
Pin
Paper feed frame
Roller holder ASSY
"A"
2b
2a
2c
Paper feed frame

Brother HL-5350DN Specifications

General

Color	No
N-up printing	4, 9, 16, 25
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Internal memory	32 MB
Processor model	NEC VR5500
Maximum internal memory	544 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	54 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 105 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Supported network protocols (IPv4)	IPv4: ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD responder, WebServicesPrint, IPv6: NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMPv6, LLTD responder, WebServicesPrint
Networking features	10/100 Base-TX
Power consumption (active)	675 W
Compatible operating systems	Windows: Vista, 2000 Prof., XP Home Edition, XP Prof. Edition (32 & 62 bits), Server 2003 (32 & 64 bits), Server 2008. MacIntosh: Mac OS X 10.3.9 + Linux
Power consumption (standby)	75 W
Power consumption (PowerSave)	6 W
Package weight	11500 g

Weight and Dimensions

Dimensions (WxDxH)	371 x 384 x 246 mm
