1.2 Part names

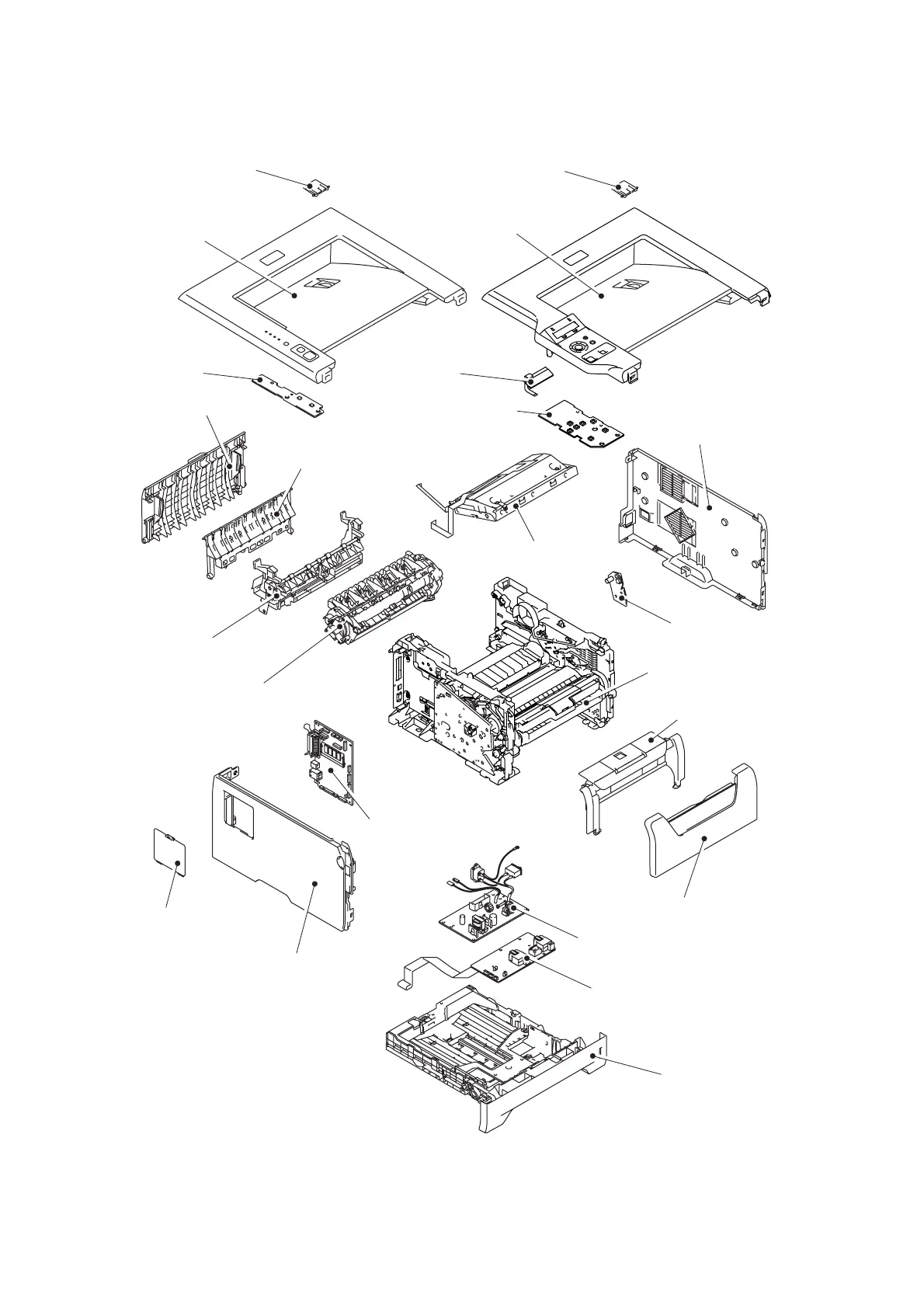

Fig. 3-1
Top Cover
Panel PCB
Back Cover
Outer Chute ASSY
Rear Chute ASSY
Fuser Unit
Main PCB
Access Cover
Side Cover L
Side Cover R
Laser Unit
Support Flap 1
Top Cover
LCD
LCD Panel PCB
Support Flap 1
Toner LED PCB ASSY
Paper Tray
High-voltage PS PCB
PS PCB
MP Tray Cover ASSY
Process Cover ASSY
Frame Unit
