Brother HL-5350DN Service Manual

1-10
Confidential
2.6.2 Media specifications
*3
Up to 10 sheets.
*4
Up to 3 sheets.
*5
Legal is not available in some regions outside the USA and Canada.

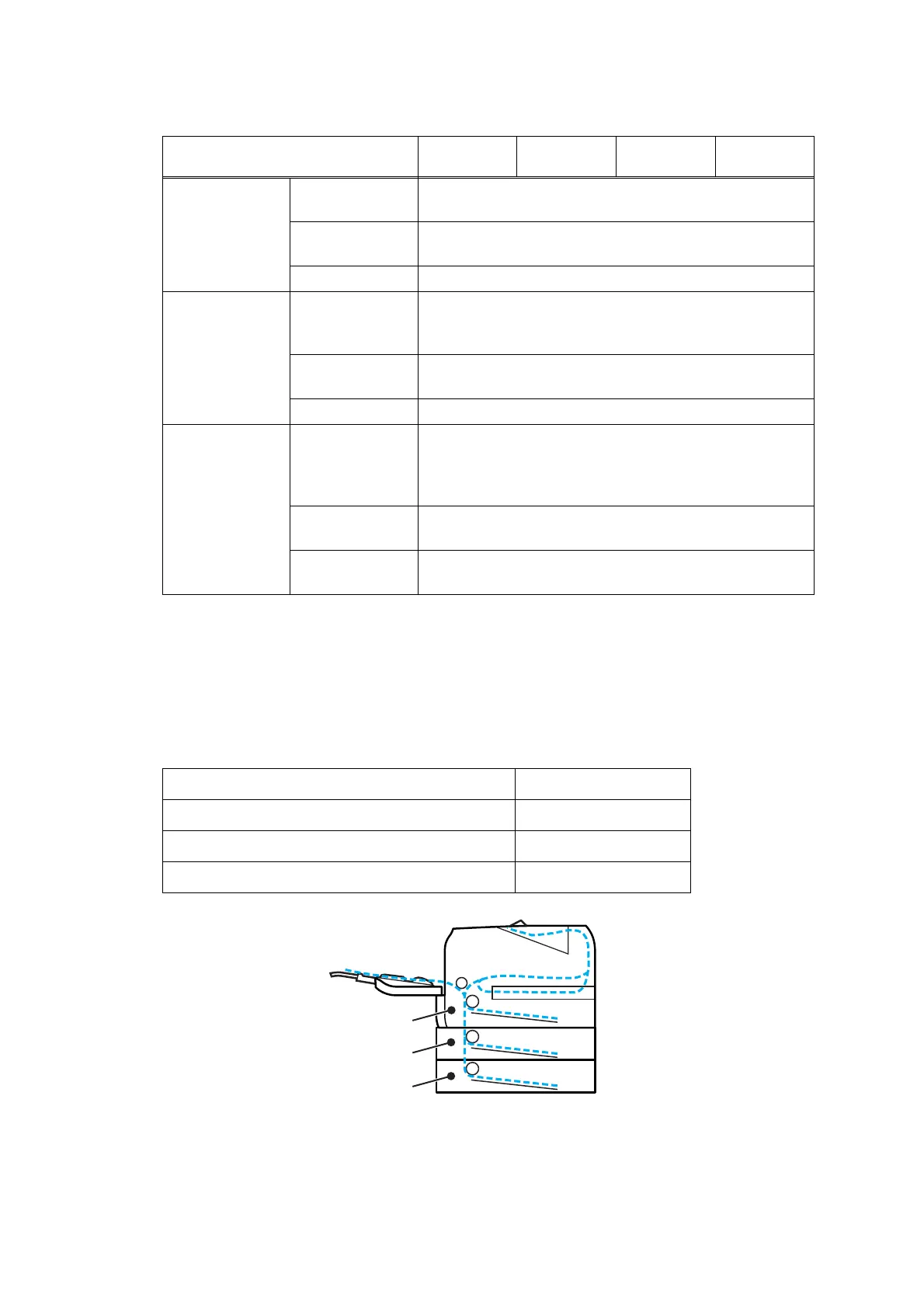

2.6.3 Type and size of paper
The printer loads paper from the installed paper tray or the multi-purpose tray. The name s
for the paper trays in the printer driver as follows;
Fig. 1-2
Model HL-5340D
HL-5350DN
HL-5350DNLT
HL-5370DW
HL-5370DWT
HL-5380DN
Media type Paper tray
(Standard)
Plain paper, Bond paper, Recycled paper,
Transparencies
*3
, Thin paper
Multi-purpose
tray
Plain paper, Thick paper, Bond paper, Recycled paper,
Envelope
*4
, Label, Transparencies
*3
, Thin paper
Optional tray Plain paper, Bond paper, Recycled paper, Thin paper
Media weight Paper tray
(Standard/
Option)
60 to 105 g/m
2
(16 to 28 lb)
Multi-purpose
tray
60 to 163 g/m
2
(16 to 43 lb)
Duplex 60 to 105 g/m
2
(16 to 28 lb)
Media size Paper tray
(Standard/
Option)
U.S.A: A4, Letter, B5 (ISO), A5, A5 (Long Edge), B6
(ISO), Legal
*4
, Folio, A6, Exective
Europe: A4, Letter, B5 (ISO), A5, A5 (Long Edge), B6
(ISO), A6, Executive
Multi-purpose
tray
Width: 69.8 to 216 mm (2.75 to 8.50 in.)
Length: 116 to 406.4 mm (4.57 to 16 in.)
Duplex U.S.A/Canada: Letter, Legal, Folio
Europe: A4
Paper tray (T1) Tray 1
Multi-purpose tray MP tray
Optional lower tray unit Tray 2/Tray 3
Duplex unit for automatic duplex printing DX
Tray1
Tray2
Tray3

Brother HL-5350DN Specifications

General

Color	No
N-up printing	4, 9, 16, 25
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Internal memory	32 MB
Processor model	NEC VR5500
Maximum internal memory	544 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	54 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 105 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Supported network protocols (IPv4)	IPv4: ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD responder, WebServicesPrint, IPv6: NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMPv6, LLTD responder, WebServicesPrint
Networking features	10/100 Base-TX
Power consumption (active)	675 W
Compatible operating systems	Windows: Vista, 2000 Prof., XP Home Edition, XP Prof. Edition (32 & 62 bits), Server 2003 (32 & 64 bits), Server 2008. MacIntosh: Mac OS X 10.3.9 + Linux
Power consumption (standby)	75 W
Power consumption (PowerSave)	6 W
Package weight	11500 g

Weight and Dimensions

Dimensions (WxDxH)	371 x 384 x 246 mm
