8.38 PE Actuator/Edge Actuator/Edge Actuator Spring

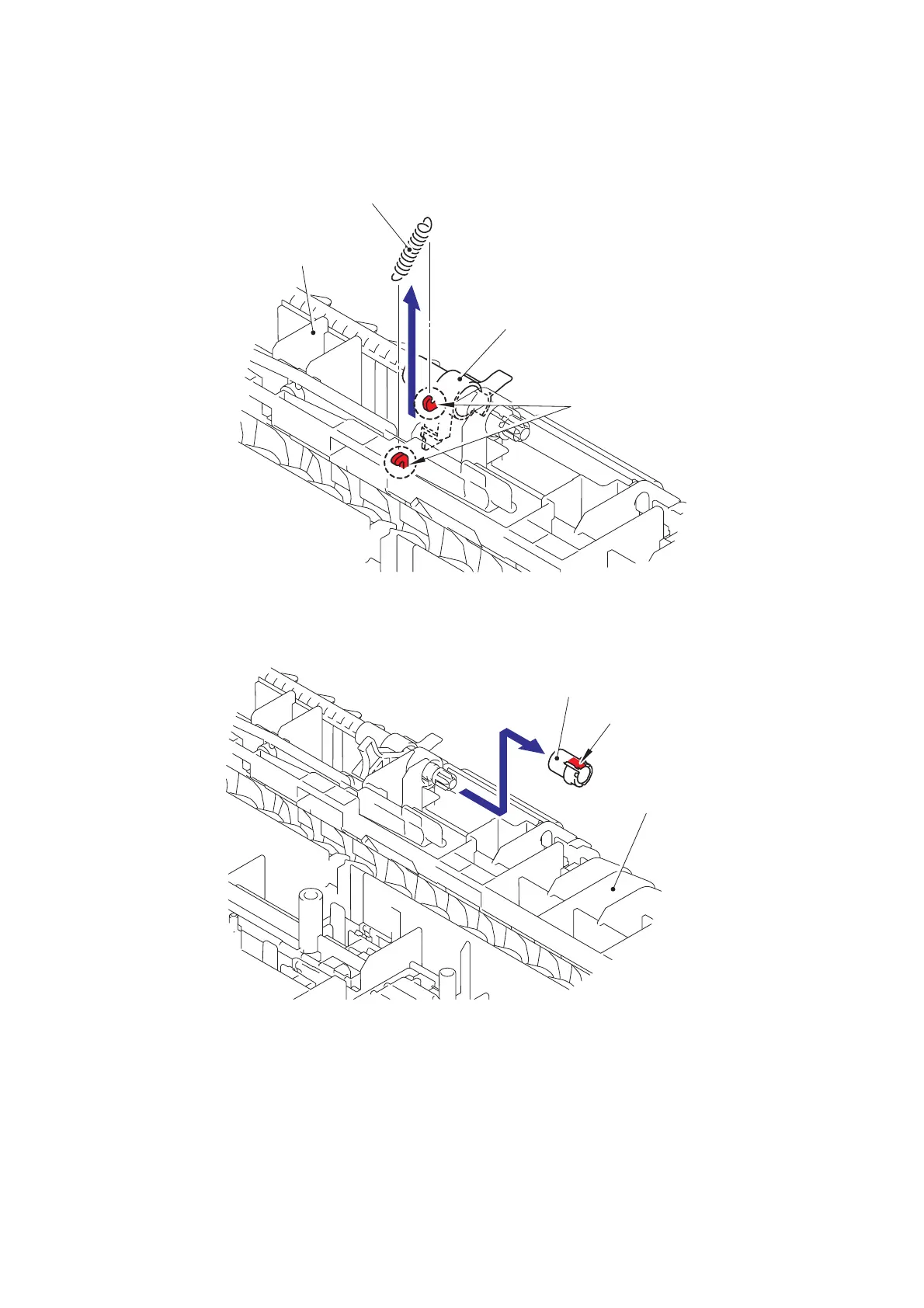

(1) Remove the Edge actuator spring.
Fig. 5-130
(2) Release the Hook and remove the Separation R shaft bearing.
Fig. 5-131
Hooks
Edge actuator
Edge actuator spring
Paper feed frame
Hook
Paper feed frame
Separation R shaft bearing
